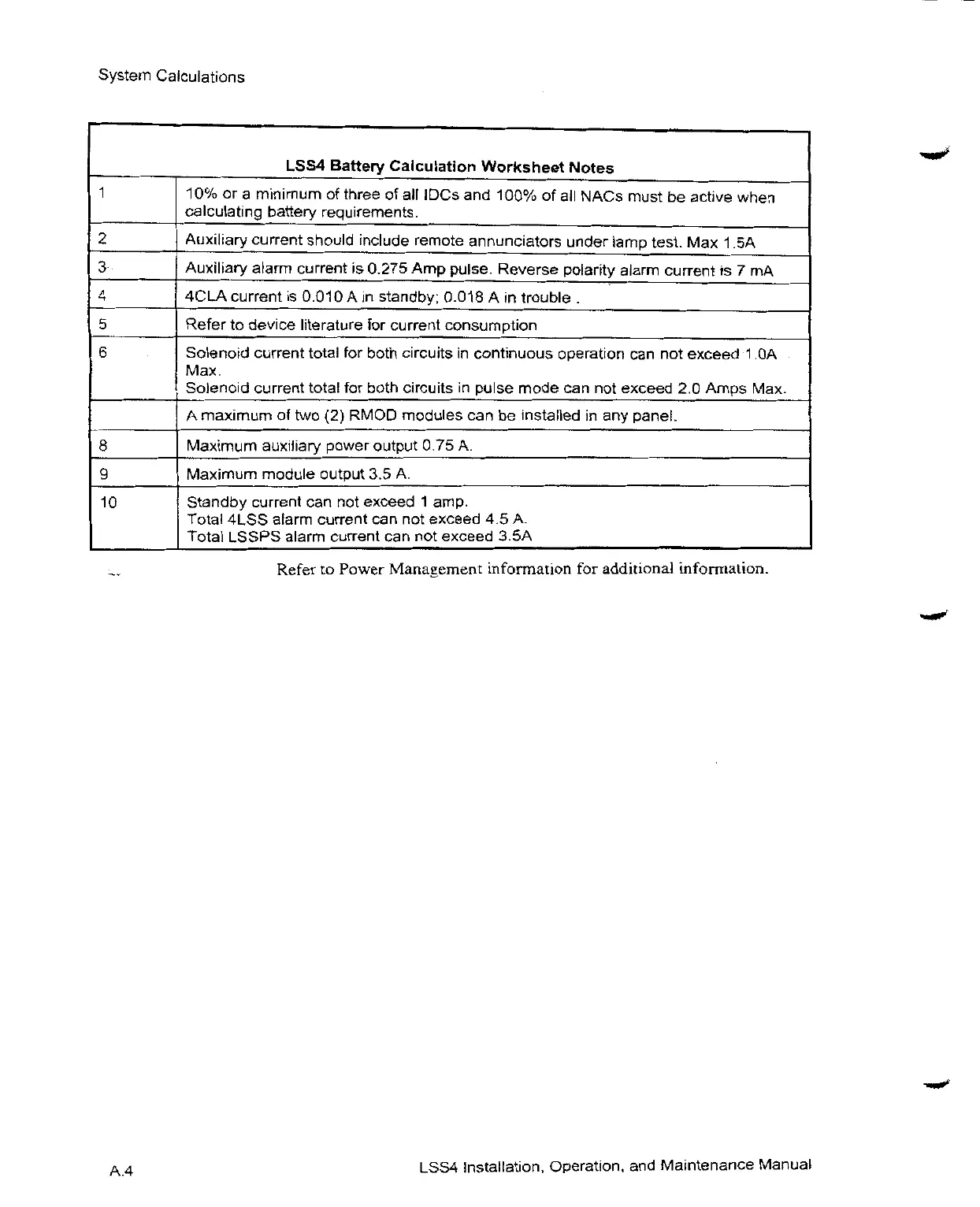

A.4
LSS4
Battery
Calculation
Worksheet
Notes
10%ora
minimumof
threeof
all
lDCsand
100%of
all
NACs
mustbe
active
when
calculating
bakery
requirements.
Auxiliary
current
should
include
remote
annunciators
under
lamp
test. Max
1.5A
Auxiliary
alarm
currentis
0.275Amp
pulse.
Reverse
polarity
alarm
currentis7 mA
4CLA
current
is
0.010A
in
standby;
0.018A in
trouble.
Referto
device
literaturefor
current
consumption
Solenoid
current
totalfor
both
circuits
in
continuous
operationcannot
exceed
1.0A
Max.
Solenoid
current
totalfor
both
circuits
in
pulse
modecannot
exceed2.0
Amps
Max.
A
maximumoftwo(2)
RMOD
modulescanbe
installed
in any
panel.
Maximum
auxiliary
power
output
0.75A.
Maximum
module
output3.5A.
10
Standby
currentcan not
exceed1
amp.
Total
4LSS
alarm
currentcan not
esceed4.5A.
Total
LSSPS
alarm
currentcan not
exceed
3.5A
Referto
Power
Management
informationfor
additional
information.
LSS4
Installation,
Operation,and
Maintenance
