System Installation
2.32

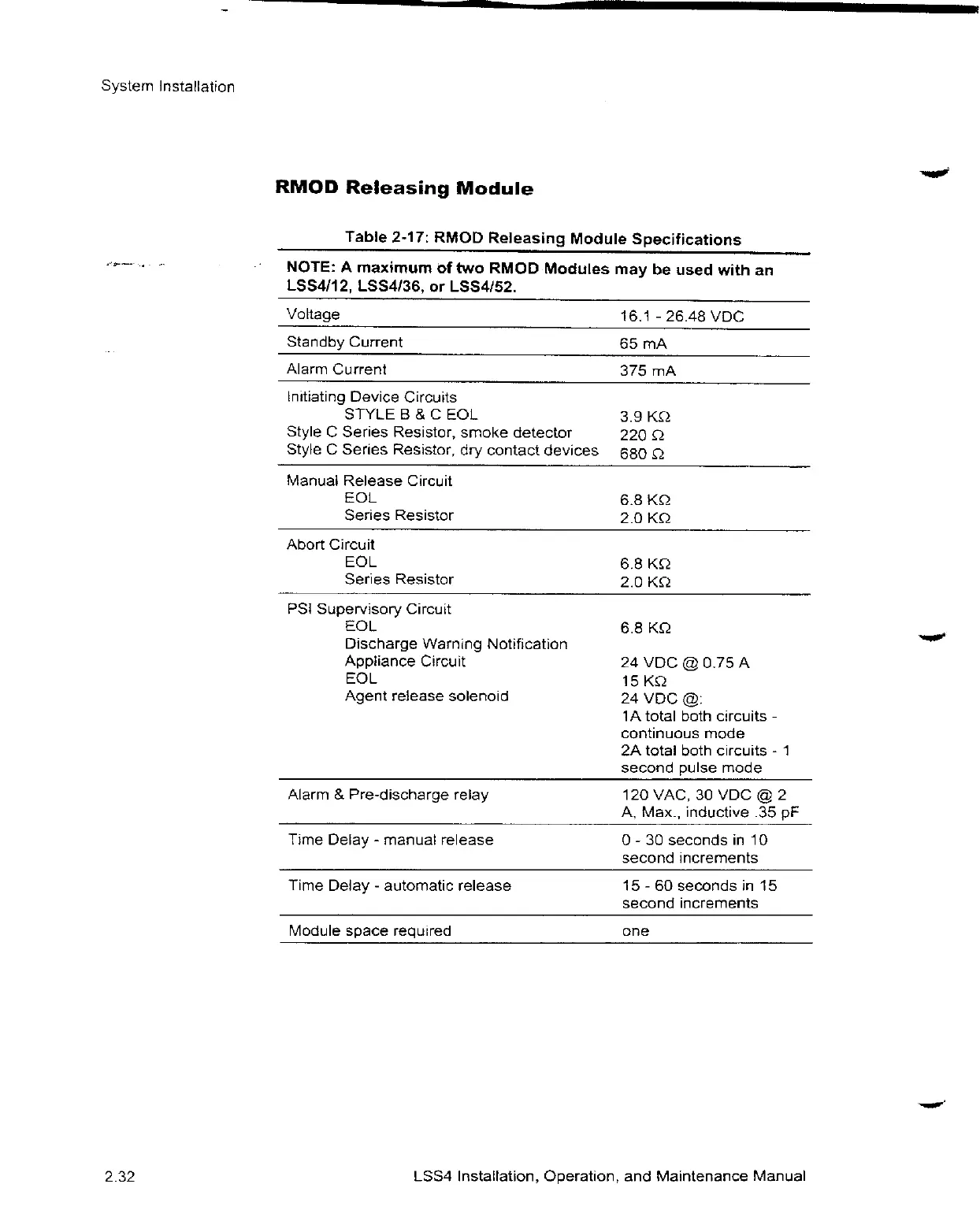

RMOD Releasing Module
Table 2-17: RMOD Releasing Module Specifications
' NOTE:A maximumoftwo RMOD Modulesmaybe used withan
LSS4/12, LSS4I36,orLSS4/52.
Voltage
Standby Current
Alarm Current
Initiating Device Circuits
STYLEB&CEOL
StyleC Series Resistor, smoke detector
StyleC Series Resistor,dry contact devices
Manual Release Circuit
EOL
Series Resistor
Abort Circuit
EOL
Series Resistor
PSI Supervisory Circuit
EOL
Discharge Warning Notification
Appliance Circuit
EOL
Agent release solenoid
Alarm& Pre-discharge relay
Time Delay- manual release
Time Delay - automatic release
Module space required
16.1 - 26.48VDC
65mA
375mA
3.9KB
220U
680U
6.8KO
2.0KC
6.8KO
2.0KB
24VDC @ 0.75A
15KU
24VDC@:
1A total both circuits-
continuous mode
2A total both circuits - 1
second pulse mode
120 VAC,30VDC@2
A, Max., inductive.35pF
0 - 30 seconds in 10
second increments
15-60 secondsin15
second increments
one
