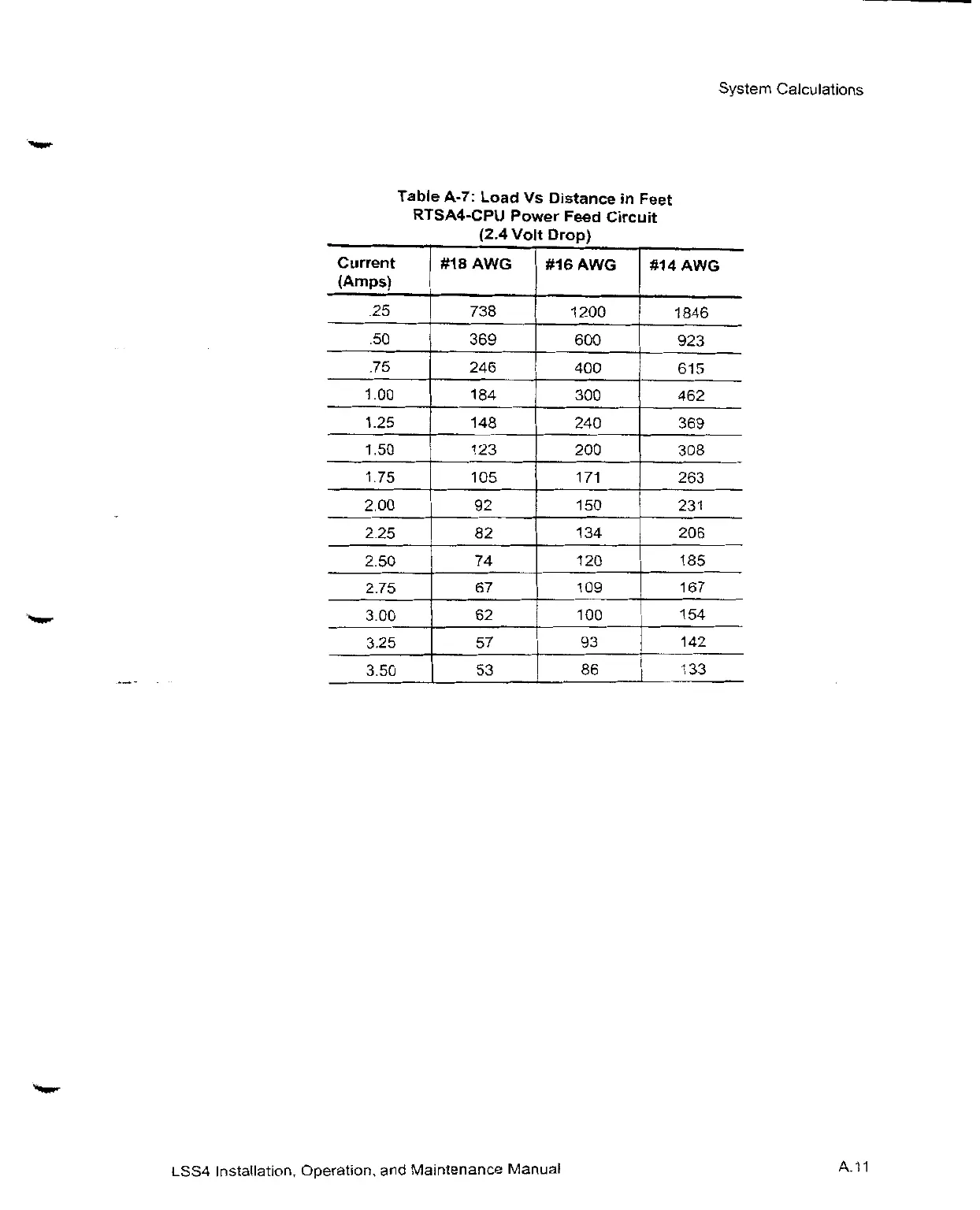

Table
A-7:
LoadVs
Distancein
Feet
RTSA4-CPU
Power
Feed
Circuit
(2.4
Volt
Drop)
Current #18AWG #16AWG s14AWG
.25 738
.50
i 369
.75 246
1.00 184
1.25 148
1.50 123
1.75 105
2.00 92
2.25 82
2.50 74
2.75 67
3.00 62
3.25 57
3.50 53
LSS4
Installation,
Operation.and
Maintenance
Manual
1200 1846
600 923
400 615
300 462
240 369
200 308
171 263
150 231
134 206
120 185
109 167
100 154
93 142
86 t 133
