System
Installation
BacsBox
Dimensions
(HWD)
OveralJ
Oimensions
(HWD)
Capacité’
2.6

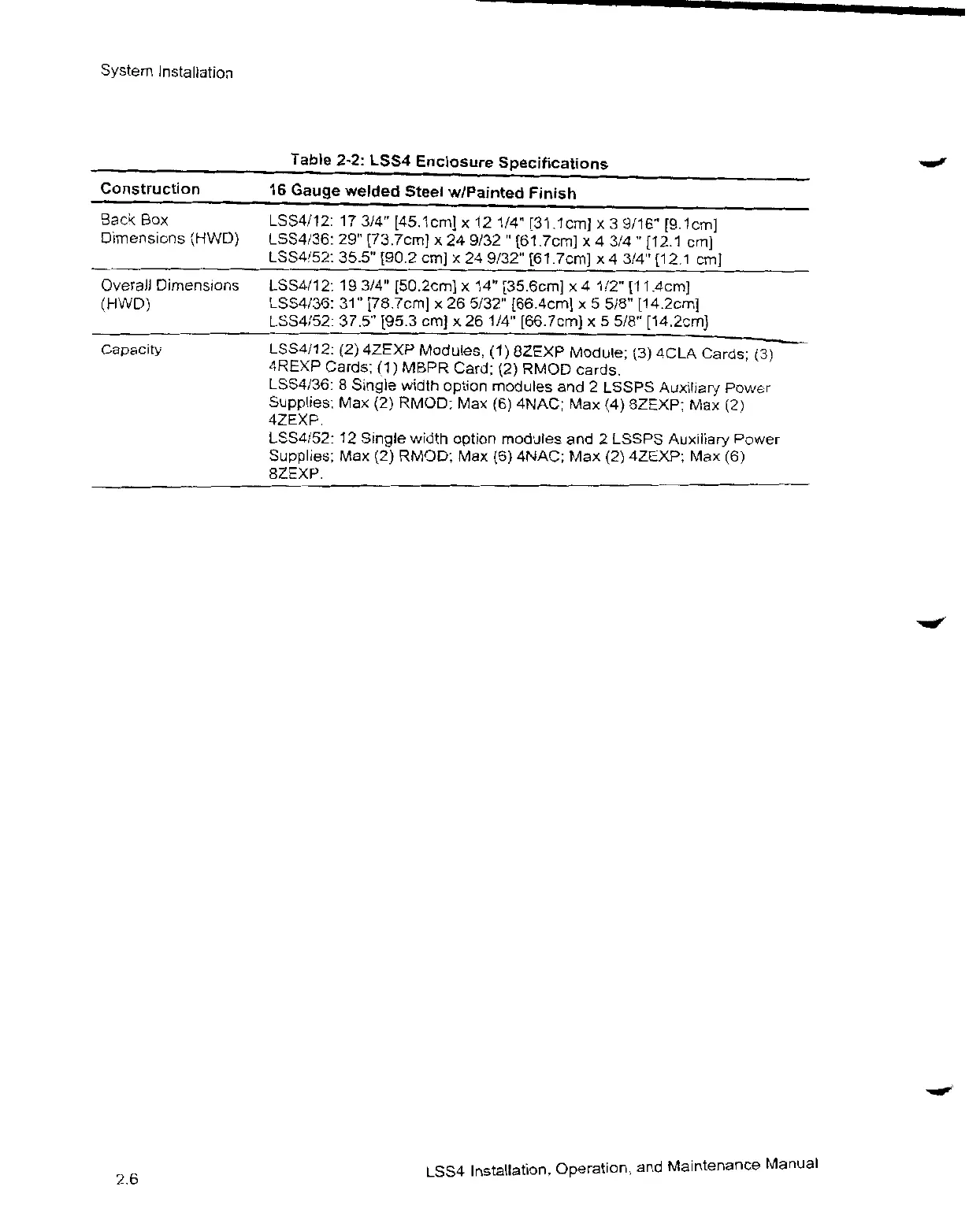

Table
2-2:
LSS4
Enclosure
Specifications
1G
Gauge
welded
Steel
w/Painted
Finish
LSS4/12:17
3/4”
[45.1cmjx 12
1/4”
[31.1cm]x3
9/16"
[9.1cm]
LSS4/36:29"
t73.7cm]x 24
9/32" [61.7cm]x4 3/4"
[12.1cm]
LSS4/52:
35.5"
|90.2 cm]x 24
9/32"
[61.7cm]x4
3/4"
[12.1cm]
LSS4/12:19
3/4"
[50.2cm]x 14"
[35.6cm]x4
1/2”
|11.4cm]
LSS4/36:31"[78
7cmjx 26
5/32"
(66.4cm]x5
5/8"
[14.2cmj
LSS4/52:
37.5"
[95.3cm]x 26
1/4"
[66.7cm)x5
5/8"
[14.2cmj
LSS4/12.(2)
4ZEXP
Modules,(1)
8ZEXP
Module;(3)
4CLA
Cards;(3)
4
REXP
Cards;(1)
MBPR
Card;(2)
RMOD
cards.
LSS4/36:8
Single
width
option
modulesand2
LSSPS
Auxiliary
Power
Supplies;Max (2)
RMOD;Max(6)
4NAC;Max(4)
8ZEXF’;Max(2)
4ZEXP
.
LSS4/52:12
Single
width
option
modulesand2
LSSPS
Auxiliary
Power
Supplies;Max (2)
RMOO;Max(6)
4NAC;Max(2)
4ZEXP';Max(6)
8ZEXP.
