System Installation
2.30

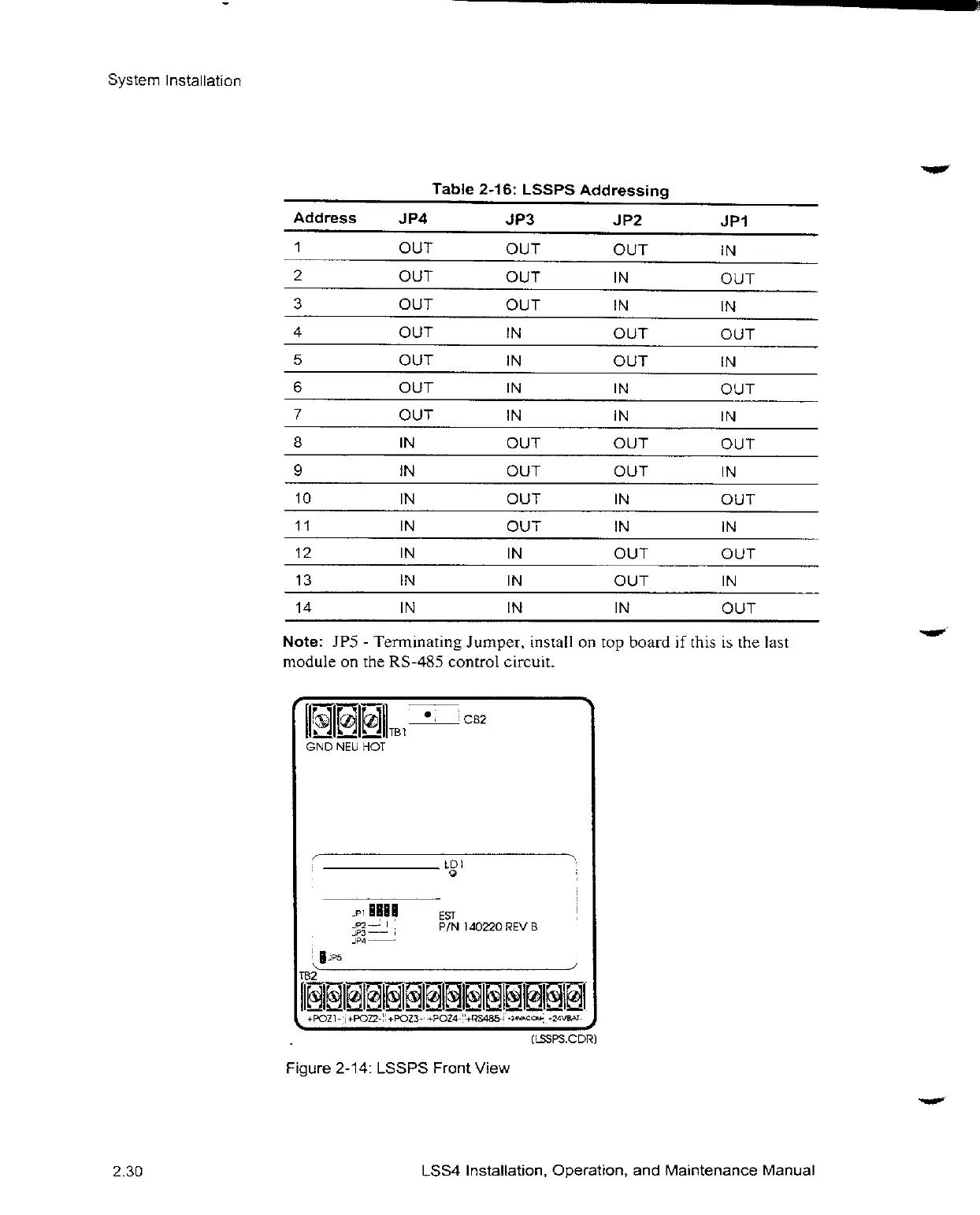

Table 2-16: LSSPS Addressing
AddressJP4
1 OUT
2 OUT
3 OUT
4 OUT
5 OUT
6 OUT
7 OUT
8 IN
9 IN
10 IN
11 IN
12 IN
13 IN
14 IN
JP3 JP2
OUT OUT
OUT IN
OUT IN
IN OUT
IN OUT
IN IN
IN IN
OUT OUT
OUT OUT
OUT IN
OUT IN
IN OUT
IN OUT
IN IN
JP1
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
IN
OUT
Note:JP5 - Terminating Jumper, install on top board if this is the last
moduleonthe RS-485 control circuit.
GND NSU HOT
LD 1
" ’ CB2
Figure 2-14: LSSPS Front View
