Panel
Configura(ion
Instructions
for
usingthe
LSS4
Worksheets
3.16

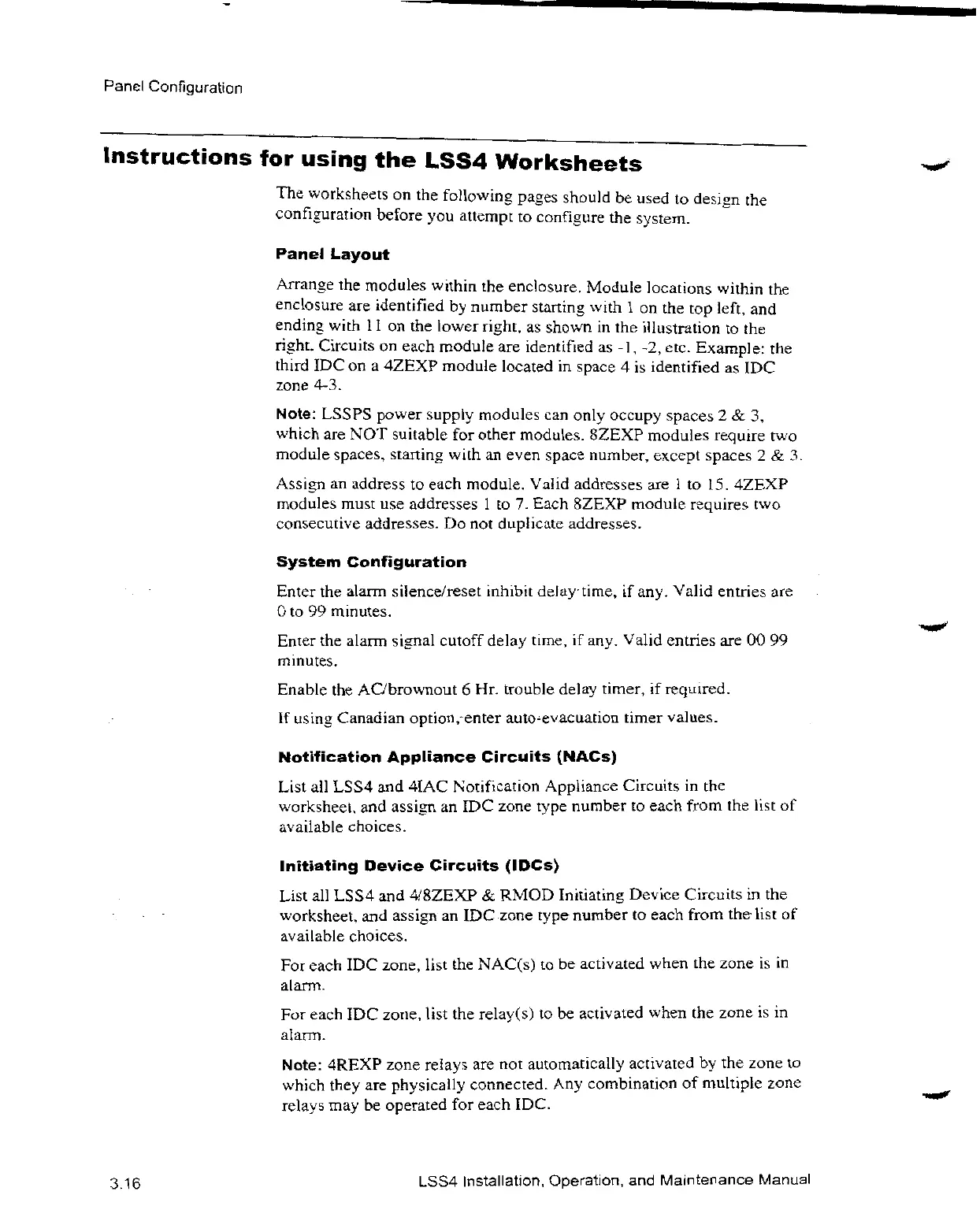

The
worksheetsonthe
following
pages
shouldbe
usedto
configuration
beforeyou
attemptto
configurethe
system.
Panel
Layout
designthe
Arran•e
the
modules
withinthe
enclosure.
Module
locations
within
the
enclosure
are
identifiedby
number
starting
with1 onthetop
left,
and
ending
with11onthe
lower
riehi.as
showninthe
illustrationto
the
ris
ht.
Circuitson
each
moduleare
identifiedas
-1,
-2,
etc. Ex
ampl
e: the
thirdIDC ona
4ZEXP
module
locatedin
space4
is
identifiedas IDC
zone
4-3.
Note:LSSPS
power
supply
modulescan
only
occupy
spaces2 & 3,
whichareNOT
suitablefor
other
modules.
8ZEXP
modules
requiretwo
module
spaces,
starting
withan
even
space
number,
exceptspaces2 &
3.
Assignan
addressto
each
module.
Valid
addressesare1 to15.
4ZEXP
modules
mustuse
addresses1 to7.
Each8
ZEXP
module
reQuirestwo
consecutive
addresses.Do not
duplicateaddresses.
System
Configuration
Enterthe
alarms
ilence/reset
inhibit
delay
time,
if
any.
Valid
entriesare
0 to99
minutes.
Enterthe
alarms
ignal
cutoff
delay
time,
if
any.
Valid
entriesare 00 99
minutes.
Enablethe
AC/brownout6 Hr.
trouble
delay
timer,
if
required.
Ifusink
Canadian
option,-enter
auto-evacuation
timer
values.
Notification
Appliance
Circuits
(NACs)
List
all
LSS4and4IAC
Notification
Appliance
Circuitsinthe
worksheet,and
assi_nan IDC
zone
type
numberto
each
fromthe
list of
ax
ailable
choices.
Initiating
Device
Circuits
(I
DCs)
List
all
LSS4and
4/8ZEXP&
RMOD
Initiating
Device
Circuitsinthe
worksheet,and
assignan IDC
.zone
type
numberto
each
fromthe
list of
available
choices.
For
eachIDC
zone,
list the
NAC(s)tobe
activated
whenthe
zone
is in
alarm.
For
eachIDC
zone,
list the
relay(s)to be
activated
whenthe
zone
is in
alarm.
Note:
4REXP
zone
relaysarenot
automatically
activatedby the
zoneto
v•'hich
theyare
physically
connected.Any
combinationof
multiple
zone
relaysmay be
operatedfor
each
IDC.
LSS4
Installation,
Operation,and
Maintenance
Manual
