Estella 348SM30 - PART NUMBERS; CIRCUIT DIAGRAM

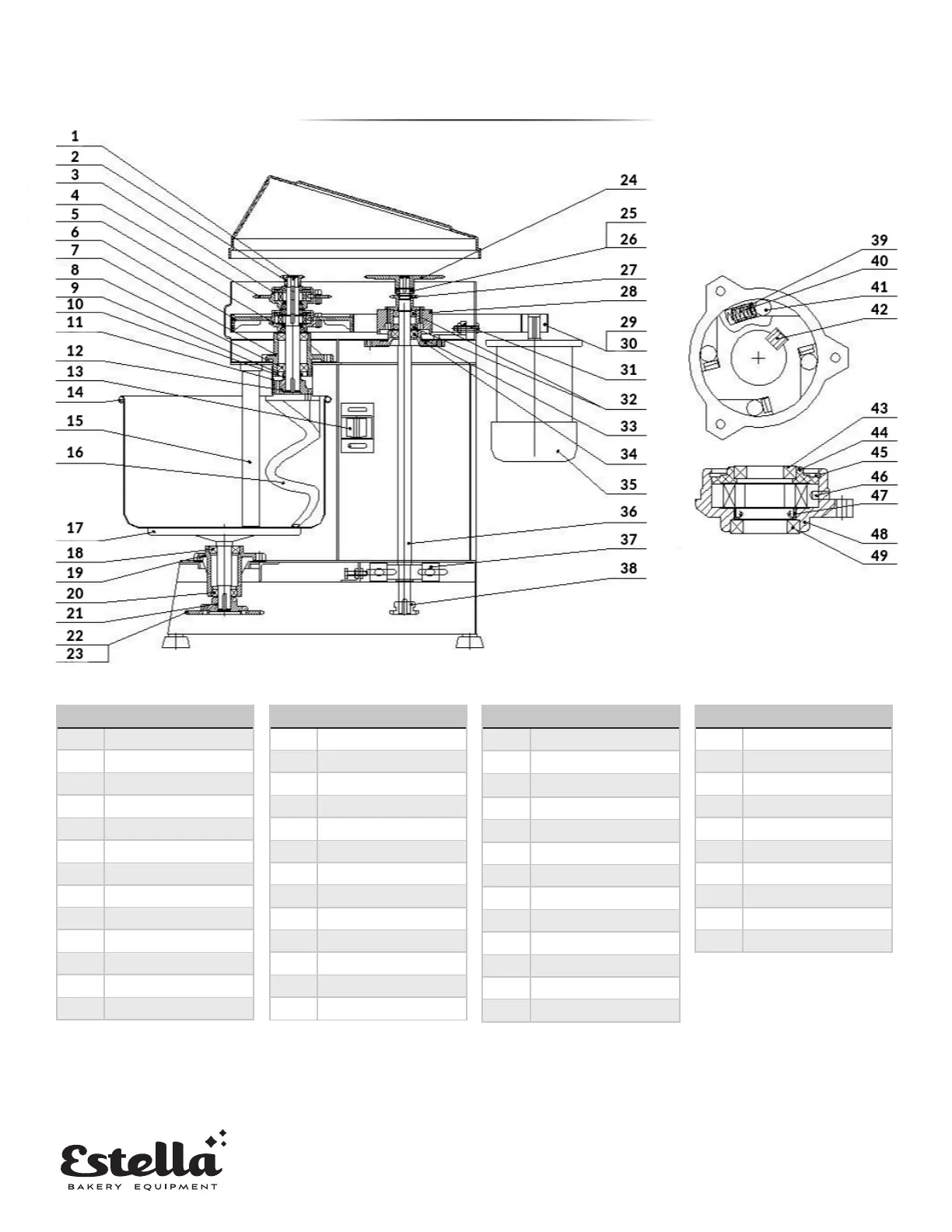

PARTS DIAGRAM
NO. DESCRIPTION
1 Principal Axis
2 Minor Sprocket
3 Upper Clutch Assembly
4 Main Biggish Sprocket
5 Lower Clutch Assembly
6 Big belt wheel
7 Up bearing pedestal
8 Bearing 206
9 Oil seal
10 Oil seal sleeve
11 Oil cup
12 Dough Mixing Flange
13 Guide wheel
NO. DESCRIPTION
14 Dough mixing barrel
15 Poling
16 Dough hook
17 Barrel Chassis
18 Bearing 206
19 Bearing Support
20 Bearing 205
21 Sprocket sprcket
22 Lower biggish sprocket
23 Chain
24 Middle biggish sprocket
25 Bearing
26 bearing pad
NO. DESCRIPTION
27 Middle Minor sprocket
28 Middle belt wheel
29 Small belt wheel
30 Strap
31 Adjustment pull-rod
32 Bearing
33 Bearing
34 Bearing pedestal
35 Motor (110V60HZ)
36 Major axis
37 Bearing UCP205
38 Minor sprocket
39 Tip cover
NO. DESCRIPTION
40 Spring
41 Roller
42 Key
43 bearing
44 Clutch cover
45 Snap ring
46 Driving pin
47 Oil seal
48 Clutch support
49 Bearing
UPPER CLUTCH ASSEMBLY
LOWER CLUTCH ASSEMBLY
6.
