The ES590 ETK, CAN and K-Line Module is a powerful calibration device which
can be used universally for ECU calibration. The 10/100 MBit Ethernet inter-
face to the host PC makes high data transfer rates possible between the ECU
on the one hand and the calibration software on the other.

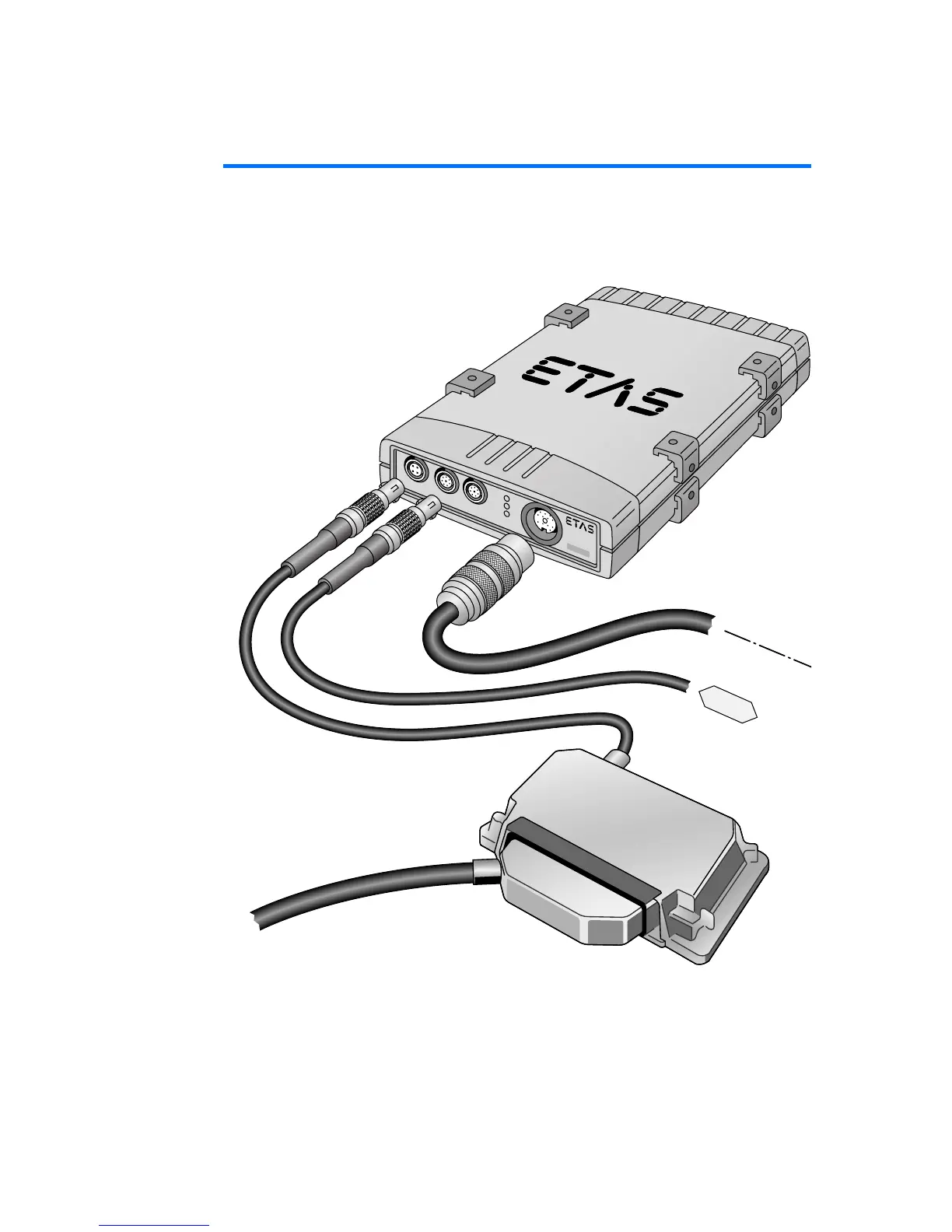

Fig. 1-1 ES590 Module
One K-Line and two CAN interfaces are available in addition to the ETK inter-
face for the connection to the ECU. The CAN interface can be used for mea-
suring devices such as IPETRONIK modules. Additional measuring devices, such
