3. Four knockouts are provided on the right side of the enclosure. Install conduit fittings
(provided by others) to the knockout locations.
Wire Terminations

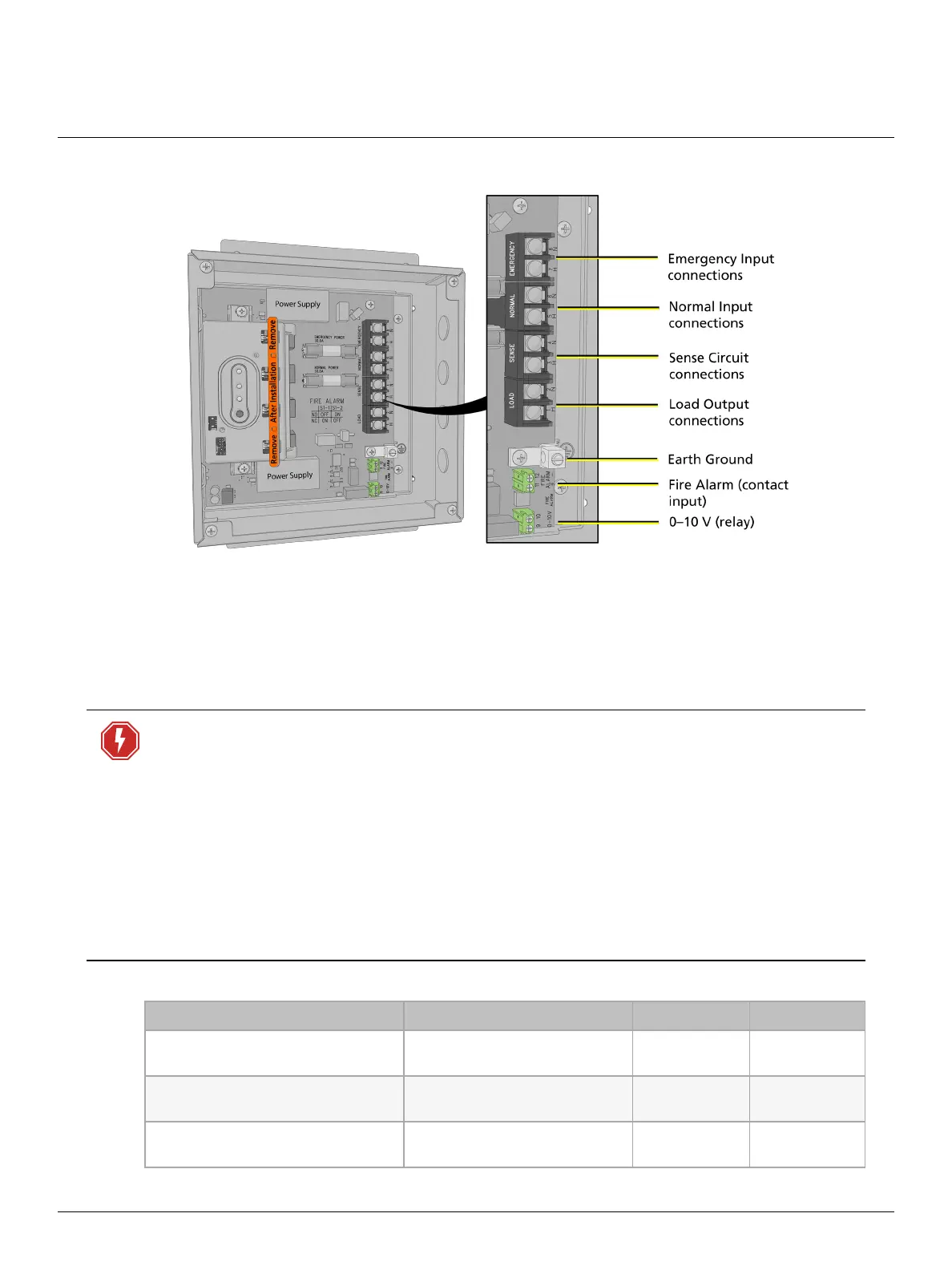

The SC1008 can accommodate installations that require a
Simple Transfer
of normal and emergency
power or more complex installations, such as those that utilize an
ETC Control Panel
or a
Dimmed or
Switched Load
. See the related instruction for your installation type. Additionally, the unit can
accommodate installations that utilize
0–10V Auxiliary Output
control and
Fire Alarm Input
for use
with either normally open or normally closed operation.
WARNING: RISK OF DEATH BY ELECTRIC SHOCK! Failure to disconnect all
power to the panel before working inside could result in serious injury or death.
AVERTISSEMENT : RISQUE D'ELECTROCUTION! Travailler à l’intérieur du
panneau sans avoir déconnecté le courant peut entrainer des blessures graves,
voire mortelles.
Before you begin pulling and terminating wire to the SC1008 BCELTS enclosure,
make sure the main circuit breaker cabinet or other readily accessible input
power disconnect device for both normal and emergency power input is locked
out and tagged out. Enclosures installed without an accessible input power
disconnect device cannot be serviced or operated safely. Follow all local codes
and restrictions. When the disconnect device is not located near the installed
enclosure, the disconnect must allow for proper lockout/tagout.
Terminal Wire Range Strip Length Torque Rating
Line / Load / Terminals 1–8
10–18 AWG
(copper wire solid/stranded)
3/8” (10mm) 10 in–lbs
Control (signal) / Terminals 9–12
10–20 AWG
(copper wire stranded only)
1/4” (6mm) 4 in–lbs
Earth Ground
6–14 AWG
(copper wire solid/stranded)
3/8” (10mm) 35 in–lbs
Wire and Terminal Specifications
