. ⑽ NOISE signal: when the symbol flashes, in the measurement
of grounding resistance at a greater interference current in
the loop. At this time it cannot guarantee accuracy of the
measurements.

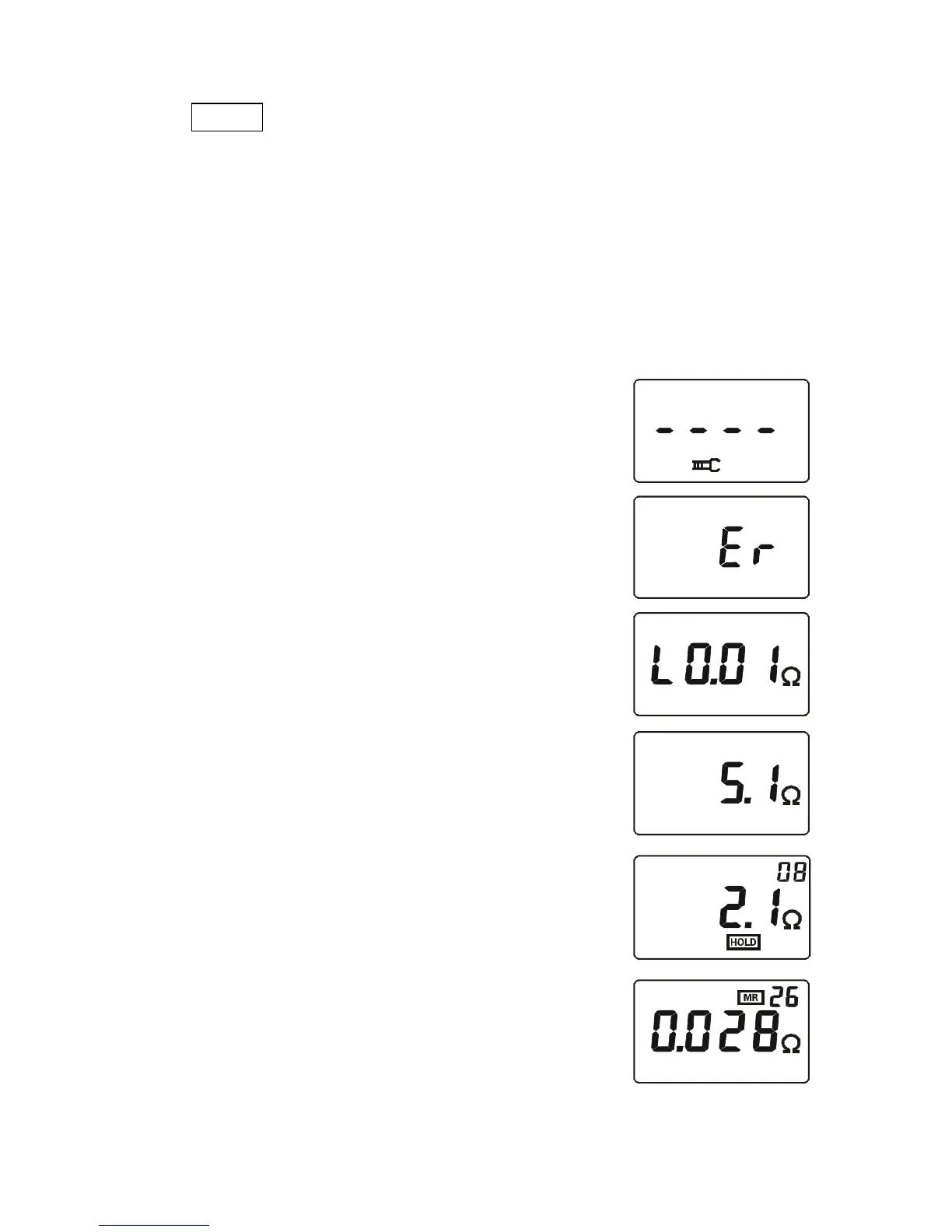

3. Examples Illustrated
Note: "*" is limited to C+.
.⑴ ---Jaw is in open state, and cannot
measure
⑵. ---Boot error instructions Er (Error)
⑶. ---Measured loop resistance is less
than 0.01Ω
.⑷ ---Measured loop resistance is 5.1Ω
.⑸ ---Measured loop resistance is 2.1Ω
---Lock the current measurement
value: 2.1Ω
---Auto storage as 08 set data
. ⑹ ---Access to the stored data of Unit No.26
---Measured loop resistance is 0.028Ω
* .⑺ ---Alarm function activated, the measured current exceeded
