ETC Service Note
Congo™ jr LCD Replacement
Congo™ jr LCD Replacement Page 11 Electronic Theatre Controls, Inc.

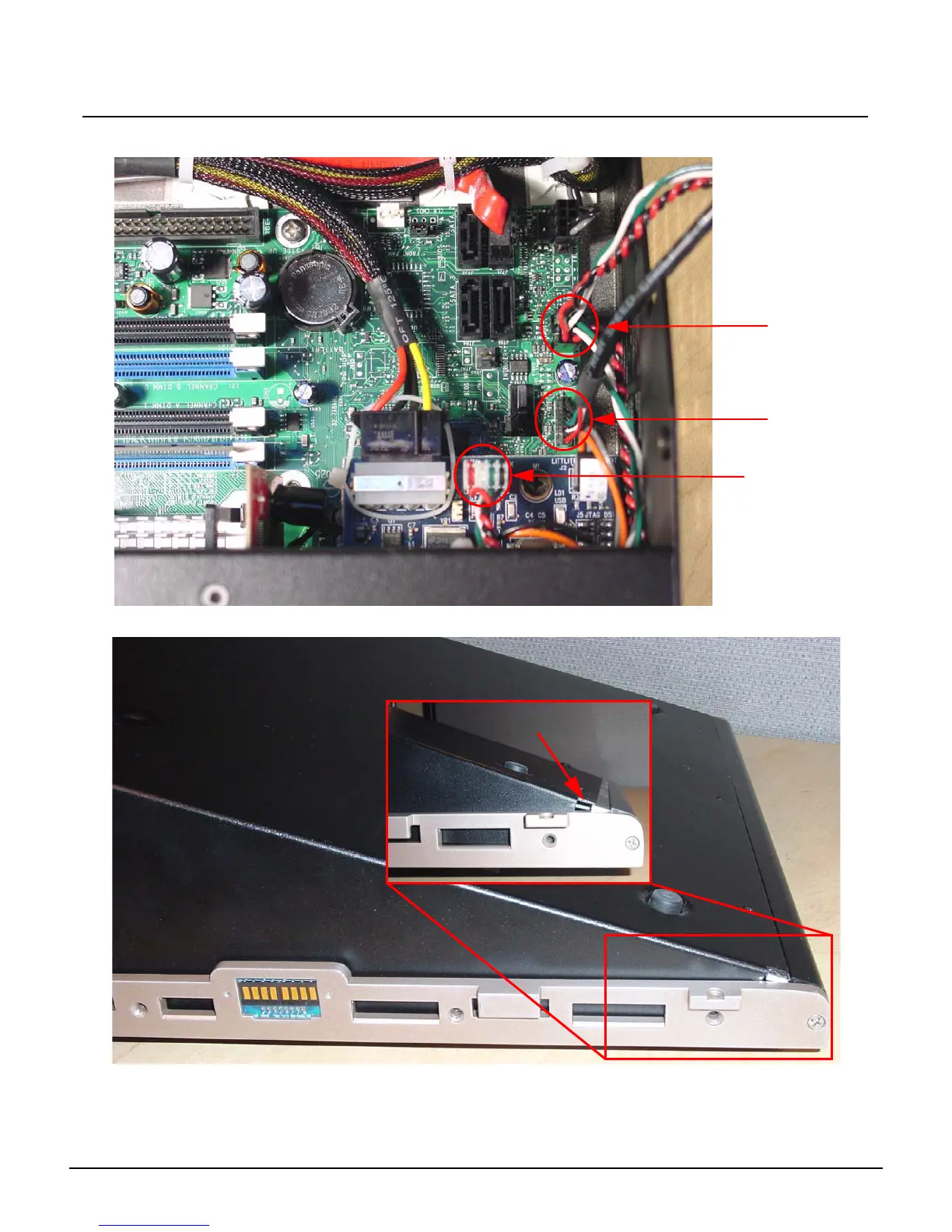

Step 18: Re-attach the USB Connectors to the motherboard.
Step 19: Slide the face panel back under the base pressure plate.
Step 20: Re-attach all 7 screws from each side of the console face panel.
Step 21: Flip the face panel over and tighten the 3 screws on the base of the console.
Step 22: Power the console up and verify correct face panel operation and LCD screen
operation.
FP USB 1
FP USB 2
J1 - USB Uplink
Base Pressure Plate
