ETC Service Note
Congo™ jr Encoder Replacement
Congo™ jr Encoder Replacement Page 18 Electronic Theatre Controls, Inc.

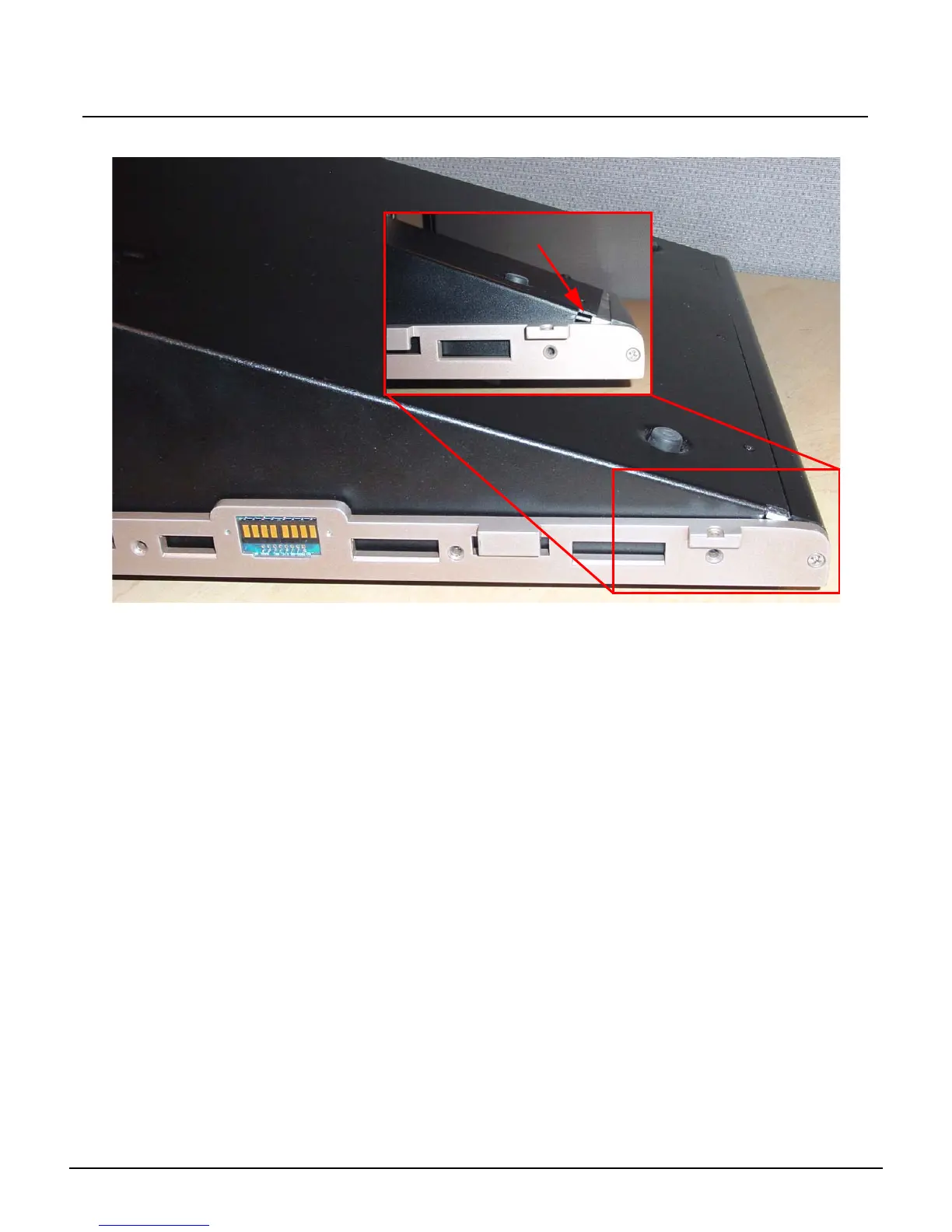

Step 24: Slide the face panel back under the Base pressure plate.
Step 25: Re-attach all 7 screws from each side of the console face panel.
Step 26: Flip the face panel over and tighten the 3 screws on the base of the console.
Step 27: Power the console up and verify correct console operation.
Base Pressure Plate
