ETC Service Note
Congo™ jr Video Card Replacement
Congo™ jr Video Card Replacement Page 22 Electronic Theatre Controls, Inc.

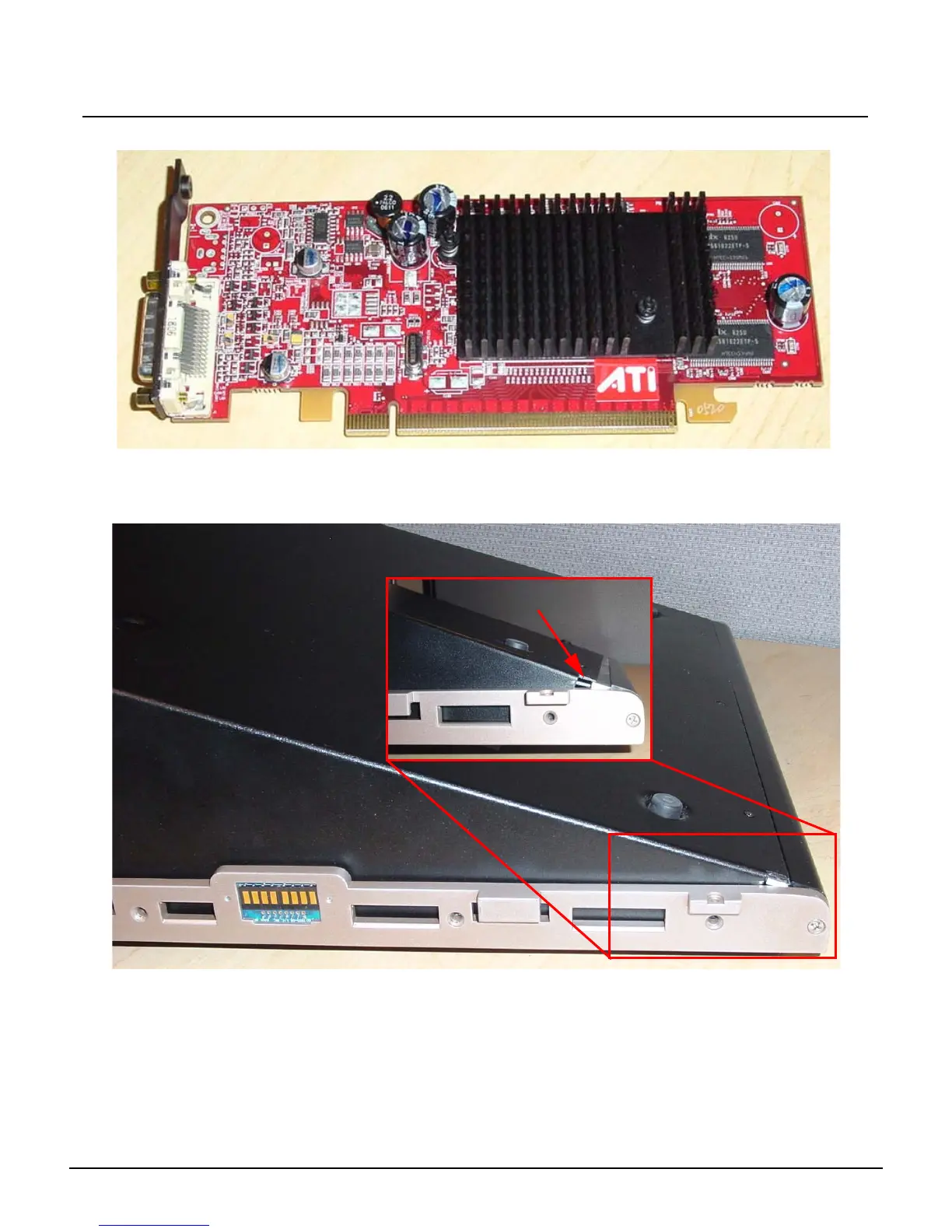

Step 13: Set the defective/damaged video card aside.
Step 14: Insert the new video card into the motherboard. There should be a click heard/felt
when the video card is seated all the way into the AGP Slot.
Step 15: Place the base cover back onto the base of the console and re-attach all 5 screws.
Step 16: Slide the face panel back under the base pressure plate.
Step 17: Re-attach all 7 screws from each side of the console face panel.
Step 18: Flip the face panel over and tighten the 3 screws on the base of the console.
Step 19: Power the console up and verify console operation.
Base Pressure Plate
