ETC Service Note
Congo™ jr Power Supply Replacement
Congo™ jr Power Supply Replacement Page 36 Electronic Theatre Controls, Inc.

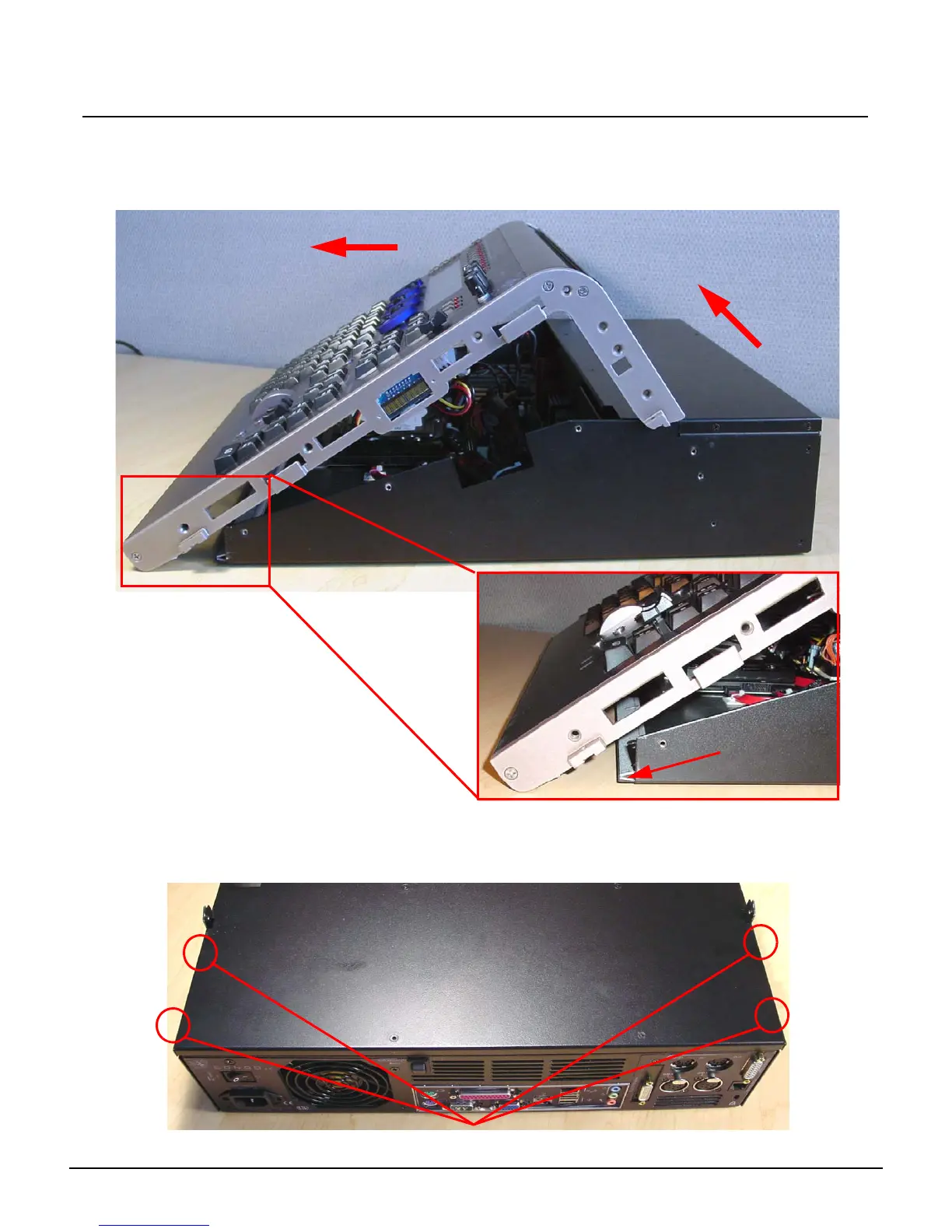

Step 5: Flip the console back onto the base.
Step 6: Lift the back side of the face panel upwards away from the base.
Step 7: Slide the face panel towards the front of the console. The face panel will slip under
the base pressure plate.
Step 8: Rest the face panel off to the left side of the base unit. (the side with the DMX
connectors) There is no need to remove the face panel cables when replacing the
power supply.
Step 9: Remove all 4 screws from both sides of the base.
1. Tilt face panel upwards
2. Slide face panel forwards
Base Pressure Plate
Remove these screws (located on the side of chassis)
To Next Page
