ETC Service Note
Congo™ jr Power Supply Replacement
Congo™ jr Power Supply Replacement Page 39 Electronic Theatre Controls, Inc.
Step 20: Re-connect the 2 Power connectors back into the power supply.
Step 21: Re-connect the large Motherboard connector into the Motherboard.
Step 22: Place a 4" zip-tie around the large bundle of wire and thru the sticky back on the base
of the console.
Step 23: Place the base cover back onto the base of the console and re-attach all 4 screws.
Step 24: Slide the face panel back under the base pressure plate.
Step 25: Re-attach all 7 screws from each side of the console face panel.
Step 26: Flip the face panel over and tighten the 3 screws on the base of the console.
Step 27: Power the console up and verify correct face panel operation and LCD screen
operation.

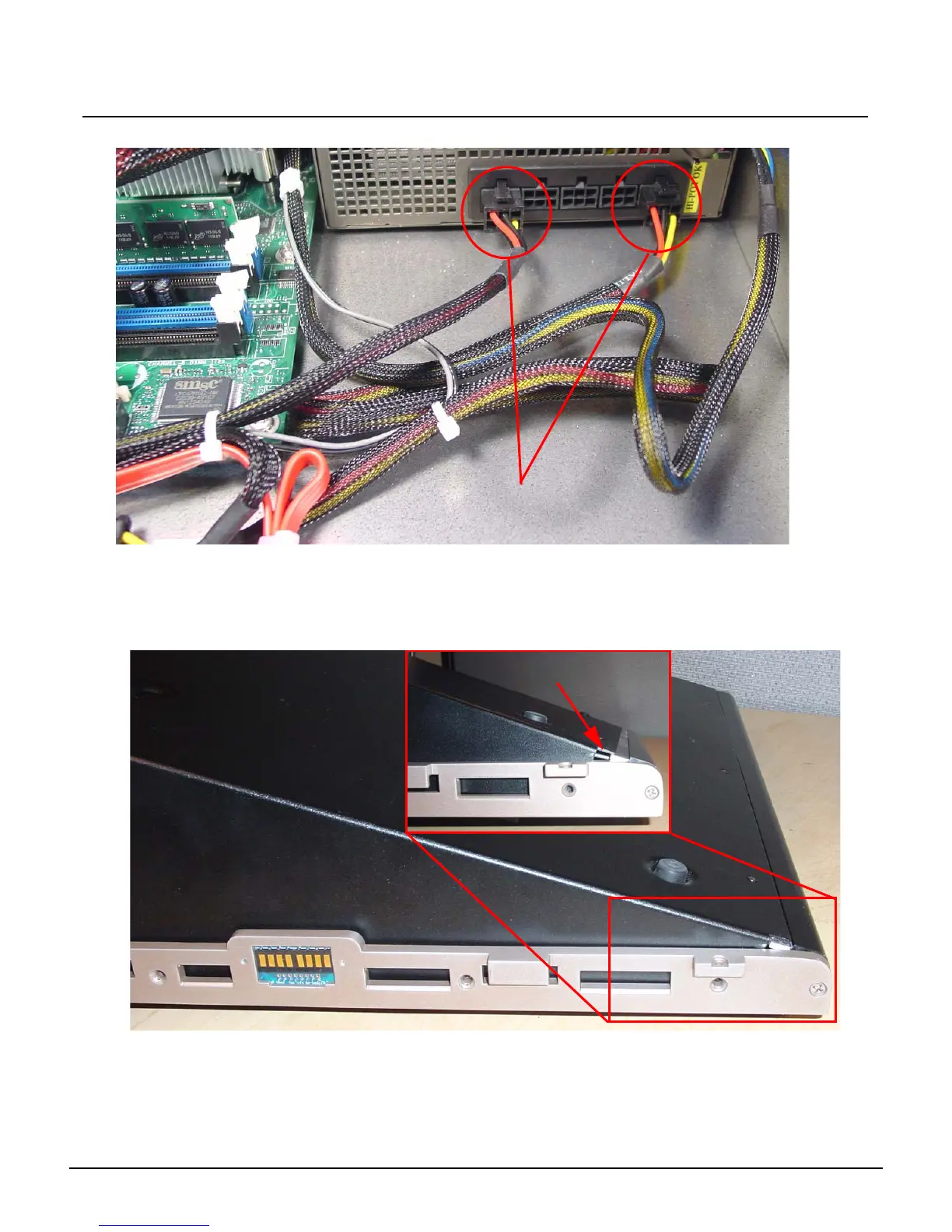

Re-connect these 2
power connectors
Base Pressure Plate
