ETC Service Note
Congo™ jr Main Board Replacement
Congo™ jr Main Board Replacement Page 43 Electronic Theatre Controls, Inc.

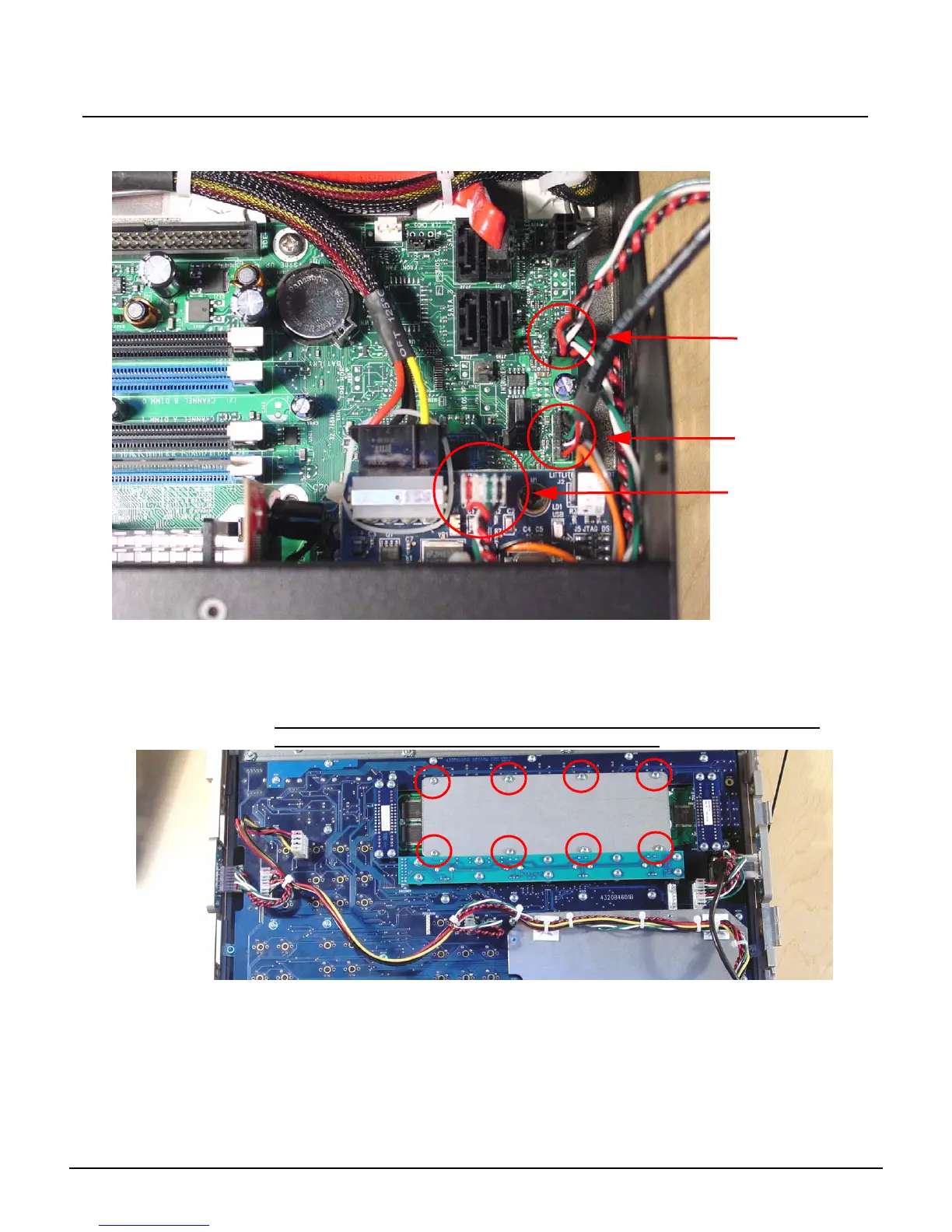

Step 8: Disconnect the J1 USB uplink from the I/O Card
Step 9: Disconnect the face panel USB 1&2 connectors from the Congo jr motherboard.
Step 10: Clip the zip ties holding the face panel cables to the base of the unit.
Step 11: Carefully set the Congo jr face panel face down exposing the back side of the face
panel PCB.
Step 12: Remove the 8 short screws from the LCD pressure plate.
NOTE: Be sure that you keep these 8 screws separated from the other FP
Screws as these are shorter screws than the others.
FP USB 1
FP USB 2
J1 USB Uplink
To Next Page
