ETC Service Note
Congo™ jr Main Board Replacement
Congo™ jr Main Board Replacement Page 47 Electronic Theatre Controls, Inc.

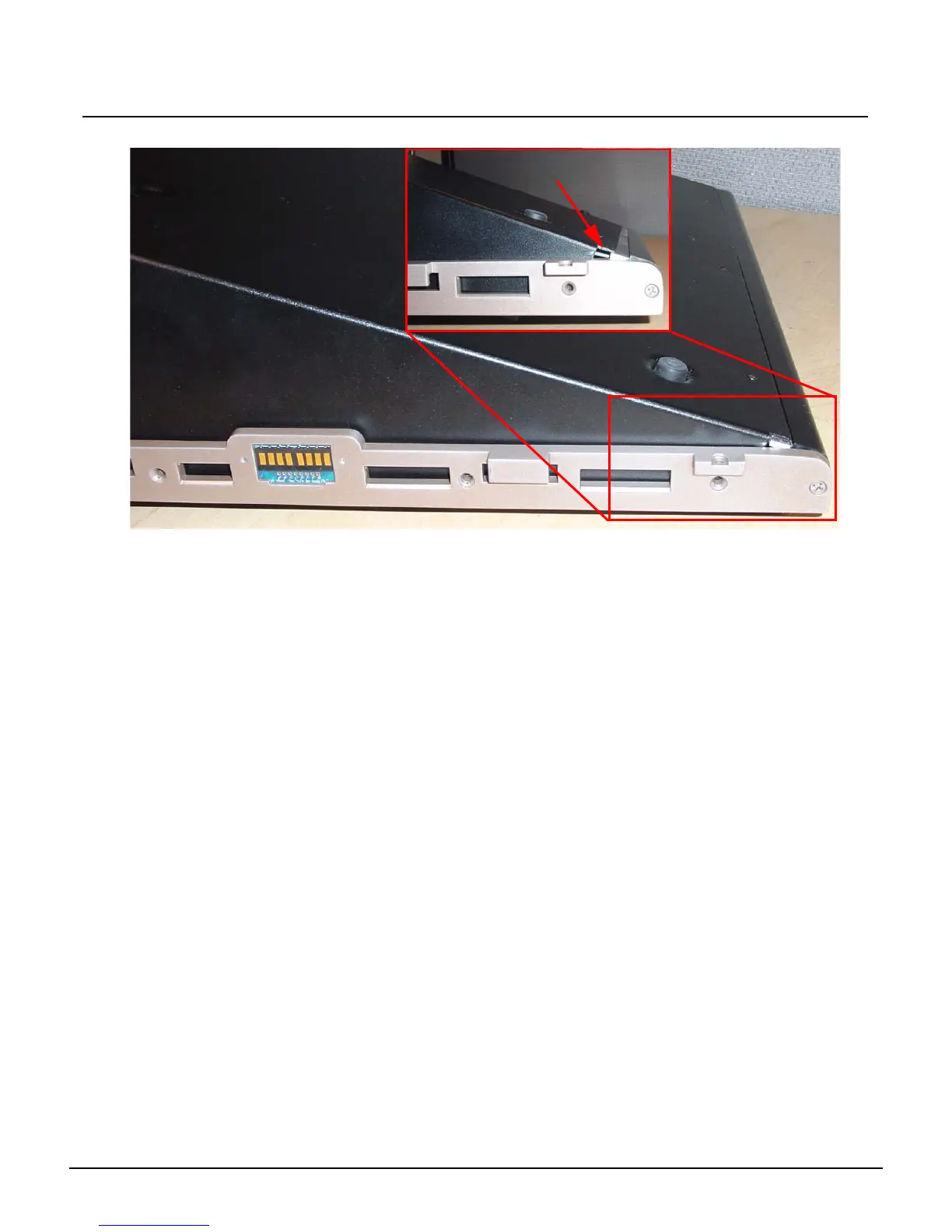

Step 38: Slide the face panel back under the base pressure plate.
Step 39: Re-attach all 7 screws from each side of the console face panel.
Step 40: Flip the face panel over and tighten the 3 screws on the base of the console.
Step 41: Power the console up and verify correct console operation.
Base Pressure Plate
