Ⅰ. Overview of the Panels
+
F/ C
HOUR
MINUTE
F
HEAT
ONOFF
MEM
VOL
-

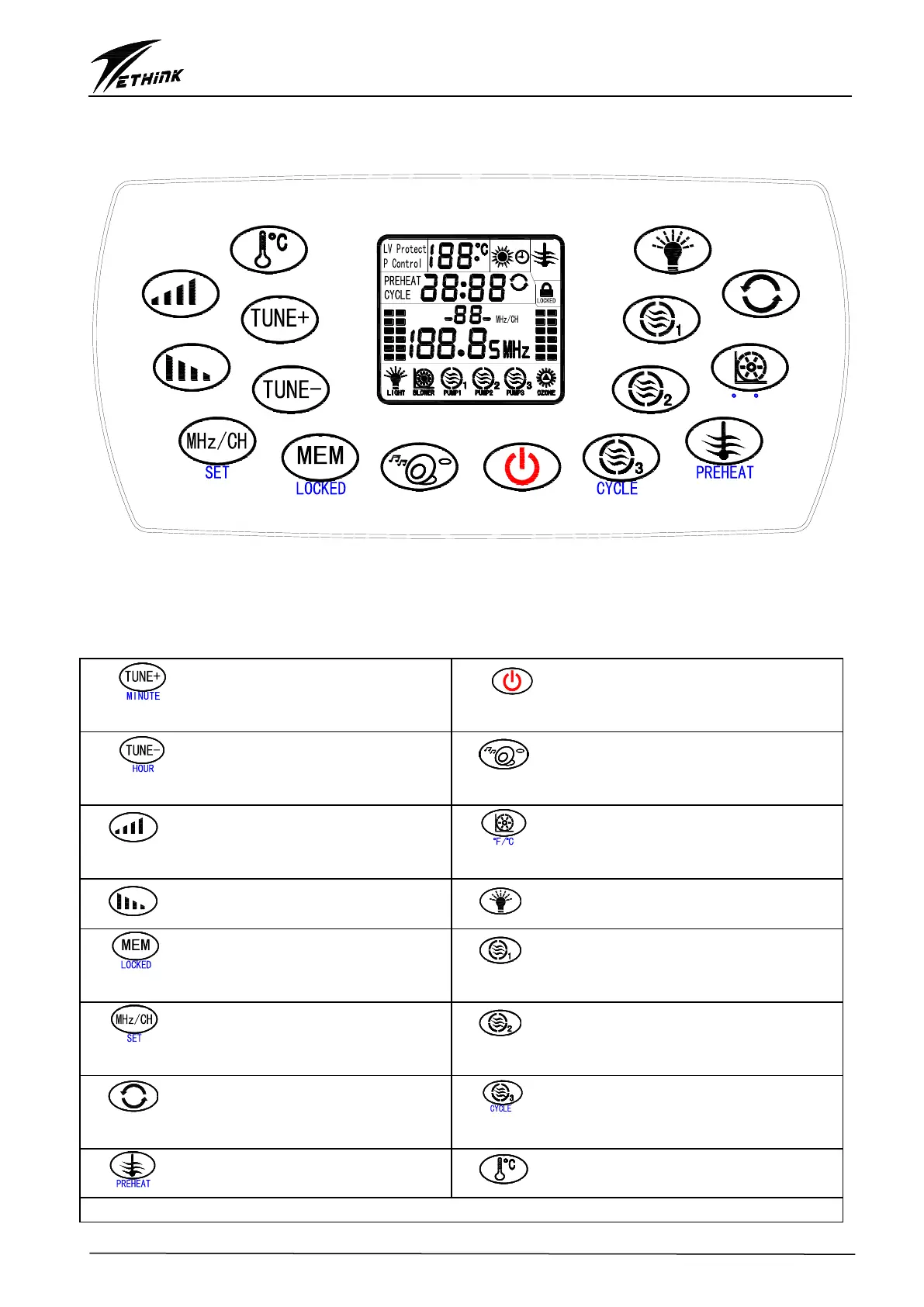

Fig . 1: The sketch map for the control panel with radio function(B2=OFF)
“ ” Radio frequency up/minute
adjustment
“ ” System power ON/OFF and
confirmation keypad
“ ” Radio frequency up/hour
adjustment
“ ” Radio/CD input ON/OFF
“
+
” Radio volume up
“ ”Blower ON/OFF and Fahrenheit/Celsius
shift
“
-
” Radio volume down
“ ” LED light ON/OFF
“ ” Radio channel memory/keypad
lock
“ ” Jet pump 1 ON/OFF
“ ” Radio channel searching/setting
shift
“ ” Jet pump 2 ON/OFF
“ ” Long circulation filtration ON/OFF
“ ” Jet pump 3 or circulation pump
ON/OFF, circulation filtration time slot setting
“ ”Heater ON/OFF and Preheat setting
“ ” Temperature setting
Note: The blue part of the keypad is only effective under standby status.
