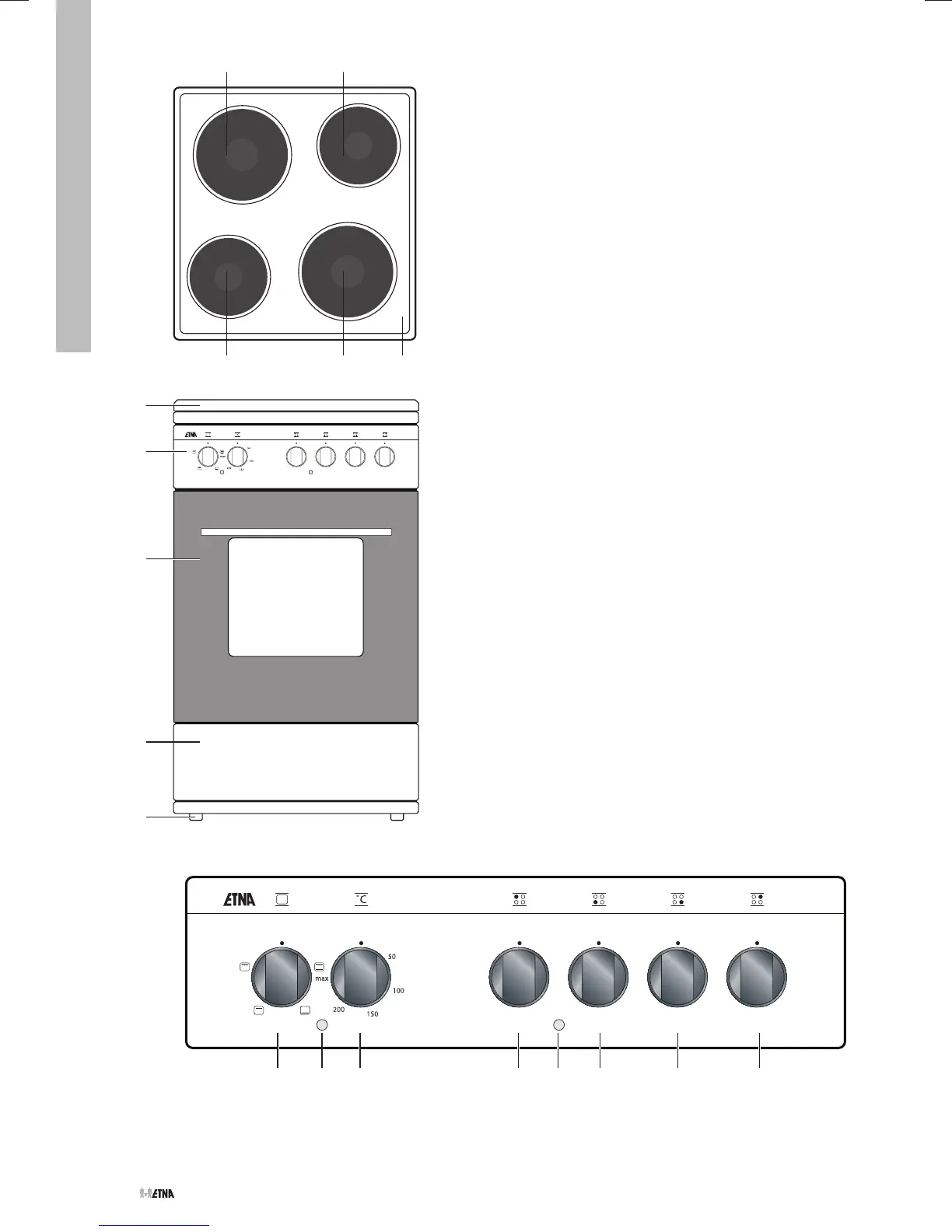

Appliance description
Type
Hotplate (EFE509)
1 – fast plate 1000 W
2 – fast plate 1500 W
3 – fast plate 1000 W
4 – fast plate 1500 W
5 – drip tray
Cooker
A – cover
B – control panel
C – oven
D – storage space
E – adjustable feet
Control panel
6 – control knob for oven functions
7 – indicator light oven
8 – control knob for oven temperature
9 – control knob for fast plate 2
10 – indicator fast plate
11 – control knob for fast plate 1
12 – control knob for fast plate 4
13 – control knob for fast plate 3
