EN 16
INSTALLATION AND CONNECTION

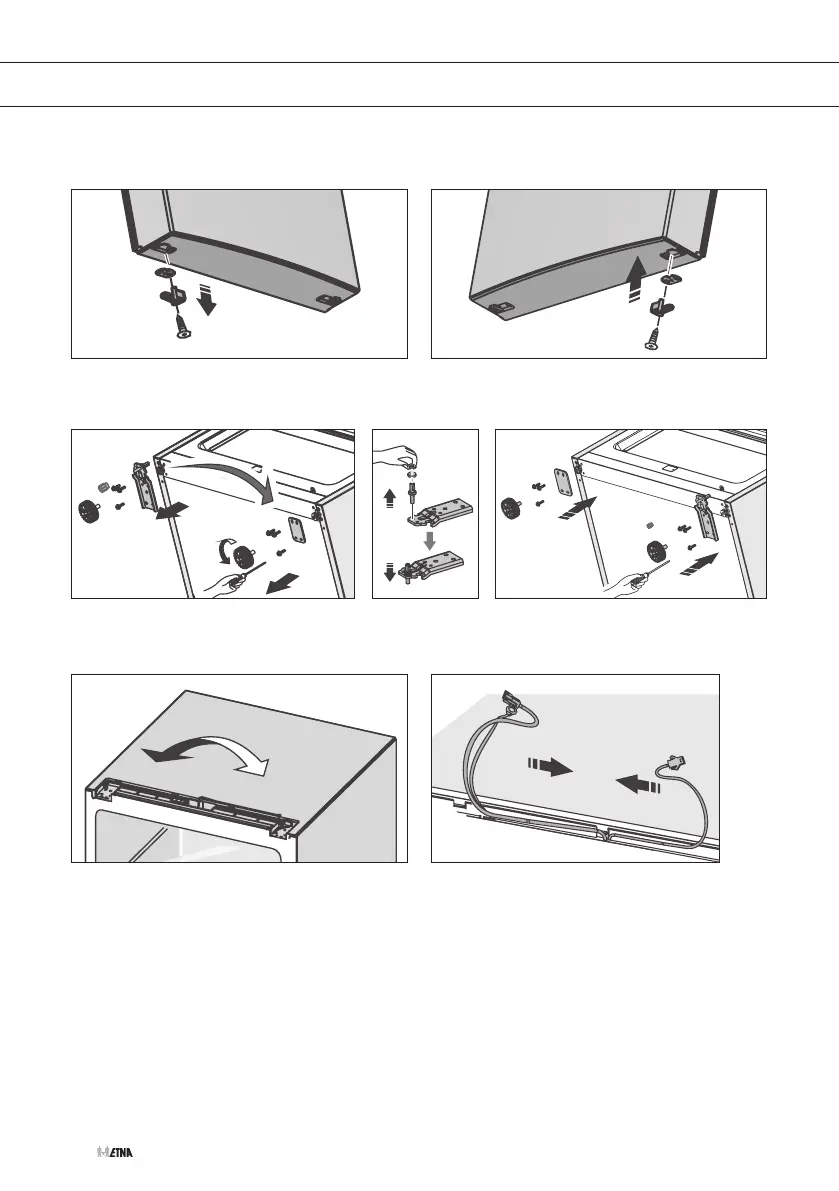

6. Unscrew parts “Q1” and “Q2” and attach them on the other side with the screw.
Q1
Q
Q2
R
7. Loosen the adjustable feet and the lower hinge and attach them on the other side.
8. Reverse the cables.
1 Upper hinge cover
(right)
1 Upper hinge cover
(right)
