POWER SUPPLY
The instrument is auxiliary powered (AUX) in range 85...265 VAC.

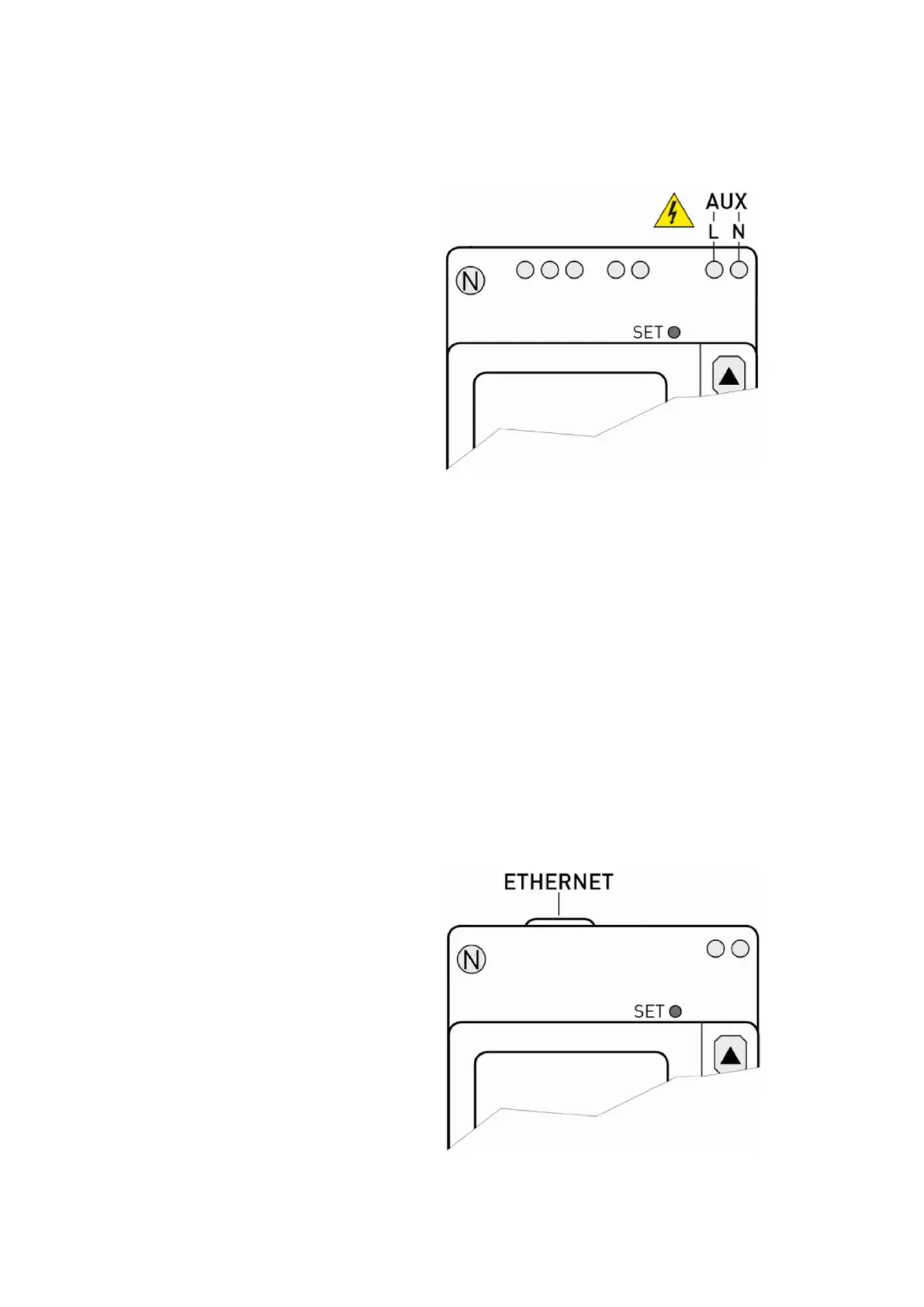

Figure 8: AUX power supply
ETHERNET COMMUNICATION PORT
The ETHERNET communication port gives the possibility to manage the
instrument by any PC or Etrel INCH charging station, connected on the
ETHERNET/Internet network.
The ETHERNET interface default IP address is 192.168.1.249. The Etrel
INCH charging station (or PC) network interface must have the same
address class (192.168.1.xxx). If the Etrel INCH charging station or PC
address has a different address class, contact your network system
administrator.
By inserting the instrument IP address or the pre-set name ETHBOARD in
the web browser, the instrument Web server will be displayed. Default
administrator access level username and password: admin, admin.
Figure 9: Ethernet port
