Etrel Load Guard | User manual
|
LOAD GUARD CURRENT TRANSFORMERS

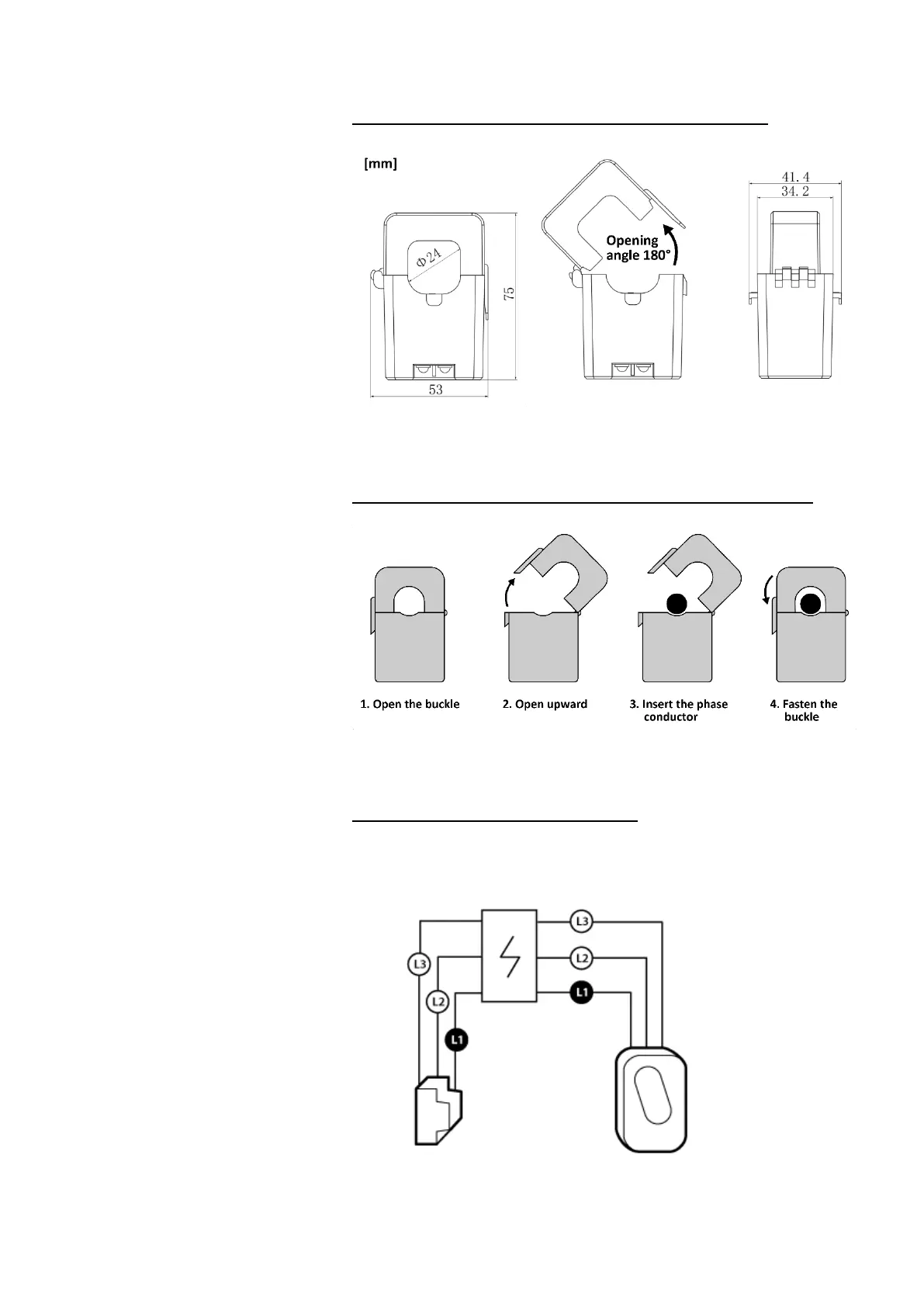

Figure 7: Dimensions of current transformers
CONNECTING THE CURRENT TRANSFORMERS
Figure 8: Connecting the current transformers
THREE-PHASE CONNECTION
For proper three-phase connection, current clamps must be placed on
specific phase conductors.
Figure 9: Correct connection must consider the correct sequence of phases
