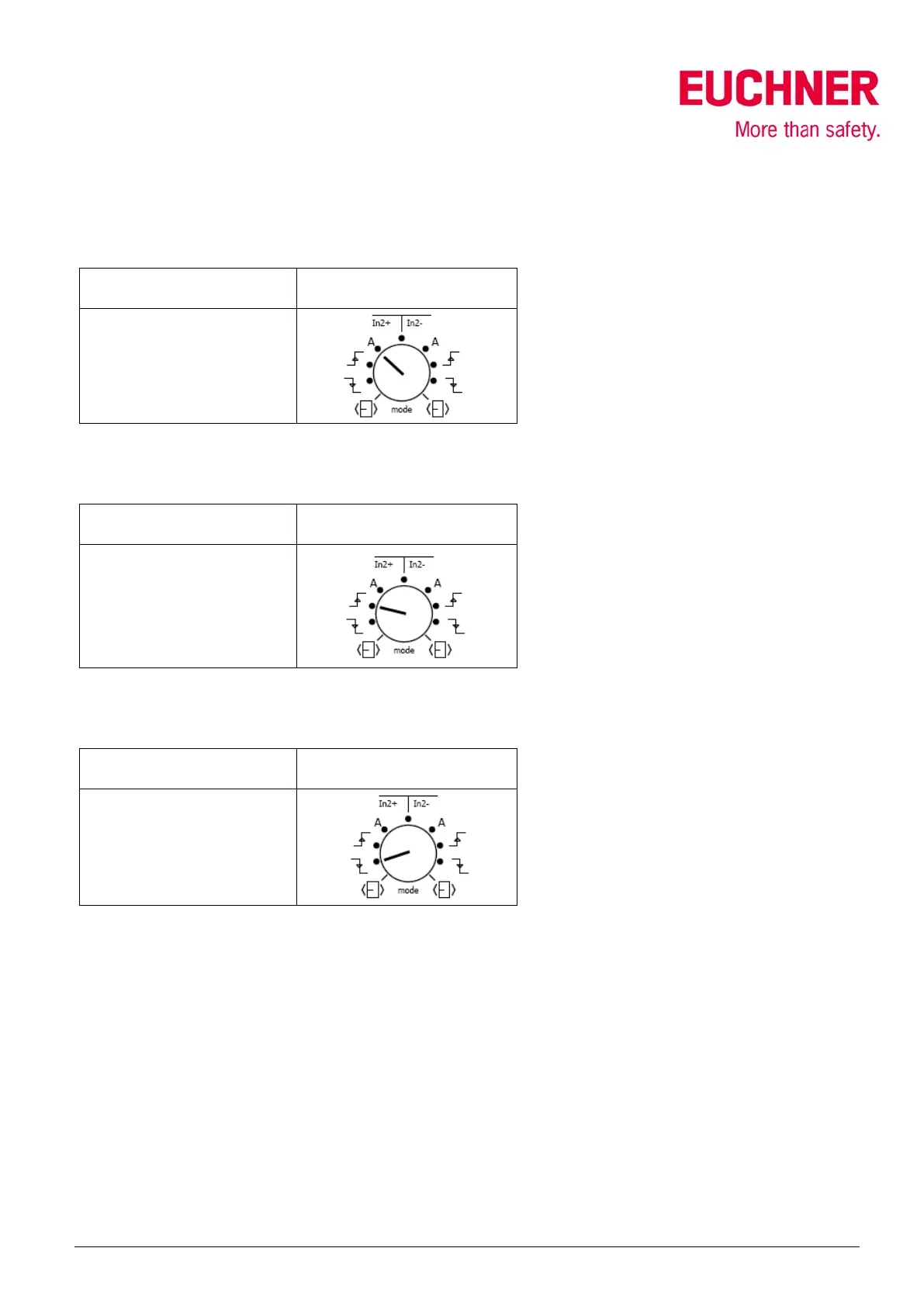

Setting of the operating mode selector switch “mode”
Only with the following settings does the safety relay PNOZ s5 operate correctly with a CET3.
Automatic, manual start – without short circuit detection
Operating mode selector
switch “mode”
Automatic, manual start
Without short circuit detection
Monitored start rising edge – without short circuit detection
Operating mode selector
switch “mode”
Monitored start, rising edge
Without short circuit detection
Monitored start falling edge – without short circuit detection
Operating mode selector
switch “mode”
Monitored start falling edge
Without short circuit detection
