Step 5

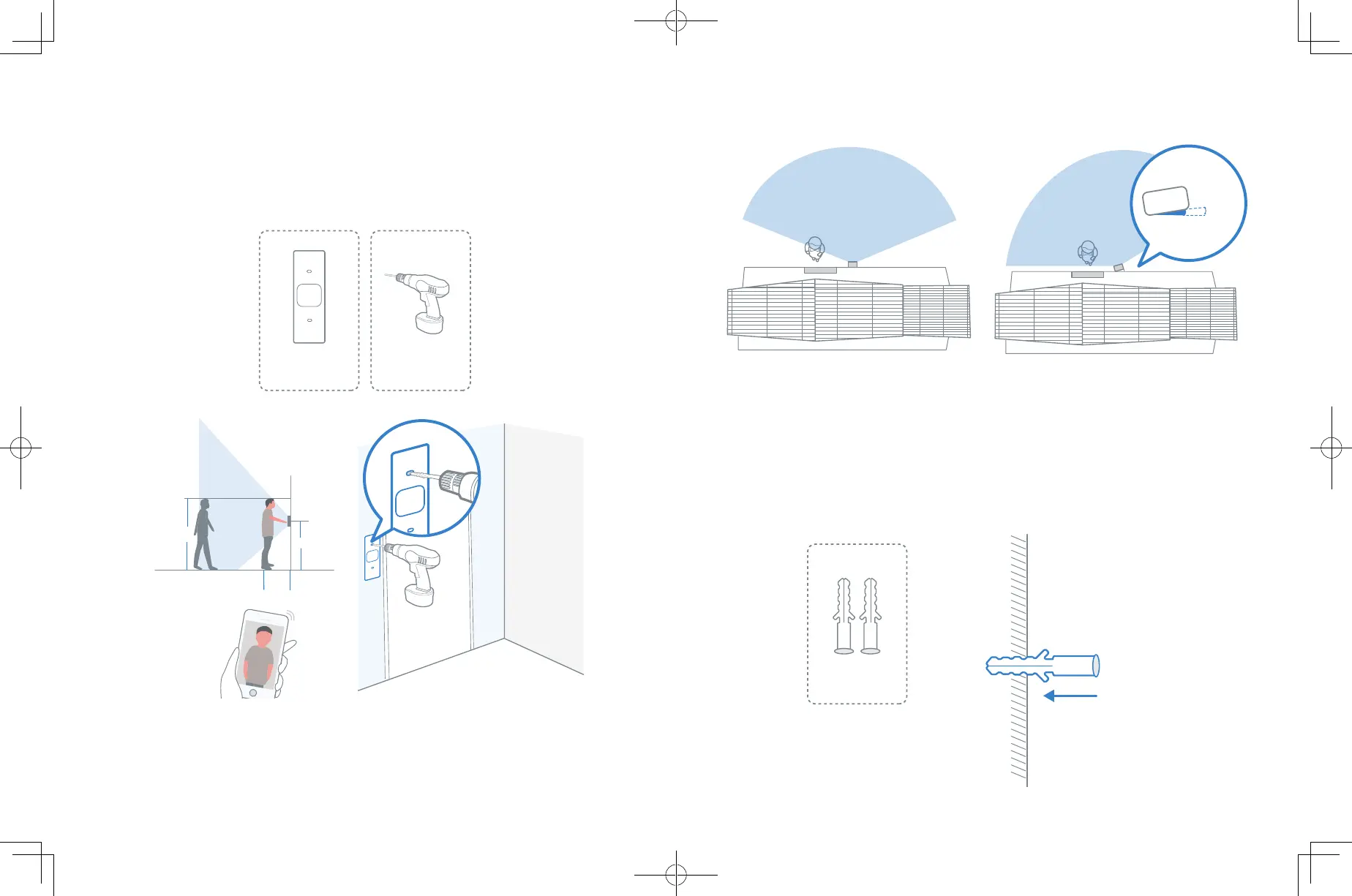

Determine the mounting position of the doorbell. Check if you can reuse the existing holes on the
wall. Use the Screw Hole Positioning-Card to mark the screw holes in the place of the existing
doorbell button, place it at least
1.2m(48”) high
from the ground for optimal viewing result, then
drill holes
(Use 1/4" (6.35mm) drill bit).
What are required: Power Drill with 1/4" (6.35mm) Drill Bit / Screw Hole Positioning-Card
Screw Hole
Positioning-Card
Power Drill with
1/4" (6.35mm) Drill Bit
(User provides it.)
1.76m(5’9”)
1.2m (48")
0.3m
(12")
1m
(40")
Optional: Use the 15° mounting wedge as a supplementary mounting bracket if you wish to see
more on a specific side.
Video Doorbell
Without 15° Mounting wedge
Door
Video Doorbell
With 15° Mounting wedge
Door
Step 6
Use the anchors provided when installing in materials such as stucco, brick, or concrete. There is no
need to use anchor If you were installing on wooden doorframe.
What's required: Anchors
Screw Packs (Anchors)
