blind spots.

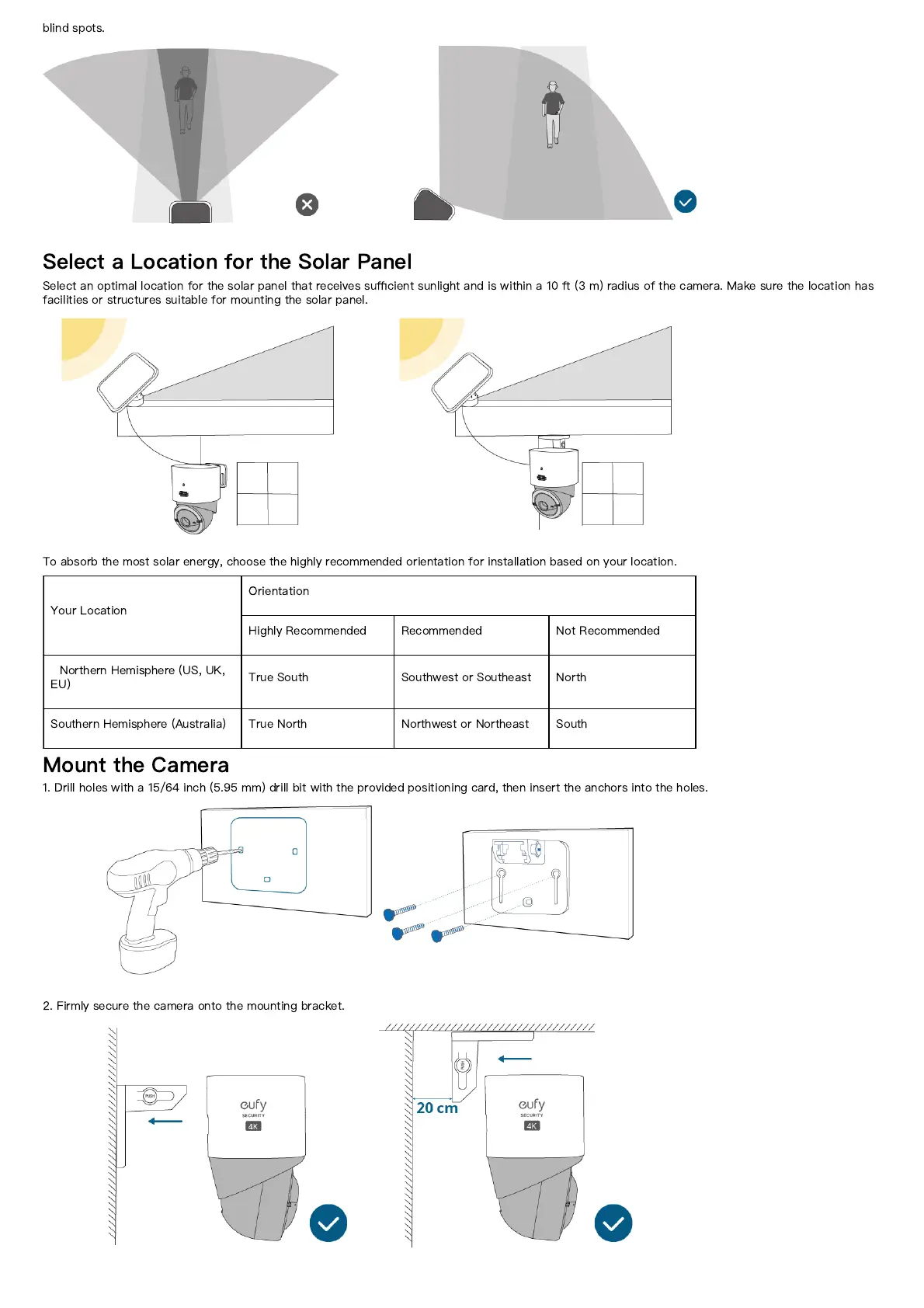

Select a Location for the Solar Panel
Select an optimal location for the solar panel that receives su
ffi
cient sunlight and is within a 10 ft (3 m) radius of the camera. Make sure the location has
facilities or structures suitable for mounting the solar panel.
To absorb the most solar energy, choose the highly recommended orientation for installation based on your location.
Your Location
Orientation
Highly Recommended Recommended Not Recommended
Northern Hemisphere (US, UK,
EU)
True South Southwest or Southeast North
Southern Hemisphere (Australia) True North Northwest or Northeast South
Mount the Camera
1. Drill holes with a 15/64 inch (5.95 mm) drill bit with the provided positioning card, then insert the anchors into the holes.
2. Firmly secure the camera onto the mounting bracket.
