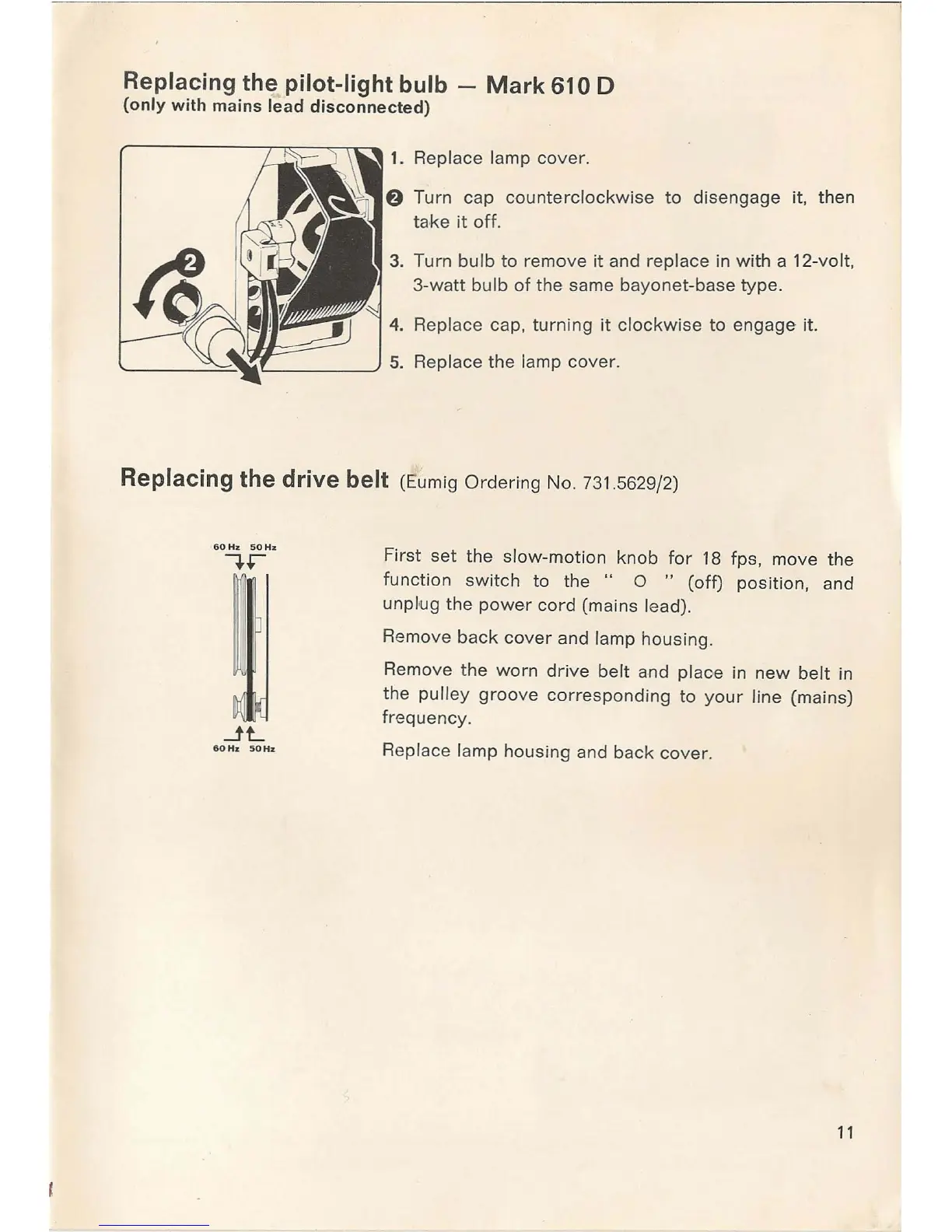

Replacing th~ pilot-light bulb - Mark 610 D
(only with mains lead disconnected)
'- ---- --~~.~------ ~
1. Replace lamp cover.
Turn cap counterclockwise to disengage it, then
take it off.
3. Turn bulb to remove it and replace in with a 12-volt,
3-watt bulb of the same bayonet-base type.
4. Replace cap, turning it clockwise to engage it.
5. Repl ace the lamp cover .
Replacing the drive belt (Eumig Ordering No. 731 .5629/2)
60HlI: 50Hz
••
Jt....
60Hz 50Hz
First set the slow-motion knob for 18 fps, move the
function sWi tch to the " 0 " (off) position, and
unplug the powe ,r cord (mains lead).
Remove back cover and lamp housing.
Remove the worn drive belt and place in new belt in
the pulley groove corresponding to your line (mains)
frequency.
Replace lamp housing and back cover .
11
