How to replace brush roll or belt
Eureka Customer Service HELPLINE 1-800-282-2886
www.eureka.com
12

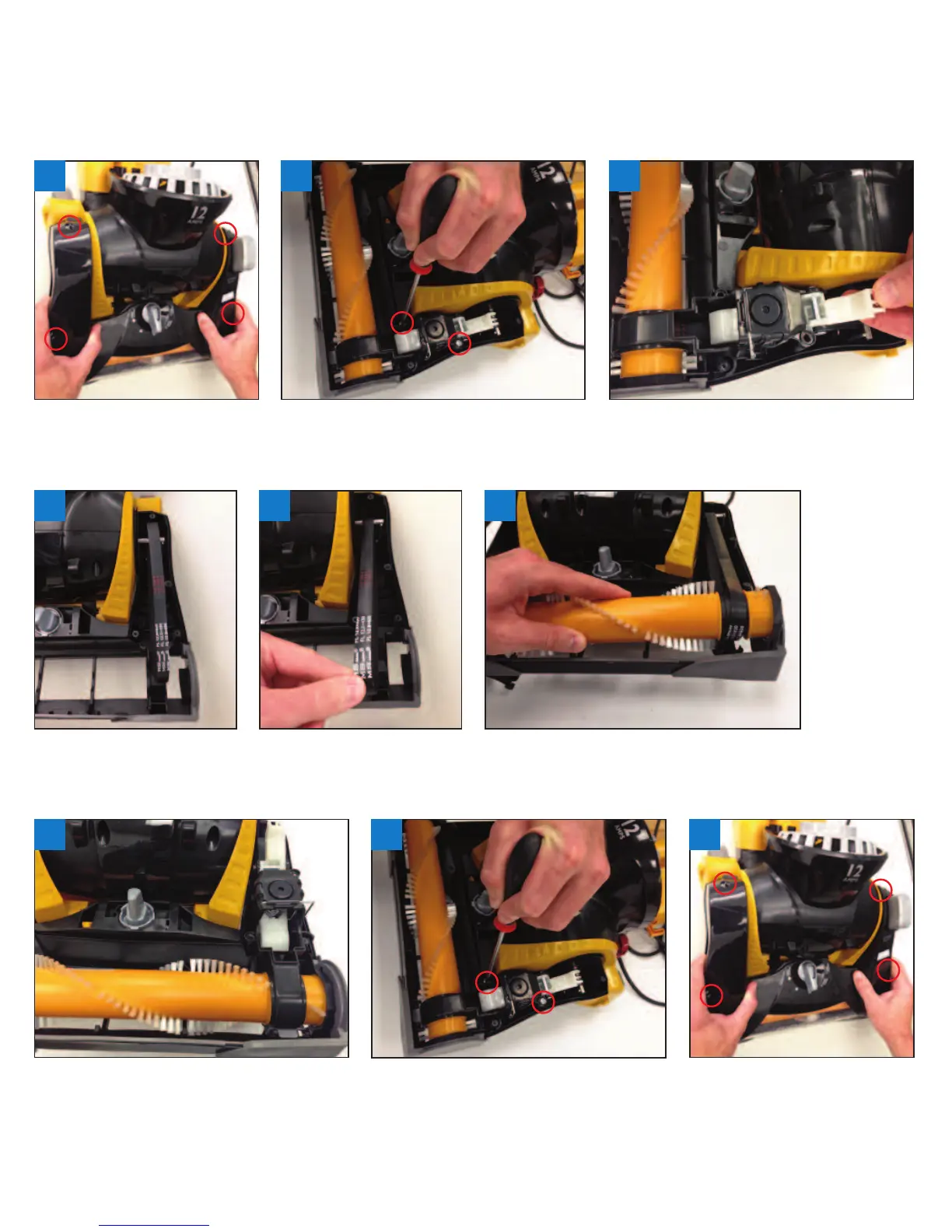

Remove 4 screws from brush
roll cover and lift off cover.
Replace brush roll cover
and 4 screws.
Remove belt from motor
shaft and brush roll.
Replace the white latch assembly
back into position.
Reinstall 2 screws.
Insert left end of brush roll first. Loop
new belt around right end of brush roll
and insert right end cap into base.
Use a Phillips screwdriver to
remove 2 screws.
Replace belt around
motor shaft.
Pull up white latch to release the belt
assembly and lift straight out.
