Eureka E65 - DIMENSIONAL TECHNICAL DRAWINGS

37
E65

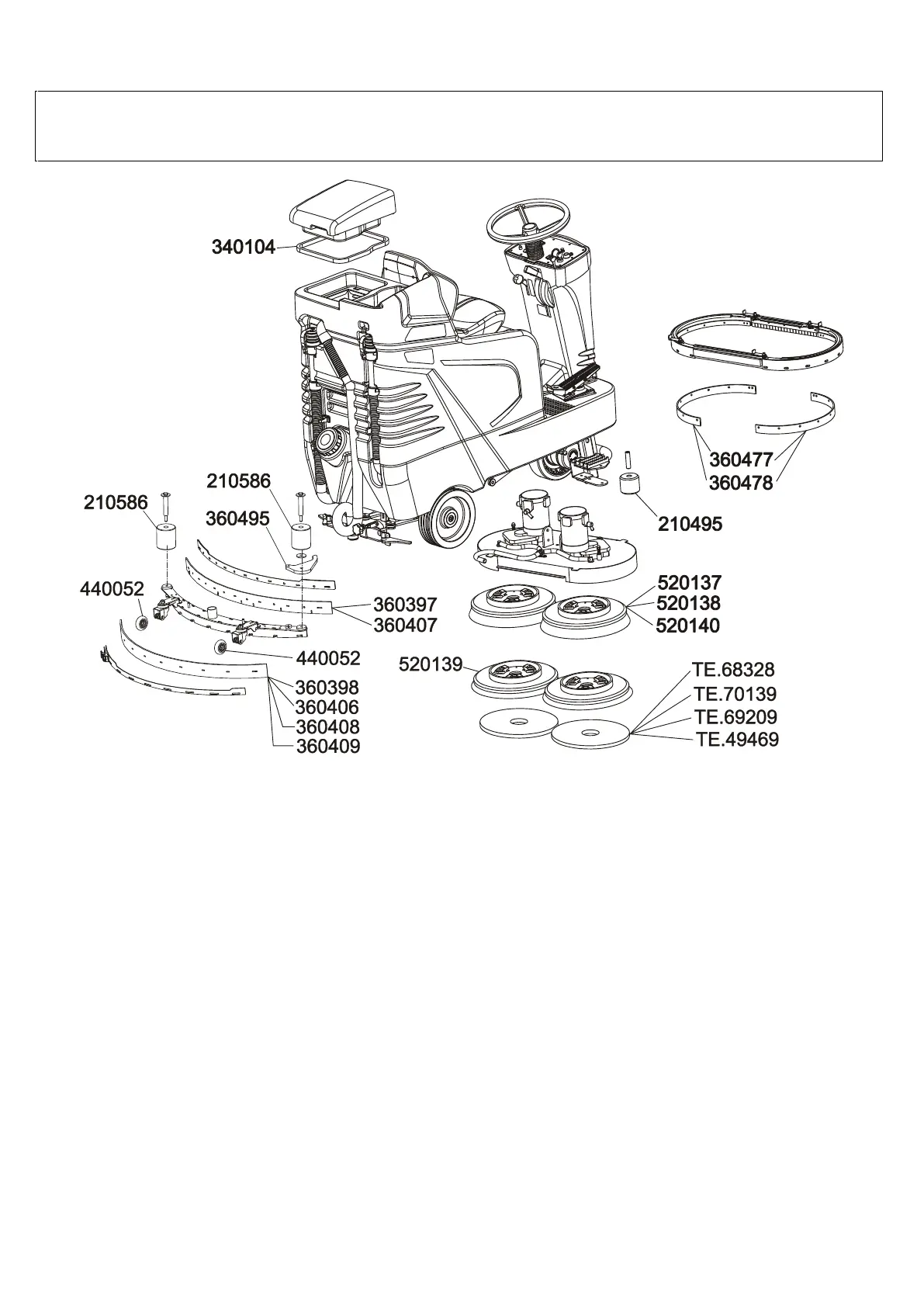

SPARE PARTS RECOMMENDED FOR THE ORDINARY MAINTENANCE TO BE
CONDUCTED BY QUALIFIED OPERATORS TRAINED ACCORDINGLY BY THE
OWNER OR EMPLOYER
• CODE 210495: FRONT BUMPER ROLLER
• CODE 210586: BUMPER ROLLER
• CODE 340104: COVER GASKET 1.12 METRES
• CODE 360397: SQUEEGEE FRONT RUBBER IN LINATEX – 4mm - (STANDARD)
• CODE 360398: SQUEEGEE REAR RUBBER IN LINATEX – 4.7 mm - (STANDARD)
• CODE 360406: SQUEEGEE REAR RUBBER IN LINATEX - 4 mm - (OPTIONAL)
• CODE 360407: SQUEEGEE FRONT RUBBER IN PRIMOTANO - 4 mm -(OPTIONAL)
• CODE 360408: SQUEEGEE REAR RUBBER IN PRIMOTANO - 4 mm - (OPTIONAL)
• CODE 360409: SQUEEGEE REAR RUBBER IN PRIMOTANO - 4.7 mm - (OPTIONAL)
• CODE 360477: SPLASH GUARD RUBBER IN LINATEX – 4.7 mm - ( 2 PER MACHINE-STANDARD)
• CODE 360478: SPLASH GUARD RUBBER IN PRIMOTANO – 4.7 mm - ( 2 PER MACHINE-OPTIONAL)
• CODE 360495: BUMPER
• CODE 440052: SQUEEGEE REAR WHEEL
• CODE 520137: ABRASIVE NYLON BRUSH (2 PER MACHINE)
• CODE 520138: Ø 0.9 mm PPL BRUSH (2 PER MACHINE)
• CODE 520139: PAD HOLDER (2 PER MACHINE)
• CODE 520140: Ø 0.6 mm PPL BRUSH (2 PER MACHINE)
• CODE TE.68328: 13” 381mm WHITE ABRASIVE PAD
• CODE TE.70139: 13” 330mm RED ABRASIVE PAD
• CODE TE.69206: 13” 330mm BLUE ABRASIVE PAD
• CODE TE.49469: 13” 330mm BLACK ABRASIVE PAD
