Eurocave Compact - Alternative Door Hanging Instructions

19
EN
5 - INSTALLING YOUR CIGAR HUMIDOR
A Upper hinge
B Grommets
C Grommets
D Torx screw
E Torx screw
F Closing clip
G Lower hinge
H Door pivot guide
J Door axis plug

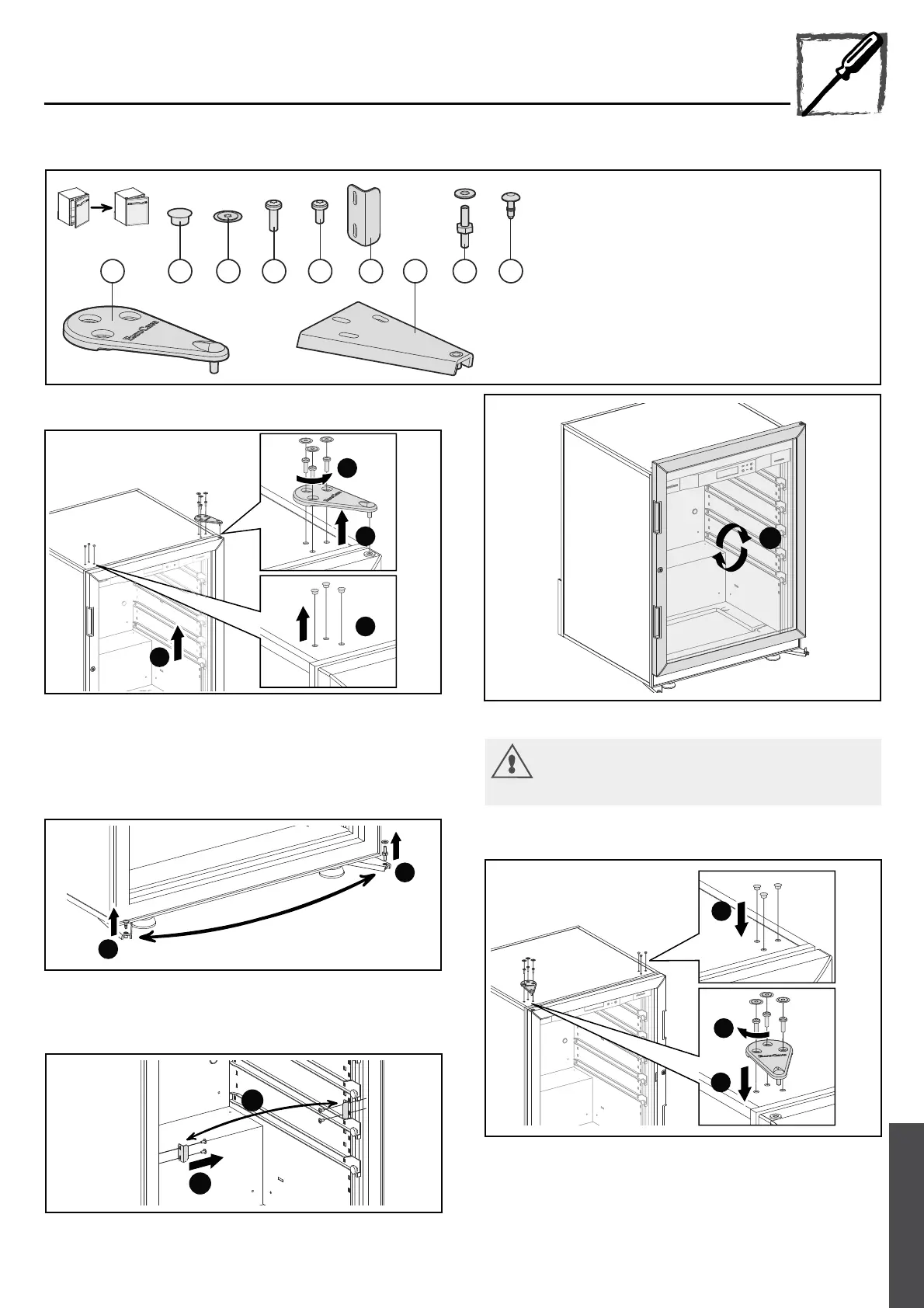

Alternative hanging of the door
x3 x2x3
C E
x6
DB GF H JA
1
2
4
3
You can change which way it opens. Proceed as follows (example for
changing a right hand door to a left hand door):
5 Loosen the door pivot guide.
6 Remove the grommets gently using a fine blade and in its place fit the
pin. Relocate the grommet on the opposite side.
6
5
9 Turn the door 180°.
Warning: the glazed doors are very heavy. Take all necessary
precautions not to injure yourself or drop the door.
10 Replace the door on its pivot guide.
12
11
13
9
1 Loosen the three screws using the Torx “T25” tool.
2 Remove the upper hinge.
3 Remove the grommets gently using a fine blade.
4 Lift the door from the lower hinge by opening the door slightly and
then lifting it.
11 Relocate the upper hinge.
12 Relocate the hinge in such a way so that the door is parallel with the
case. Check (by closing the door) that the seal adheres well to the
housing and is leak proof.
13 Replace the grommets.
7 Loosen the four screws.
8 Locate the foot on the other side of the housing using the screws.
8
7
