EuroLite SCENE SETTER User Manual

17

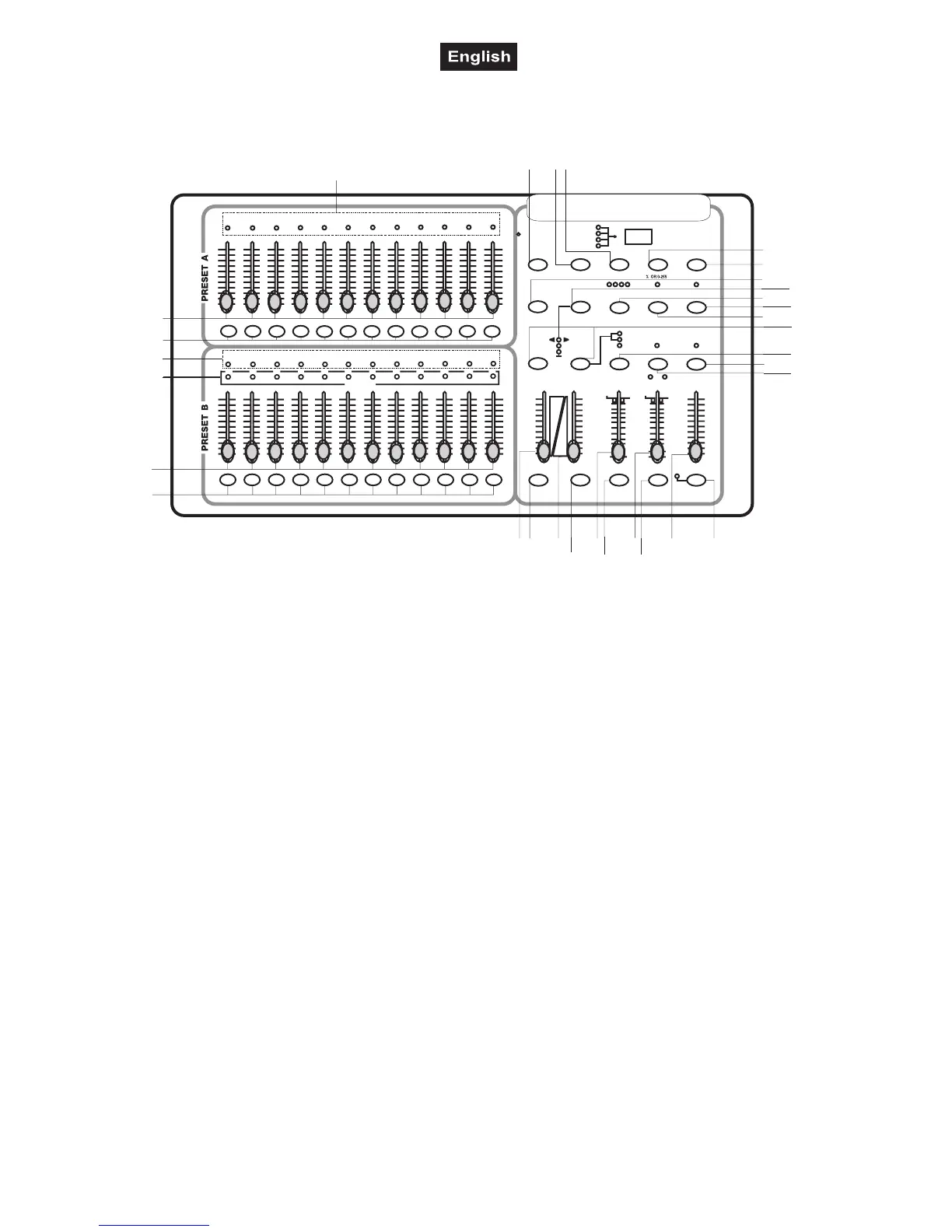

4.2 Overview
Overview on the control elements
BLIND HOME
TAP SYNC FULL-ON
BLACK OUT
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
10
8
6
4
2
0
1
234
56
78
9
10
11 12
13
14
15 16 17 18
19 20
21 22 23
24
1
23 456 7
8
9
10
11 12
SCENES
REC STEP
DOWN
BEAT REV CHASE REV REV ONE
DELETE INSERT
EDIT
ALL REV
RECORD
SHIFT
STEP
AUDIO
ADD
KILLPAGE
MODE
DARK
CHASE
PARK
B
SCENES MIX CHASE
SINGLE CHASE
HOLD
MASTER
AB
FADE
SPEED AUDIOLEVEL
5MIN 10MIN
A
DOUBLE
1-24 SINGLE
SELECT
REC SPEED
REC
CLEAR
REC
EXIT
UP
DIMMER
SPEED TIME
FADE TIME
1234
PRESET
PRESET
INSTANT
.ISEC .ISEC
MINS
MODE
MODE
MINS MINS
SHOW SHOW
.2s
.5s
1s
2s
5s
10s
30s
1m
2m
5m
.2s .2s
.5s
1s
1s
2s
2s
5s
5s
10s
10s
30s
20s
1m
1m
2m
2m
5m
5m
10m
10m
10
8
6
4
2
0
1
2
3
4
5
6
7
89
10
11
12
13
14
11
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
SCENE SETTER
eurolite
®
1) PRESET A LEDS
2) CHANNEL SLIDERS 1-12
These sliders will adjust the output of 1 to 12 channel from 0 to 100% or 0 to 255.
3) Flash key 1-12
ress to activate maximum channel output.
4) PRESET B LEDS
5) SCENES LEDS
6) CHANNEL SLIDERS 2-24
These sliders will adjust the output of 1 to 12 channel from 0 to 100% or 0 to 255.
7) Flash key 13-24
Press to activate maximum channel output.
8) MASTER A SLIDER
The slider will adjust the output of preset A.
9) BLIND KEY
In Chase-Scene mode, this key when activated, the output of each channel will be controlled only by
slider or flash key.
10) MASTER B SLIDER
The slider will adjust the output of preset B.
11) HOME KEY
In Chase-Scene mode, this key,when activated, the output of each channel will be come back from
controlled by slider or flash key to controlled by program.
12) FADE TIME SLIDER
Move to adjust fade time.
13) TAP SYNC
In AUTO CHASE ,press it twice to define chasing speed.
14) SPEED SLIDER
Move to adjust chasing speed.
15) FULL ON KEY
When activated ,whole channel output will be maximum and disable BLACK OUT.
16) AUDIO LEVEL SLIDER
Move to adjust the sensitivity of audio.
17) BLACK OUT KEY
The key will force all DMX to "0".
