19
5. SETUP
5.1 Installation
Install the device on a plane surface or install it in a rack.
Rack-installation: This device is built for 19" racks (483 mm). The rack you use should be a Double-Door-
Rack where you can open the frontpanel and the rear panel. The rack should be provided with a cooling fan.
When mounting the controller into the rack, please make sure that there is enough space around the device
so that the heated air can be passed on. Steady overheating will damage your device.
You can fix the controller with four screws M6 in the rack.
Connect the connection cable of the power-unit with the DC IN-socket. Plug the power unit into your outlet.
5.2 Sound-control
The sound-control works via the Line In socket. Connect the sound-signal from the mixer (e.g. Master 2) with
the RCA-socket on the rear panel (input sensitivity 0.1 V - 1 V).

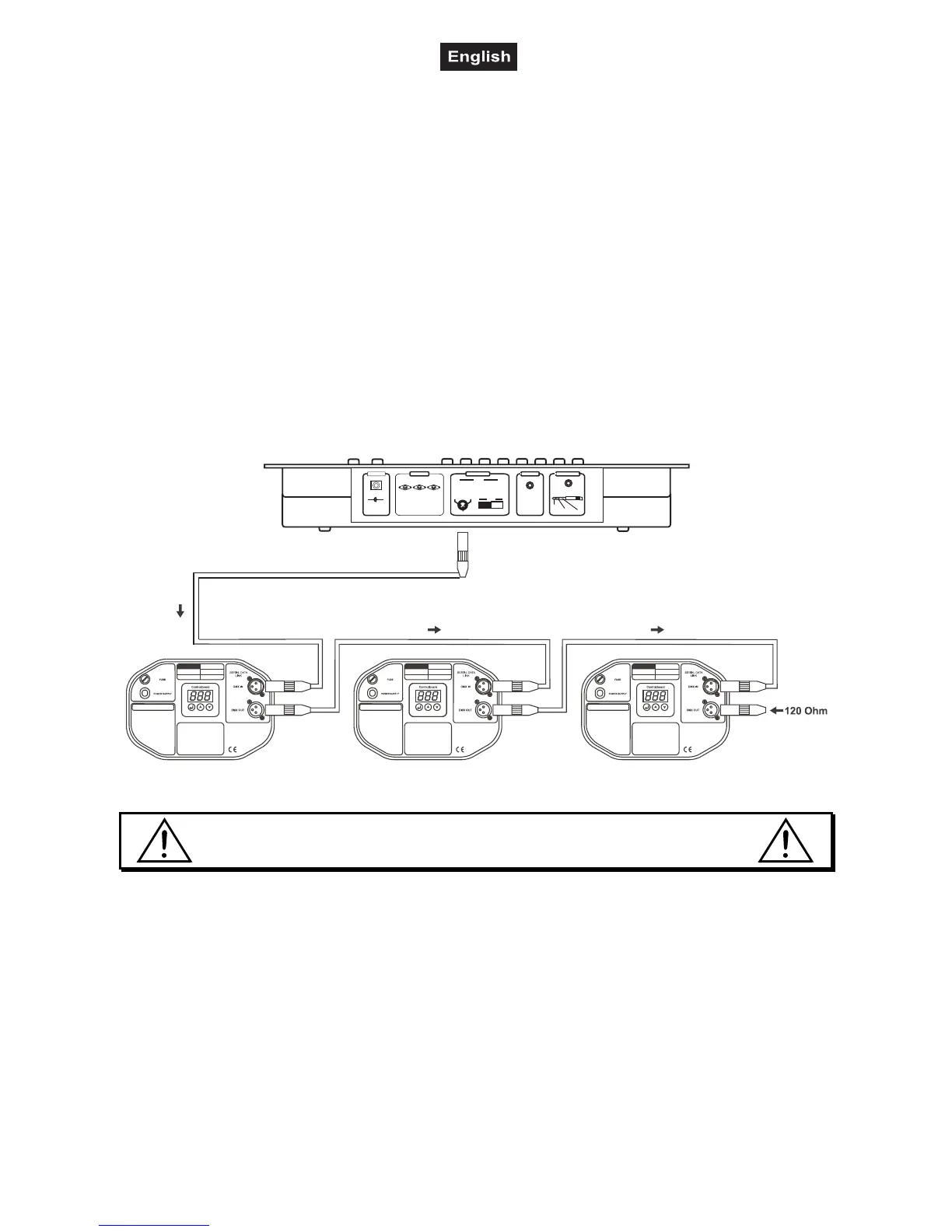

5.3 DMX-512 connection with the projector
Projector 1
Starting address 1
Projector 2
Starting address 17
Projector 3
Starting address 33
DC INPUT AUDIODMX OUT REMOTE
MIDI
1=Ground
2=Data+
3=Data-
1=Ground
2=Data-
3=Data+
THRU OUT IN
-
DC 12V 18VDC 12V 18V
500 mA min
~
LINE IN
DMX polarity select
1/4"stereo jack
Full on
Black out
GND
100mV 1Vp-p
~
+
2
1
3
The wires must not come into contact with each other, otherwise
the fixtures will not work at all, or will not work properly.
Only use a stereo shielded cable and 3-pin XLR-plugs and connectors in order to connect the controller with
the fixture or one fixture with another.
Occupation of the XLR-connection:
You can adjust the XLR polarity via the DMX POLARITY selector.
Building a serial DMX-chain:
Connect the DMX-output of the DMX Scene Setter with the DMX-input of the nearest projector. Always
connect one output with the input of the next fixture until all fixtures are connected.
Caution: At the last fixture, the DMX-cable has to be terminated with a terminator. Solder a 120
resistor
between Signal (–) and Signal (+) into a 3-pin XLR-plug and plug it in the DMX-output of the last fixture.
Projector addressing
Please note that the DMX Scene Setter assigns the DMX-starting addresses every 16 steps. You have to
