Euromatic Q81S - Description and Main Components; Control Panel Components and Indicators

2
24Vac
230Vac
F2
J5
JP8
JP9
JP1
JP2 JP3
POWER
230Vac
5A
230Vac
DL1
- + - +
K4
K2
K3
FR1
21 22
SW1 SW2
DL2
START STOP PED
1 2 3 4 5 6 7 8 9 10 11 15 16 17 18 19 2012 13 14
V1
JP10
23 24
DL3
DL4
DL5
DL6 DL7
DL8
DL9
DL10
FR2
SENS POWER
SET SET TX
WORK BREAK
J1
SENS POWER
SET SET TX
WORK BREAK

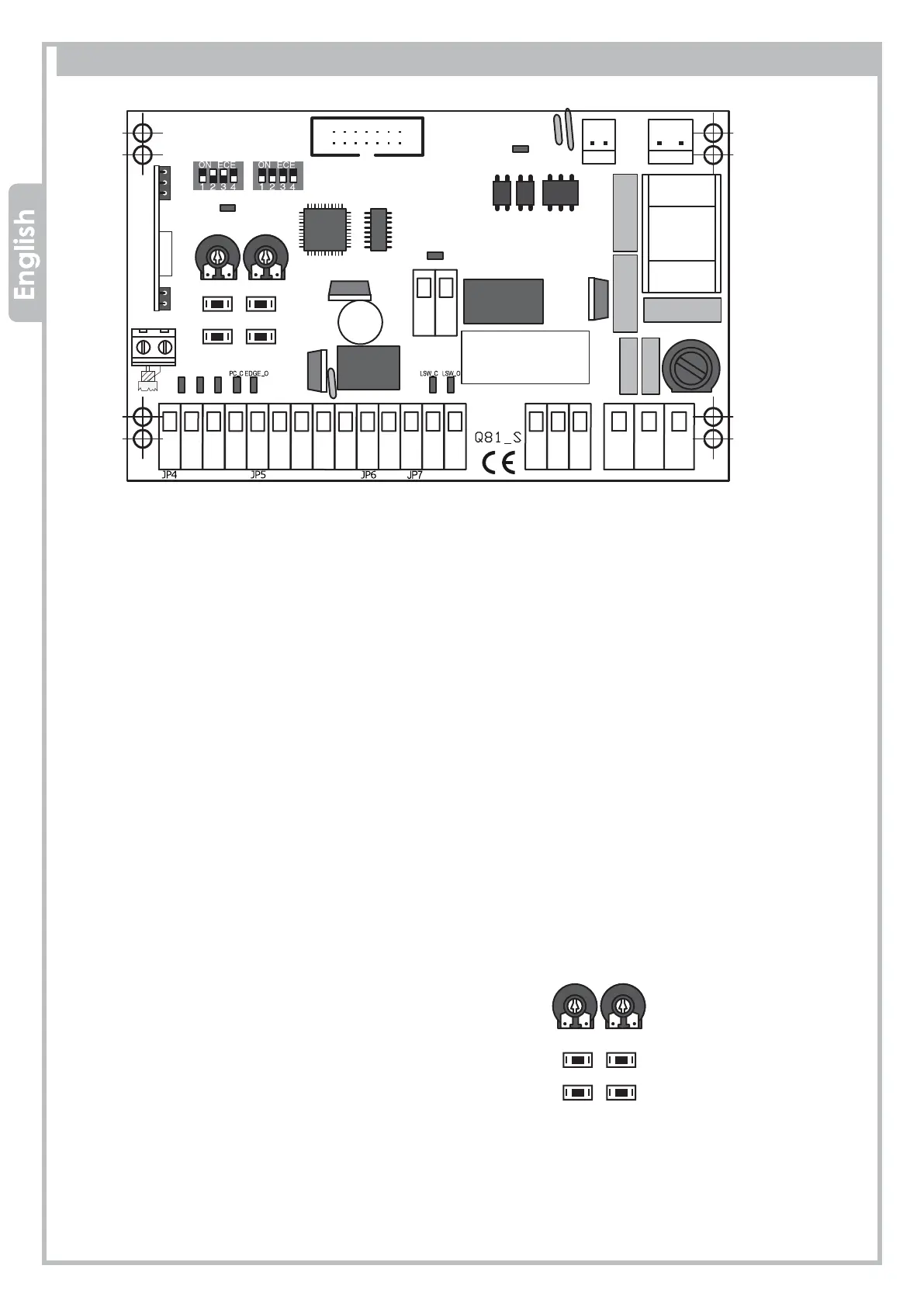

2. DESCRIPTION AND MAIN COMPONENTS
J1 = radio receiver
J5 = input second radio channel jack
F2 = line fuse 230V 5A
FR1 = self resettable fuse 24V 1,6A
FR2 = self resettable fuse 24V 0,6A
V1 = varistor secondary
K1/K3 = motor relé
K4 = flashing light relé
TR2 = filter
JP1 = GREEN TERMINAL - aerial connection
JP2 = Secondary MOLEX card 24V ac
JP3 = Primary MOLEX card 230V ac
JP4 = BLUE TERMINAL – command devices
JP5 = RED TERMINAL - line and photocells
JP6 = YELLOW TERMINAL – flashing light
JP7 = BLACK TERMINAL - limit switch
JP8 = ORANGE TERMINAL - motor
JP9 = GREEN TERMINAL – line 230V / earth
JP10 = GREEN TERMINAL – safety edge (resistive or mechanical type) only in CLOSING
WARNING LED
DL1 = PROGRAMMING
DL2 = THRUST MOTOR
DL3 = SAFETY EDGE in CLOSING
DL4 = START
DL5 = STOP
DL6 = PEDESTRIAN START
DL7 = PHOTOCELL IN CLOSING
DL8 = PHOTOCELL IN OPENING
DL9 = LIMIT SWITCH in CLOSING
DL10 = LIMIT SWITCH in OPENING
PROGRAMMING BUTTONS
