Euromatic Q81S - Motor Wiring

5
Il the motor is positioned on the left,
switch SW2 dip no.1 = ON
(the limit switch turns automatically.
No connections are needed)
 

JP8
Brown
Whit

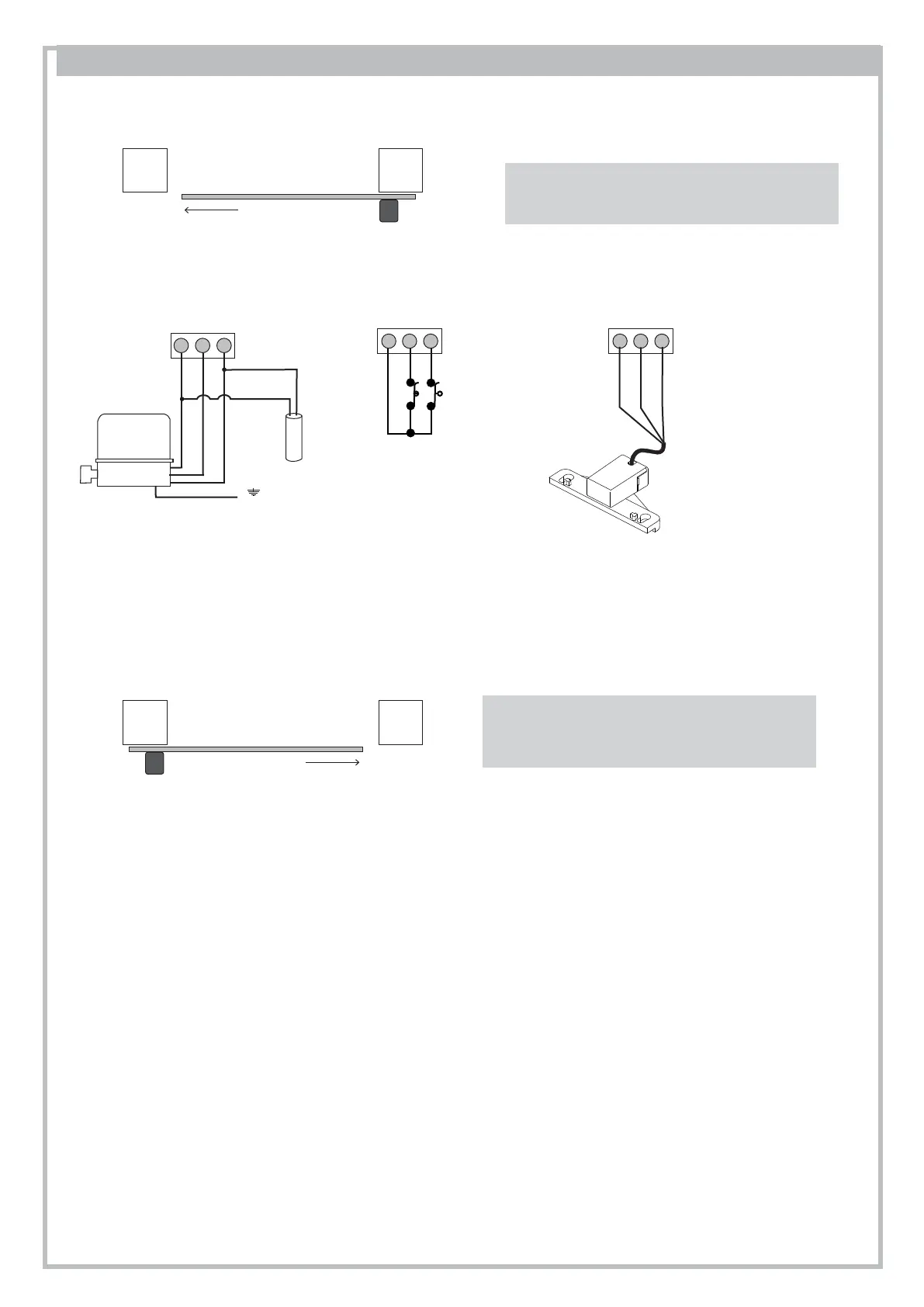

3.1 MOTORS wiring
Please check motor wirings according to the gate opening direction
Gate opening from left to RIGHT (viw from inside courtyard)
FCOPEN
NEUTRAL
FCCLOSING
Gate opening from right to LEFT (view from isnide property)
The control unit is pre-set for gate opening
from left to right (looking from inside the
courtyard as shown in the drawing).
OUTSIDE
INSIDE
OUTSIDE
INSIDE
Right
gear motor
Left
gear motor






3
4
JP7
BROWN
BLACK
BLUE - COMMON
MECHANICAL
LIMIT SWITCH
MAGNETIC
LIMIT SWITCH

3
4
JP7
BLACK
