Euromatic STILO - Wiring Installation Overview

4
B
C rx 4 x 0,50 mm²
C¹ tx 2 x 0,50 mm²
D
E
230V
mm²
mm²
2 x 0,50
2 x 0,50
A
a
b
e
d
c
c
a
a
c1
c1

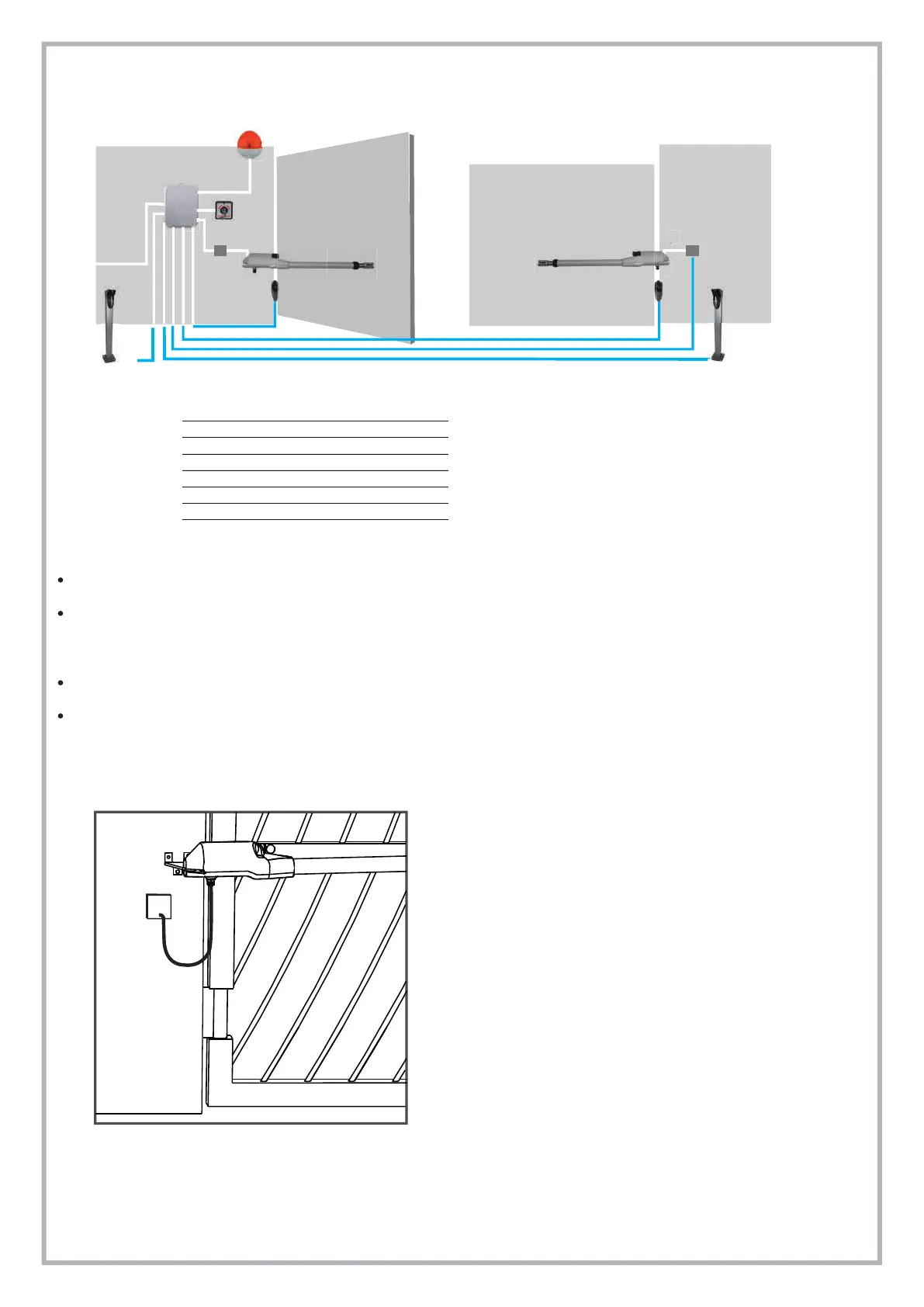

3.3 WIRING INSTALLATION OVERVIEW
N.B.: The number of tubes and cables
(not included in the kit) depends on the type of
the accessories employed
INNER VIEW
OUTER VIEW
Cut off the power before starting wiring
A circuit breaker should be fitted close to the gate (3 mm wires) to protect both the gate control panel and the house main fuse box. A 6A
automatic breaker or a 16A single phase breaker complete with fuses shall be suitable.
Make sure you have suitable tubing and conduits for the electrical cables: feed the motors, control panel and accessories separately, in order to
prevent interferences that may result in bad operation.
Fit the power cable keeping a curve as shown in picture B, in order to avoid water blackflow inside the operator. (pic. B)
(pic. A)
Ram 3 x 1,5 + T
Control panel 2 x 1,5 + T
Photocells
Photocells
Key switch
Flashing light
pic. B
