Evak DPC-10 - Wiring Diagrams and Button Functions; Wiring Diagrams

4.Button Function Introduction

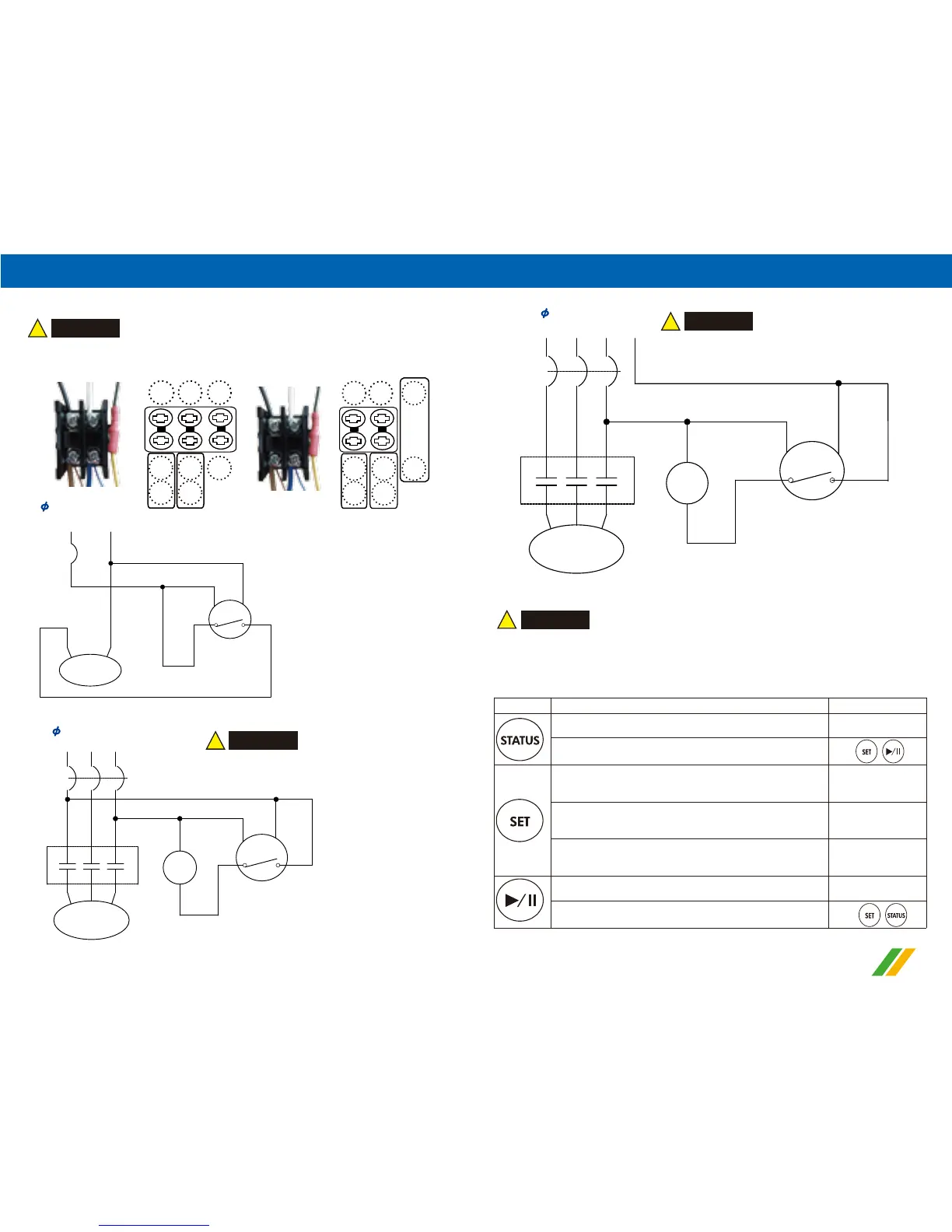

3.Wiring diagram
Note:
L,N: Power Supply
W1,U1: Motor Wire
Blue,Brown: Controller Power Supply
Yellow,White: Controller Relay
WARNING
Incorrect wiring could cause damage to the pressure controller,
confirm the color of the wires with the operation manual before wiring.
Button Icon Function
Browsing original pressure value.
Downward adjustment of the parameter value.
Pump start and stop operation.
Upward adjustment of the parameter value.
Possible with Button
Short press once:
Switch to Basic parameter setting.
Long press for 3 seconds:
Switch to Advance parameter setting.
After entering the parameter setting,short press once again:
Switch to next setting mode and enter the set value.
U1
Blue
N
Brown
L
Yellow
W1
Blue
L
W1
White
U1
Brown
N
Yellow
White
!
04
a. Single phase wiring connection
b. Three phase wiring connection-220V
c. Three phase wiring connection-380V
3 phase PUMP
AC 220V
M1
Coil
M1
DPC-10
Controller
White
Brown
Blue
Yellow
U V W
3 3W AC 220V
R S T
3 phase PUMP
M1
DPC-10
Controller
White
Brown
Blue
Yellow
U V W
3 4W AC 380V
R S T N
NFB
(MCCB)
AC 220V
M1
Coil
WARNING
!
If connecting to a pump driven by 3ph/380V pump (Please
AC 110V,220V
NFB
(MCCB)
1
1 phase PUMP
DPC-10
Controller
White
Brown
Blue
Yellow
NFB
(MCCB)
L N
If installing DPC-10 with a varistor, please connect varistor wire in parralled with
thin Brown and Blue wires of the DPC-10.
*
note the power voltage is not allowed over 400V.), the blue and yellow
wires of DPC-10 are forbidden connecting to R or S wire, otherwise the
DPC-10 controller will be burned out.
220V( <250V)
Note: If the voltage is over 250V, please add transformer by yourself.
WARNING
!
Any connection to the contactor, please add a
R.C capacitor (spark eliminator) to reduce the
possible electromagnetic interference.
WARNING
!
Any connection to the contactor, please add a
R.C capacitor (spark eliminator) to reduce the
possible electromagnetic interference.
