3 DIMENSIONS AND INSTALLATION
3.1 Dimensions of EVXV802 and EVXV812

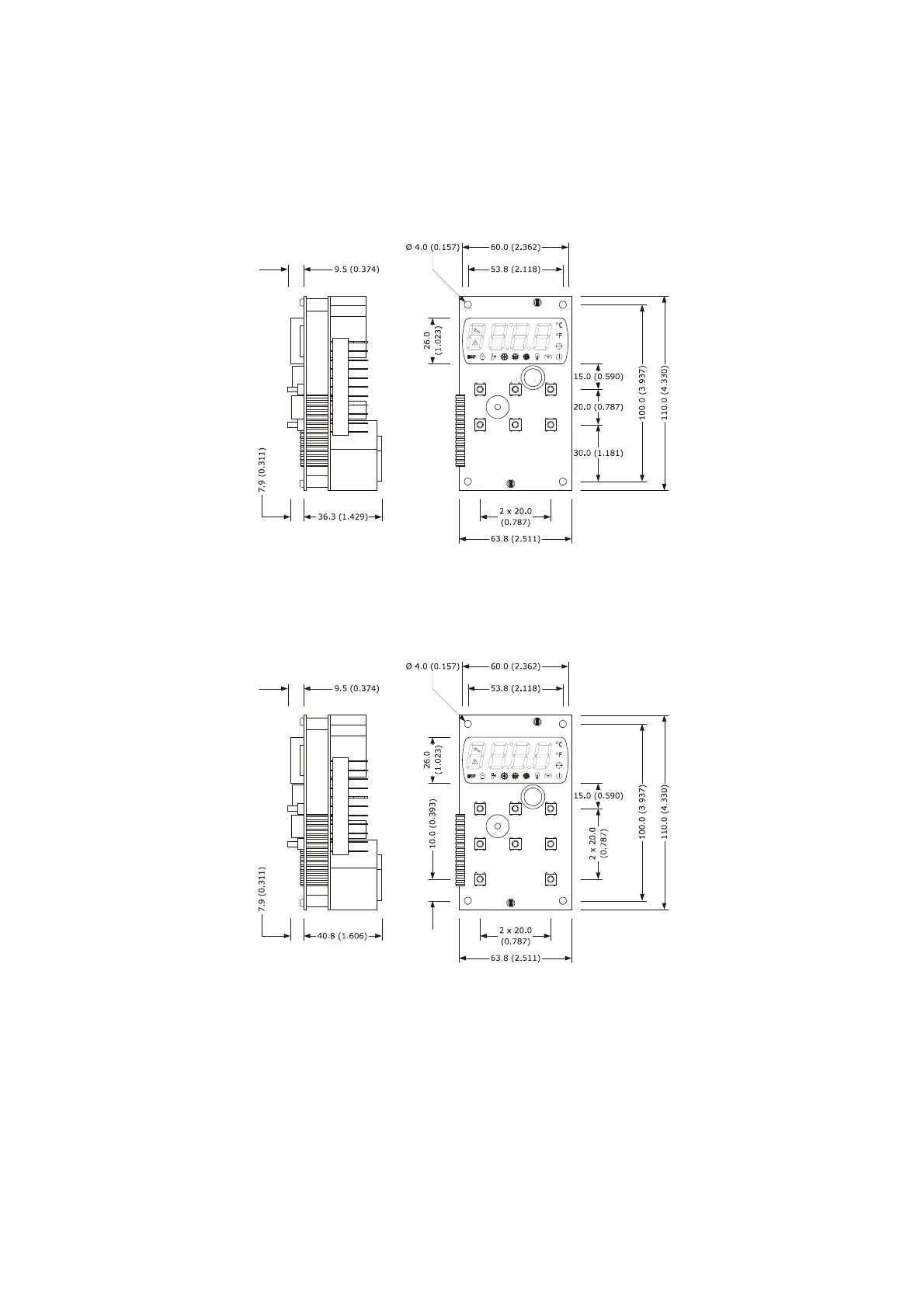

The following drawing illustrates EVXV802 and EVXV812 dimensions; these are expressed in mm (in).
3.2 Dimensions of EVXV805 and EVXV815
The following drawing illustrates EVXV805 and EVXV815 dimensions; these are expressed in mm (in).
