8

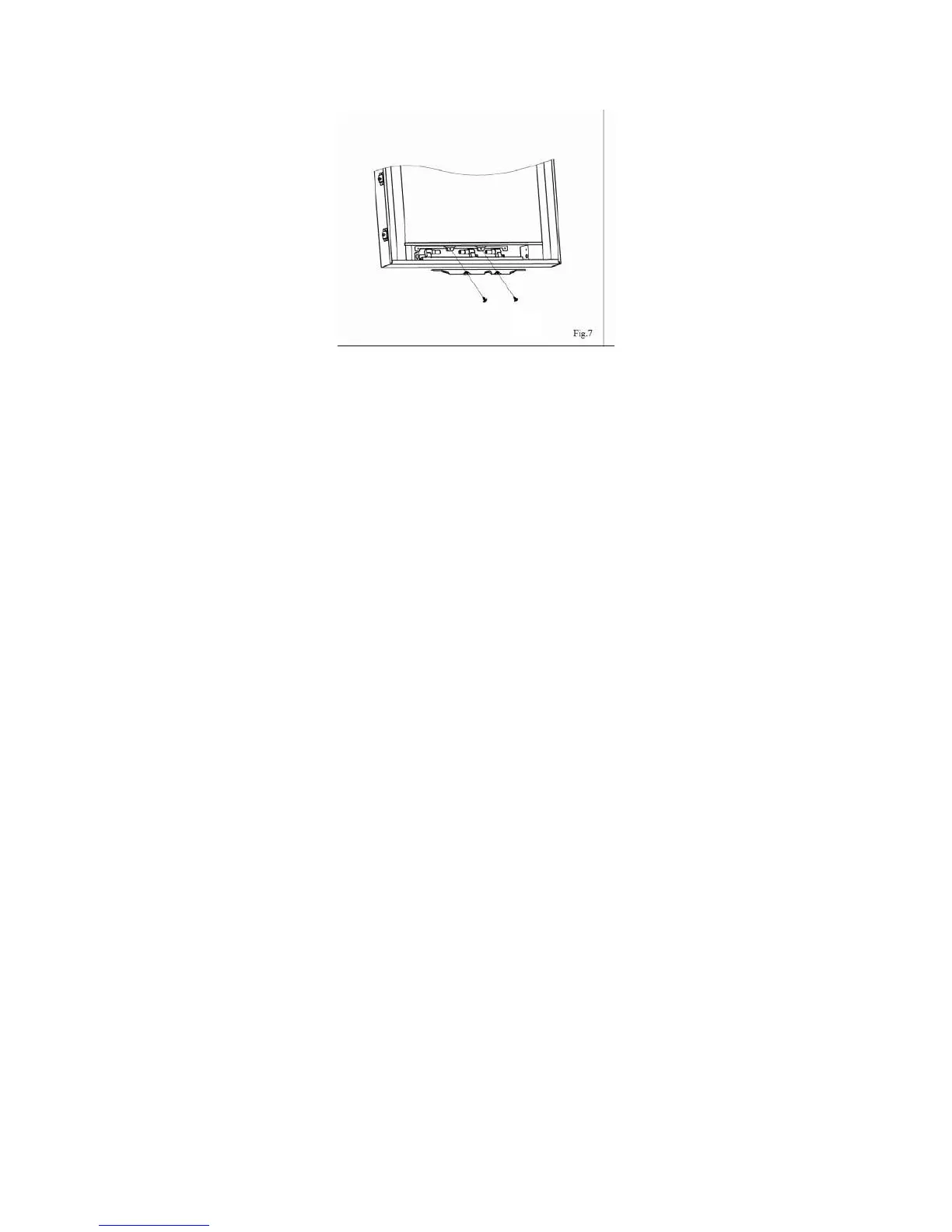

· Remove the light screen fixed with two screws-see Fig.7.
· Remove the defective bulb by pulling it out of the holder.
· Replace with a 40W G9 halogen bulb. Do not touch the bulb with bare hands, and bulb is
replaced appropriately.
· Refit the light screen.
· Refit the rotisserie making sure that the rubber grommet is carefully pushed into the slotted
hole on the axial bracket.
· Refit the lamp cover.
· Lift the fireplace back onto the wall and replace the glass front by aligning lugs on either side
of the fire.
Cleaning & Maintenance
· Disconnect from the power supply before attempting any maintenance or cleaning, to reduce
the risk of fire, electric shock to persons or damage to property
· Warning - Always disconnect from the power supply before cleaning fireplace
· For general cleaning use a soft clean duster-never use abrasive cleaners. The glass viewing
screen should be cleaned carefully with a soft cloth. DO NOT use proprietary glass cleaners.
Technical Specification
· Supply: 110-120V~ 60Hz
· Rated power: 1500W
· Lighting: Max 40W G9 halogen bulb (3 bulbs)
