Lap Belt Only (Rear-Facing and Forward-Facing)
Installing Lap Belt
13. For REAR-FACING installation,
check recline angle using Level
Indicator. Recline Ball should be in
correct zone for child size:
• White Zone: 1.9 - 9 kg
(4 - 20 lbs)
• Black Zone: 9.1 - 18 kg
(20 - 40 lbs)
14. For FORWARD-FACING
installation, Child Restraint should
be fully upright.
1.9 - 9kg (4 - 20 lbs)
Lower Connectors/UAS
Lap/Shoulder Belt Lap Belt
Always use tether strap in rear-facing installation.
Ball must be in proper
zone for child size:
Vehicle MUST be on
level ground.
25809042 10/20
9.1 - 18kg (20 - 40 lbs)
Do not install by
this method for a
child weighing
more than
15.9 kg
(35 lbs).

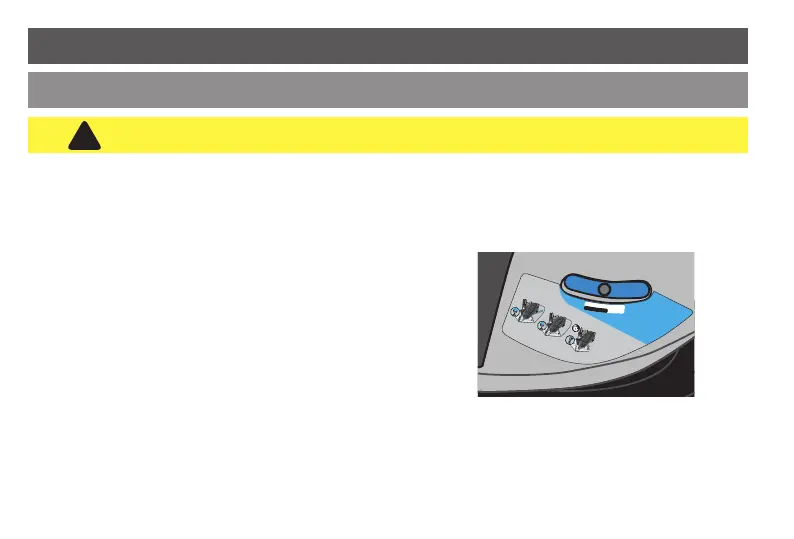

LEVEL INDICATOR
REAR-FACING ONLY
1.9 - 18 kg (4 - 40 lbs)
44 - 101 cm (17 - 40 in)
REAR-FACING
!
WARNING! DEATH or SERIOUS INJURY can occur.
Failure to properly recline the child restraint could increase the child’s risk of
death or serious injury. Infants may have difculty breathing when in an upright
seated position. Make sure they recline enough for their head to lie back
comfortably and safely.
