58
Lap/Shoulder Belt (Rear-Facing and Forward-Facing)
Installing Lap/Shoulder Belt (Preferred Method)

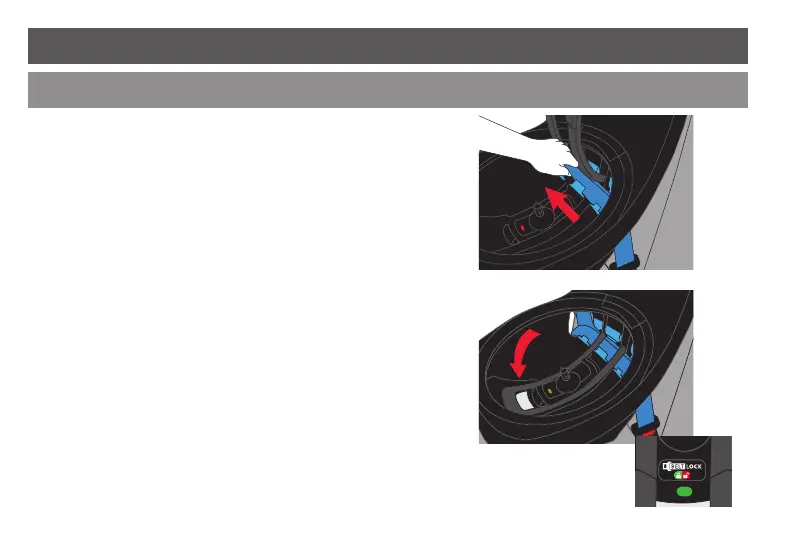

7. Secure lap portion of belt under tabs
in blue belt path guide, then pull up
on shoulder belt from center of base
to remove slack, making sure not to
overtighten.
8. Secure shoulder portion of belt
under tabs in blue belt path guide
and apply pressure to fully close the
LockStrong. The Belt Lock indicator
will turn GREEN when fully closed.
NOTE: If belt tensioner does not
fully close (Belt Lock indicator still
RED), open the LockStrong and try
loosening the lap/shoulder belt strap
slightly.
2
Tighten
Aprete
1
4
Instalación con conectores inferiores
Lower Connector Installation
Open
Abre
Close
Cierre
Attach
Acople
25809061
10/20
3
Vehicle Belt Installation
Instalación con cinturón del vehículo
Open
Abre
Route
Ruta
Close
and lock
3
Or
O
4
2
1
Tighten
lap belt
Cinturón para
regazo
Tighten lap/
shoulder belt
Apreta cinturón
para regazo y
hombro
25809059 10/20
Cierre y
bloquear
