2 3
28 - 33 in.
(71.1 - 83.8 cm)
without Frame Extensions
33 - 38.25 in.
(83.8 - 97.1 cm)
with Short Frame Extension
38.25 - 43.50 in.
(97.1 - 110.5 cm)
with Long Frame Extension
43.50 - 48 in.
(110.5 - 121.9 cm)
with Short and Long
Frame Extensions

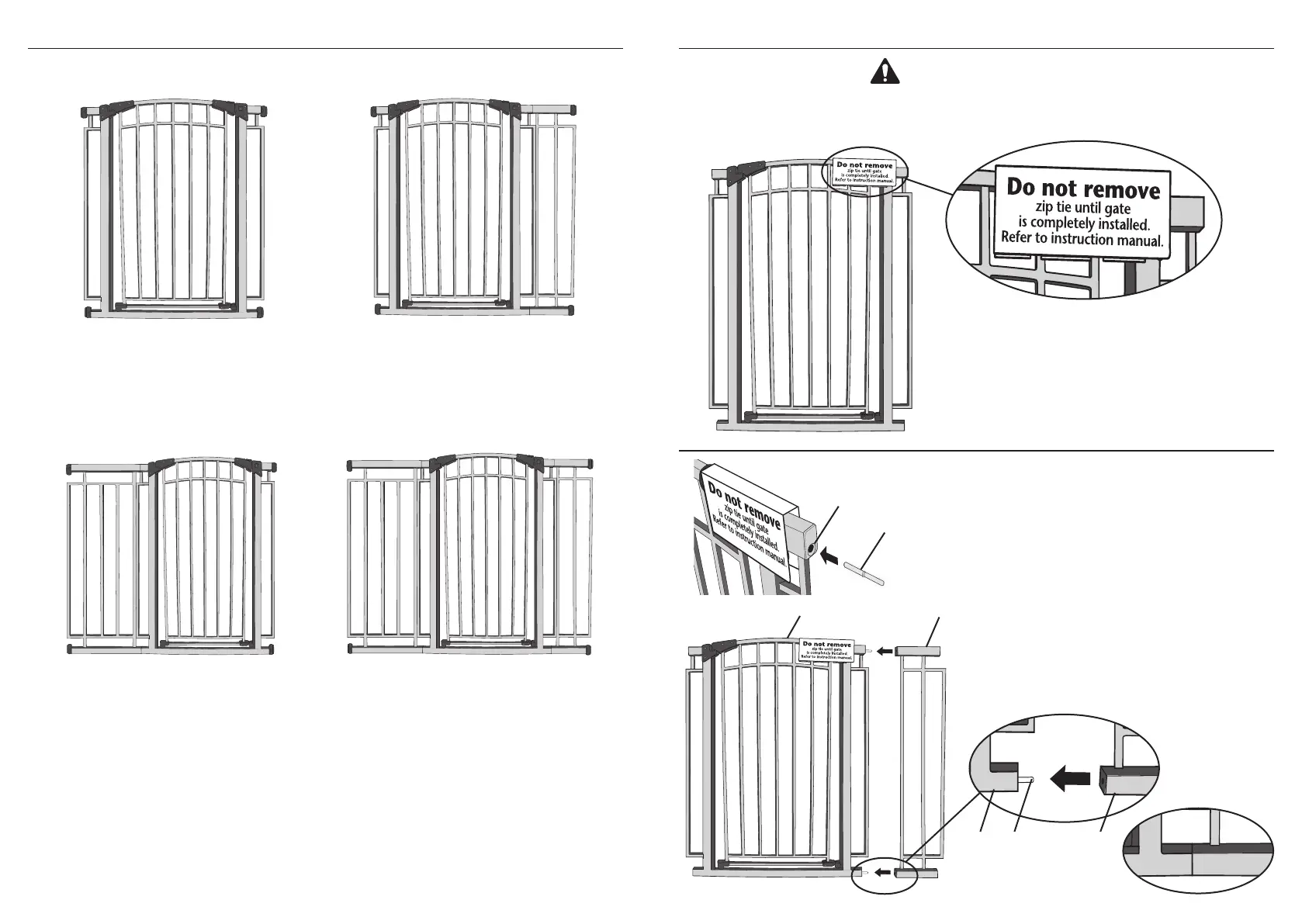

Proper Set-Up Configurations
DO NOT remove cardboard cover (or plastic tie
beneath it) at this time, or serious injury may result.
Gate Assembly
EA B
2. If frame extension is required, insert
small extension pins
E
into the upper
and lower openings in the gate frame
A
, as shown. Push the appropriate
frame extension
B
onto the extension
pins
E
. Make sure the plastic caps
on the gate frame
A
and the gate
extension
B
touch each other. The
plastic caps MUST touch each other
to securely install the frame extension.
NOTE: Frame extension can be
installed on either side of gate.
1. Measure and record the width of the
opening where you will use the gate.
If the opening is wider than 33 in.
(83.8 cm), refer to page 2 for Proper
Set-Up Configurations.
NOTE: If frame extension is not
required, go to Step 3.
WARNING
A
E
B
A
1 2
3 4
To Next Page
