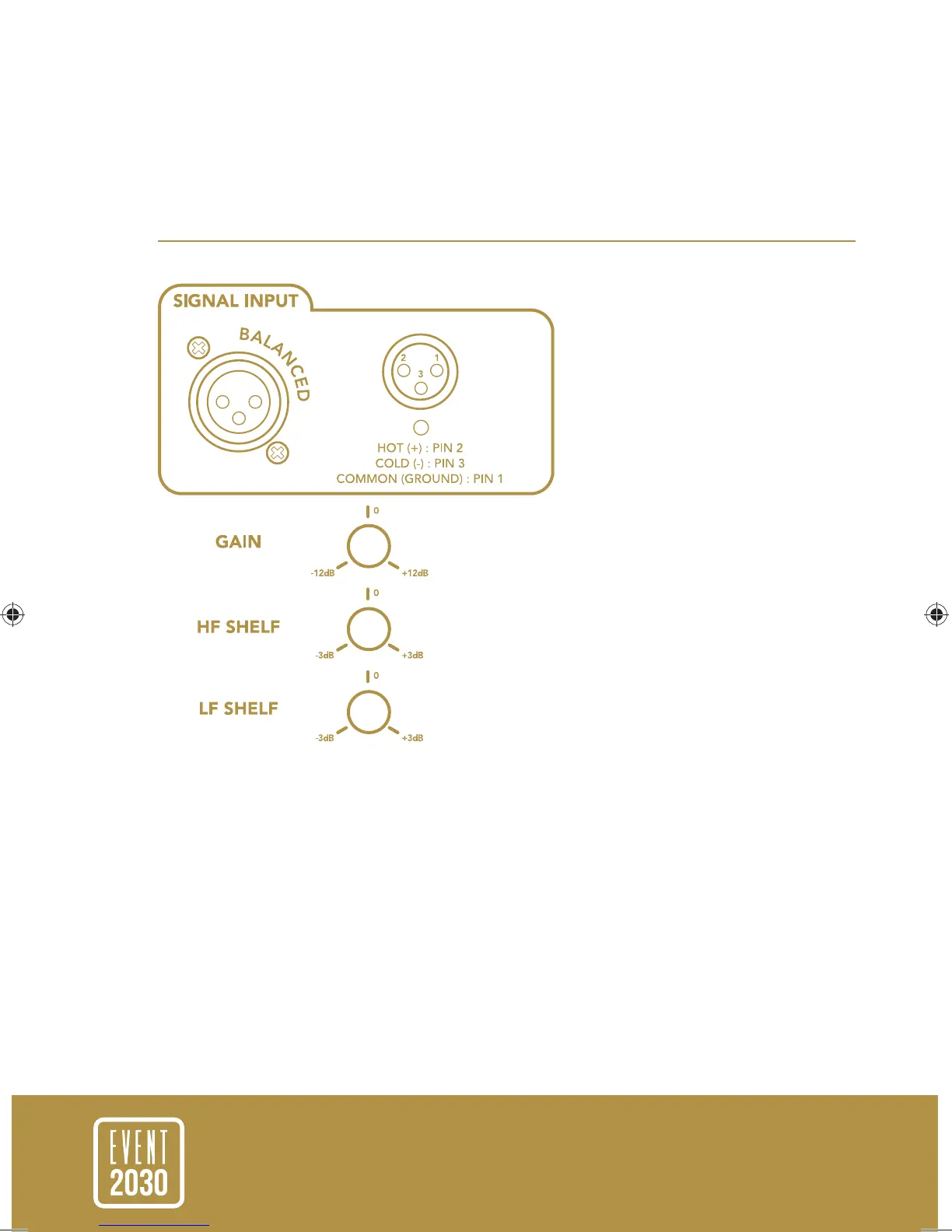

rear panel controls
SIGNAL INPUT
The 2030 requires the input of an
industry standard XLR style cannon jack.
GAIN
Allows for modifi cation of the input
sensitivity, from -12dB to +12dB in
regards to the reference sensitivity of
0.775v RMS. The default setting is 0.
HF SHELF
Allows for the implementation of a
shelving filter at 2kHz. The boost and cut
is variable between +/– 3dB. The default
setting is 0 - filter not engaged.
LF SHELF
Allows for the implementation of a
shelving filter at 200Hz. The boost and
cut is variable between +/– 3dB. The
default setting is 0 - filter not engaged.
