Line Lvl Indicators
LED grid indicates which
Inputs or Outputs are set
for line level signals.

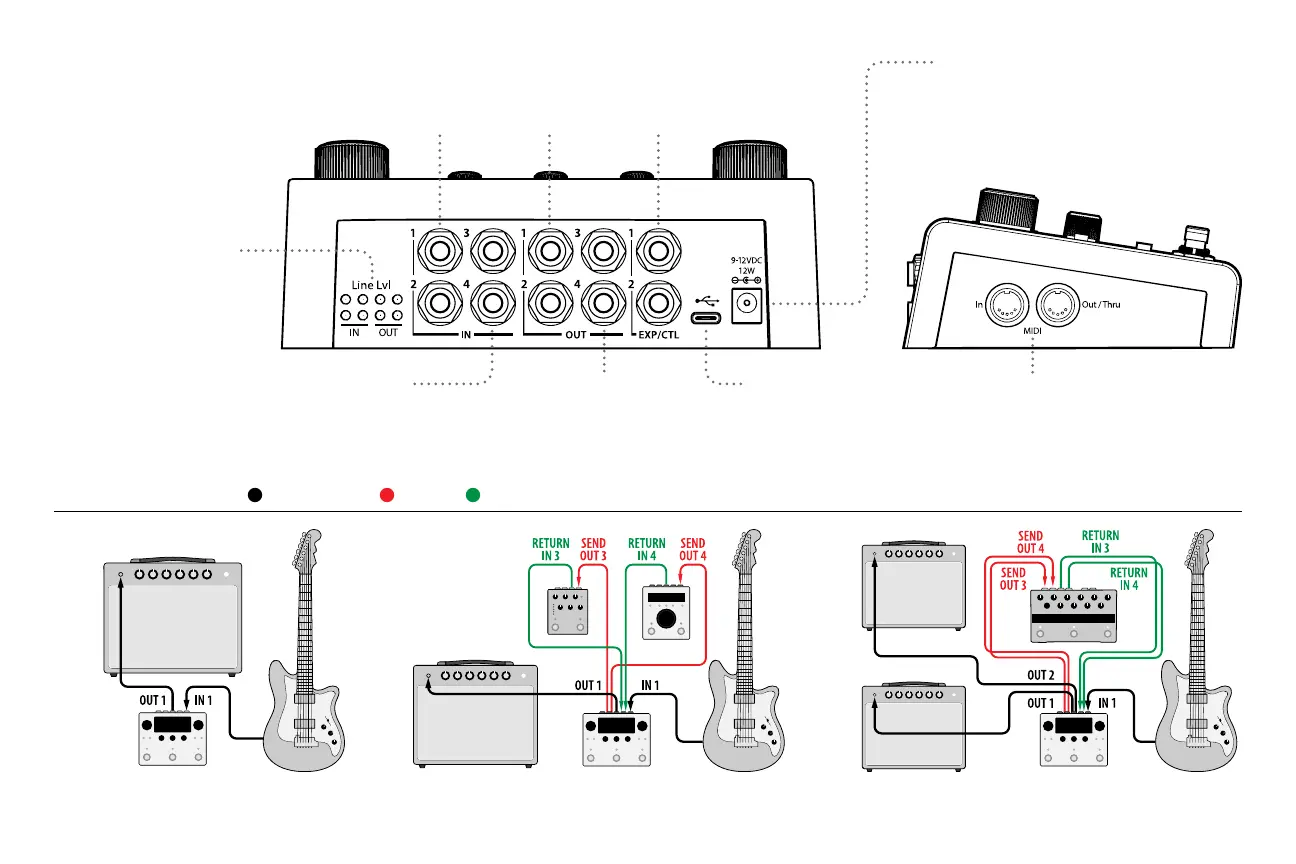

Simple Eects Pedal Setup
Exp/Ctl 1/2
Inputs for expression
pedals or aux switches.
Inputs 3/4
External Insert return,
or Input for Dual Path 2.
Outputs 3/4
External Insert send, or
Output for Dual Path 2.
USB-C
Connect to your
computer for control,
updates and MIDI.
Power
Power requirement is 9–12VDC, 12W,
center positive (+), 5.5mm/2.5mm jack.
Inputs 1/2
Main mono or
stereo Inputs.
Outputs 1/2
Main mono or
stereo Outputs.
MIDI In and Out/Thru
Receive, transmit and pass through
MIDI program changes, control
changes and clock.
I/O
Two Mono Inserts One Stereo Insert
2
INSERT ROUTING SendMain Path Return
