Eventide H90 Harmonizer - Page 5

Amplier Pre/Post (Mono)
Guitar and Vocals (with MixingLink®)
Dual Inserts into DAW
Insert Routing is enabled by default. Global Routing can be switched
between Insert and Dual in Global settings on the System Menu (see p. 12).
H90 has a complete set of alternate Program Lists with Dual Routing.
NOTE: When using H90 with four cable method or pre/post in an amp
eects loop, Dual Routing is strongly recommend.
3
Insert Routing in Series (p. 8)
A BIN 1/2 OUT 1/2
I/O 3
1
I/O 4
2

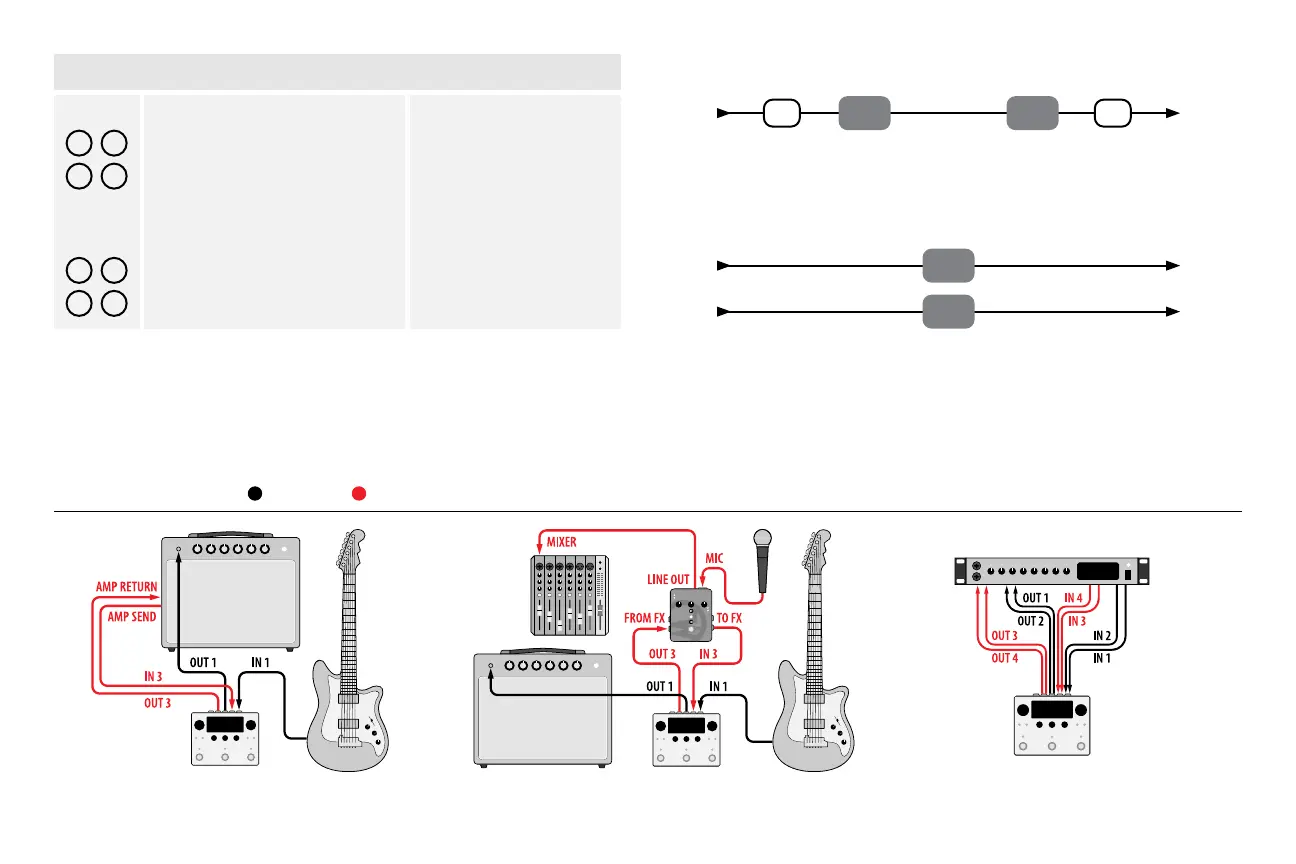

Dual Routing in Pre/Post (p. 9)
Path 2Path 1
I/O
IN 1
IN 2
IN 3
IN 4
OUT 1
OUT 2
OUT 3
OUT 4
Dual
Path 1 Input Left (Mono)
Path 1 Input Right
Path 2 Input Left (Mono)
Path 2 Input Right
Path 1 Output Left (Mono)
Path 1 Output Right
Path 2 Output Left (Mono)
Path 2 Output Right
Insert (Default)
Main Input Left (Mono)
Main Input Right
Insert 1 Return
Insert 2 Return
Main Output Left (Mono)
Main Output Right
Insert 1 Send
Insert 2 Send
Global I/O Conguration
1
2
3
4
IN
1
2
3
4
OUT
A
B
IN 1/2 OUT 1/2
IN 3/4 OUT 3/4
DUAL ROUTING
