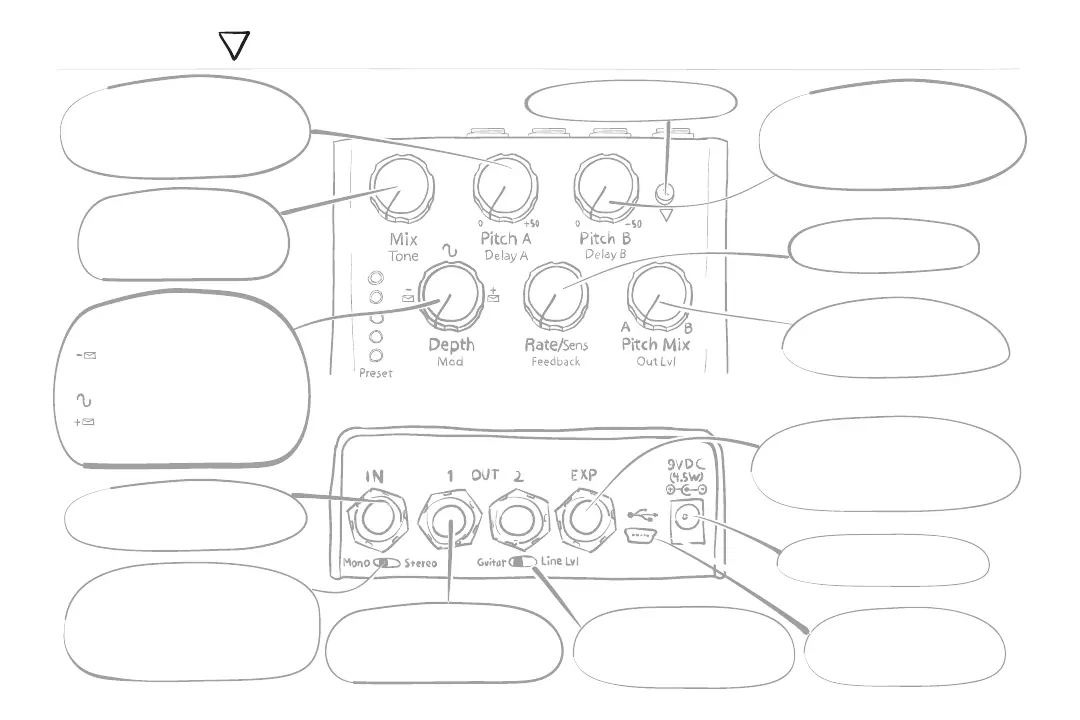

Knob Functions – Secondary Parameters
Pitch A Delay
Time Mode 0-3 secs
Tempo Mode 0-6 secs
Center Flat
CW High Boost
CCW Low Boost
Modulation Type Select
Increased volume
decreases Pitch amounts
LFO modulates Pitches
Increased volume
increases Pitch amounts
Rear Panel
Delay A
Feedback
Feedback 0-100%
Tone
Power
9VDC center-negative
Mono/Stereo Switch
Left = Mono (TS plug)
Right = Stereo (TRS plug)
I
n Stereo, Tip is OUT1, Ring is OUT2
I/O Level Switch
Left - Guitar
Right - Line/Effects Loop
IN
TS (mono) or TRS (stereo)
Delay B
Mod
EXP
Connect Expression Pedal,
Auxiliary Switches or TRS MIDI
(See System Setup)
Mini USB
Software updates
& MIDI over USB
Out Lvl
Center for unity gain
Boost/Cut output level
Press button to toggle
Secondary/Primary parameters
OUT1 & OUT2
In Mono, both outputs have
the same dry signal
Pitch B Delay
Time Mode 0-3 secs
Tempo Mode 0-6 secs
