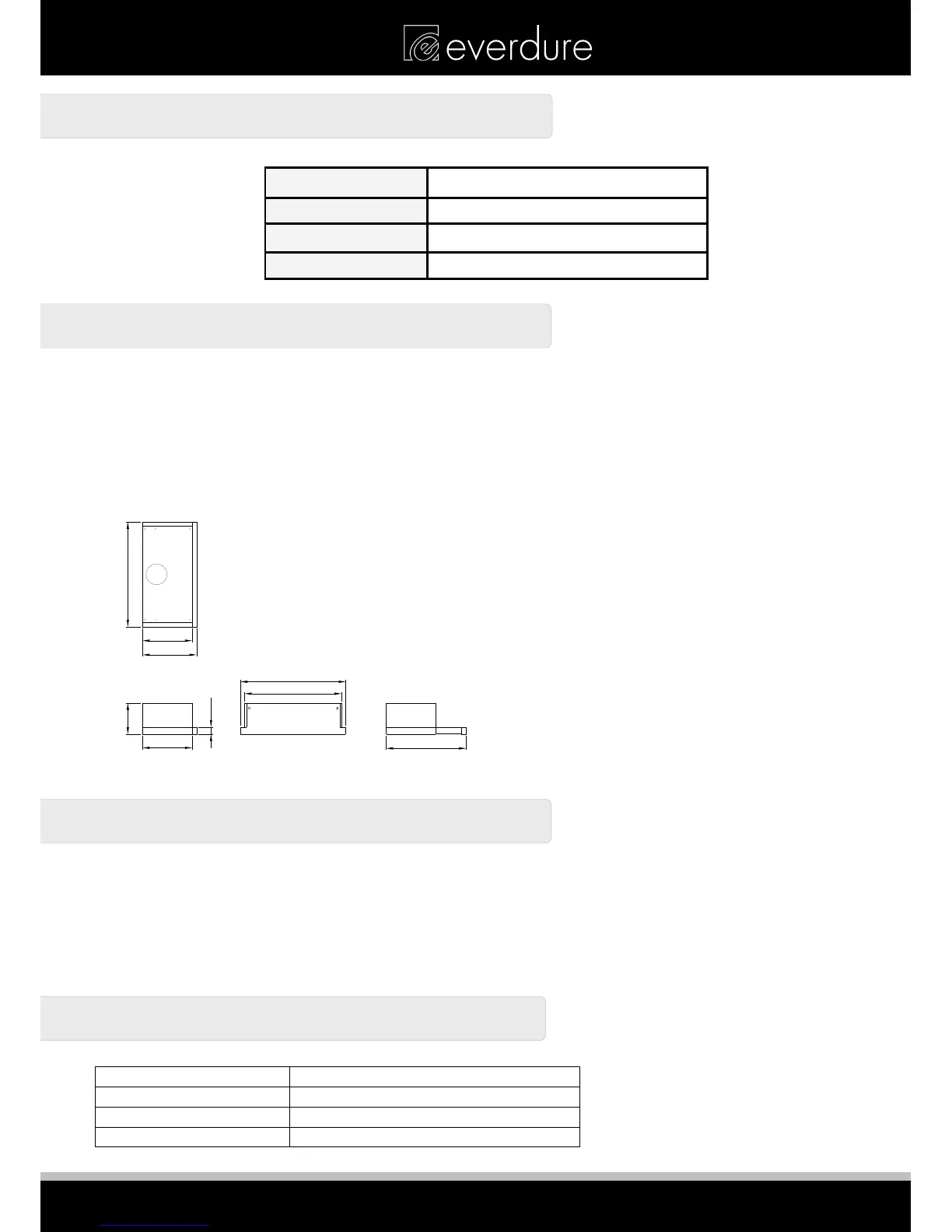

APPLIANCE DETAILS
Voltage: 220-240V
Frequency: 50Hz
Lamp Max: 2x28W E14 Halogen
Rated Input Power: 256W
GENERAL INFORMATION
Before installing and operating the range hood, carefully read the following important information regarding
installation safety and maintenance. Keep this information booklet accessible for further consultations.
The appliance has been designed to exhaust cooking fumes through the hole in the top of the unit only. The
fumes can be exhausted externally using optional ducting, or it may be used to re-circulate the air back into
the room (charcoal filters are required for re-circulating installation).
Before installation, please ensure that the following have been supplied and that the tools listed below are
readily available.
TOP VIEW
SIDE VIEW
282
178
40
600
282
308
600
EXTENDED VIEW
455
REAR VIEW
552
WHAT IS SUPPLIED
Range hood (including one way valve for ducting) x 1
Installation kit (long screws x 4, short screws x 2, long bolts x 6, short bolts x 2, washers x 6, plastic plugs x 4,
small brackets x 2, long bracket x 1) x 1
Instruction booklet x 1
Note: Flexible tubing and charcoal filters are NOT supplied with the unit.
WHAT MAY BE NEEDED FOR INSTALLATION
Electric Drill Duct Tape
Tape Measure Jig Saw
Spirit Level Ladder
Screwdrivers Torch (If natural lighting is minimal)
