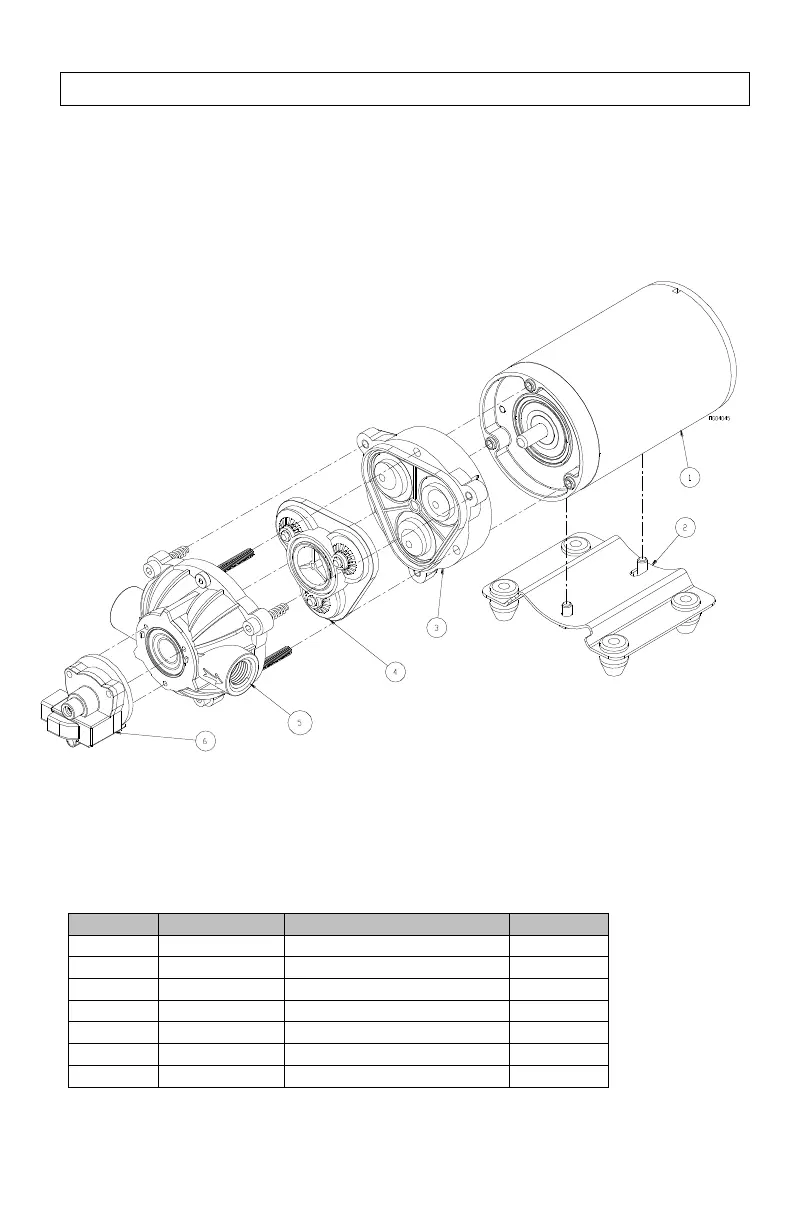

Exploded View
–
EF2200 Rev F
22
Item
Part#
Description
Qty
1
EF787378
Motor
1
2
EF780254
Base plate assembly
1
3
EF784062
Diaphragm assembly
1
4
EF778279
Valve plate assembly
1
5
EF787161
Pump head assembly
1
6
EF785294
Pressure switch assembly
1
N/A
EF787381
Replacement Fuse
1
21
23
