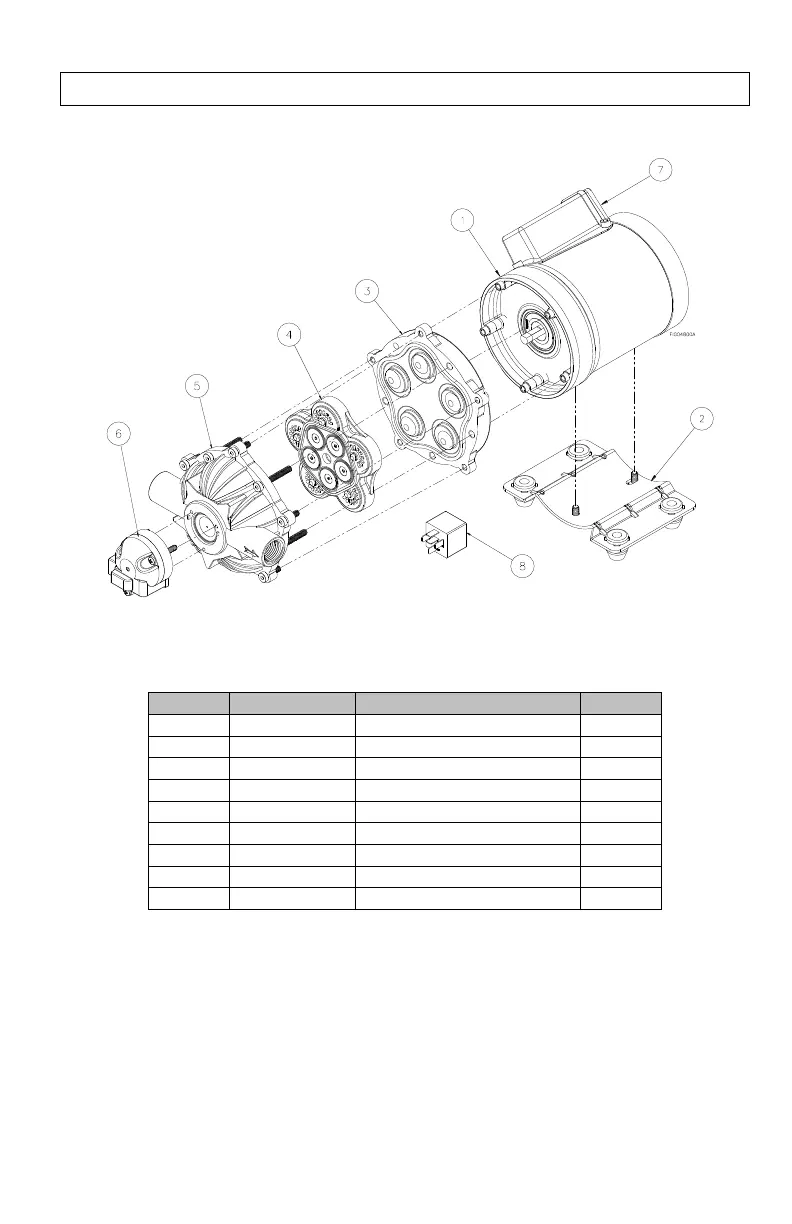

Exploded View – EF7000
23
Item
Part#
Description
Qty
1
EF790107
Motor with fuse
1
2
EF790109
Base plate assembly
1
3
EF788019
Diaphragm assembly
1
4
EF788015
Valve plate assembly
1
5
EF787165
Pump head assembly
1
6
EF788690
Pressure switch assembly
1
7
EF789252
Relay cover
1
8
EF788929
Relay (inside relay cover)
1
N/A
EF791419
Replacement Fuse
1
