CHAPTER 2 INSTALLATION

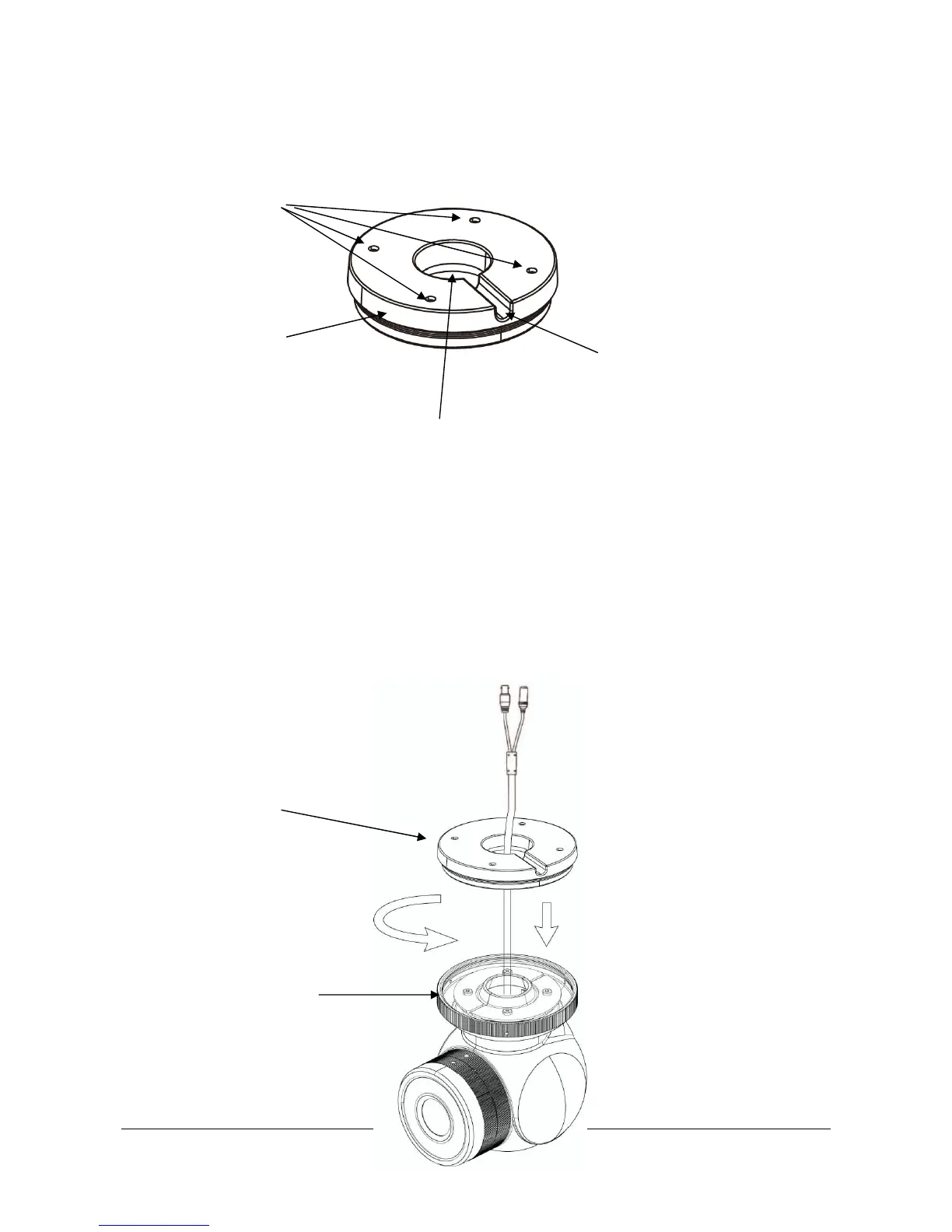

Power/Video cable hole
Camera base
Screws
A,B,C,D
Outlet hole
2.1.2 Mounting
1. Remove the camera base from the fixing ring by turning the ring it counter clockwise.
2. Fix the camera base to the ceiling or wall by using the 4 screws provided.
3. Extend the cables to be connected to power and video through the ceiling or wall.
4. Reattach the camera to the base by turning the fixing ring clockwise.
11
Camera Base
Fixing Ring
