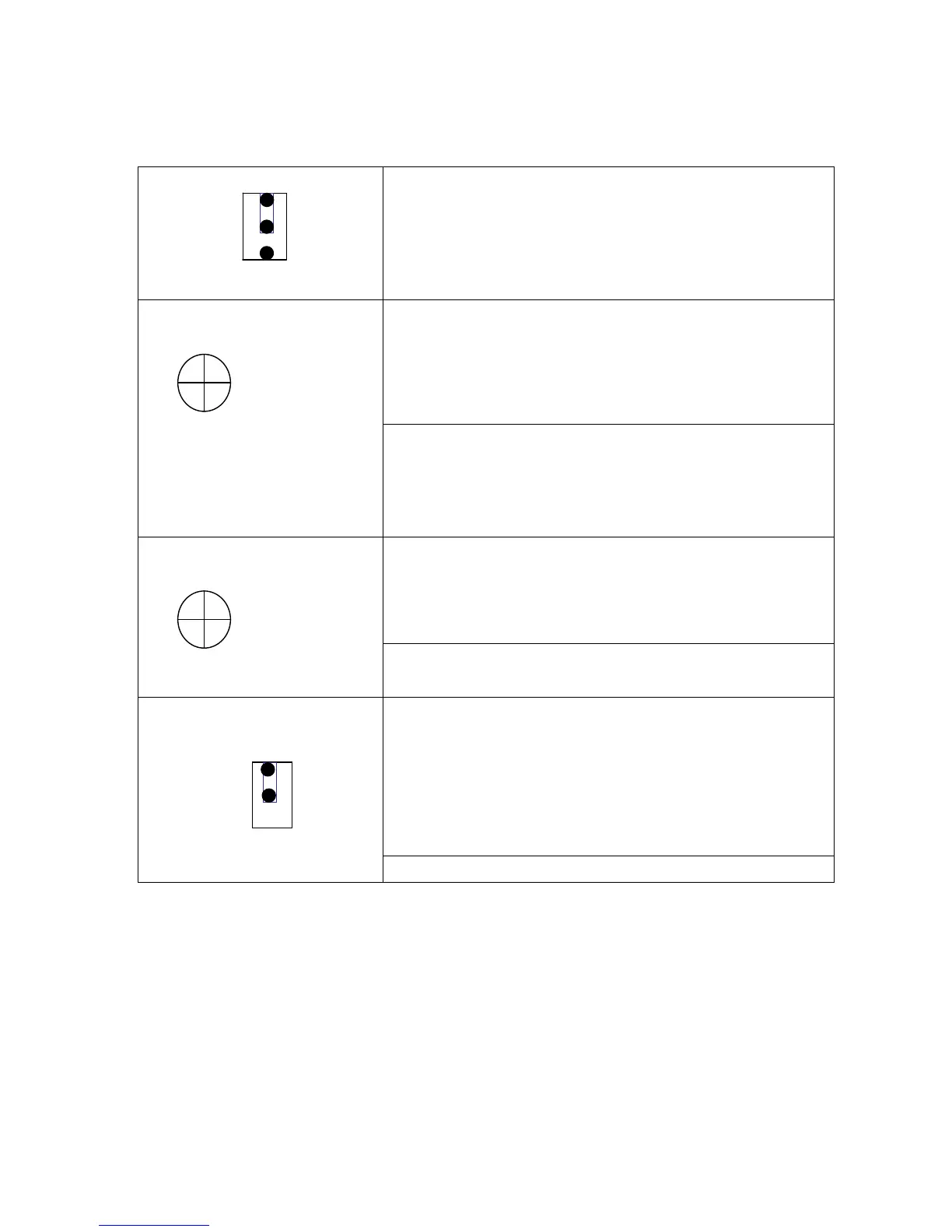

J1
(3 PINS: Top, Center, Bottom)
A) Top+Center w/black jumper:- testing mode: Light
Blinking
B) Center+Low w/black jumper: Normal detection mode: No
light blinking while detecting
1. To raise sensitivity turn clockwise
2. To lower sensitivity turn counter clockwise
2. Sensitivity Adjustment:
MAX
MIN
VR1
Detection range:
100。Wide angle/58 beams in 3
levels/Maximum coverage area:
35'x35'
Note: While adjusting you need to position LED selector as
indicated in (A)
To determine the time period of N.C/N.O relay to the alarm
panel/device
A) Max time: Turn counter clockwise
B) Min time: Turn clockwise
3. Dwell Time Adjustment:
MIN MAX
VR2
Adjustable from 2 to 40 sec
Top + Center pins of "J4"must be selected to adjust the time
setting.
A) Top + Center w/black jumper: Operate with "VR2" to
adjust time. (Sets the relay output to the alarm system,
DVR or other accessory according to individual
preference or application.
B) Center + Bottom w/black jumper: Relay output set for a
fixed 2 seconds.
4. External Device Control:
(N.O or N.C)
(3 PINS: Top, Center, Bottom)
Note: N.C/N.O relay output current: 2A24VDC, 2A 24VAC
