- 12 -

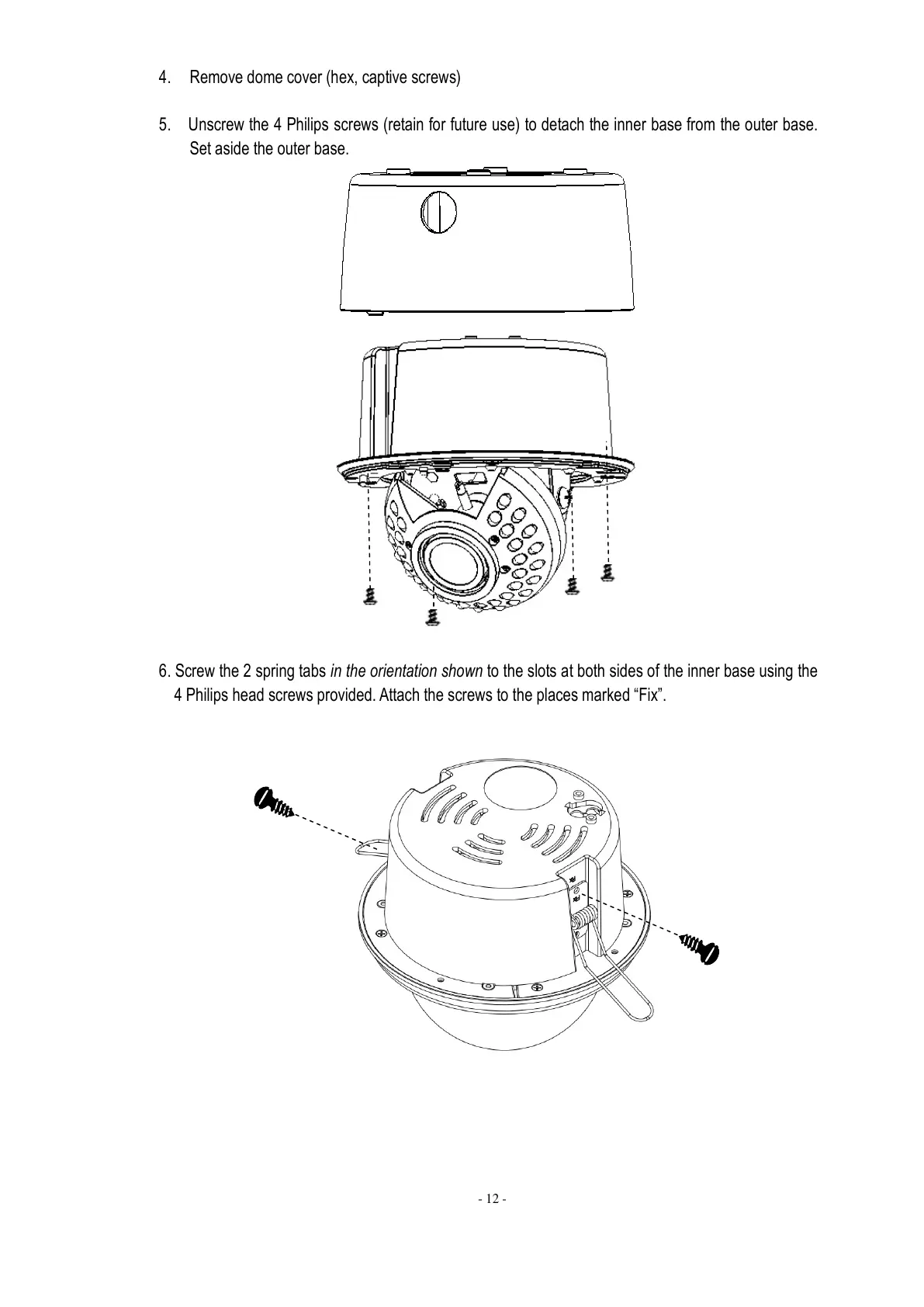

4. Remove dome cover (hex, captive screws)
5. Unscrew the 4 Philips screws (retain for future use) to detach the inner base from the outer base.
Set aside the outer base.
6. Screw the 2 spring tabs in the orientation shown to the slots at both sides of the inner base using the
4 Philips head screws provided. Attach the screws to the places marked “Fix”.
